[產品資訊] LCOS Microdisplays

2022 年 5 月 14 日

LCOS (Liquid Crystal on Silicon) is a reflective microdisplay technology based on a silicon backplane. Using standard CMOS processes, microdisplays with extremely small pixels, high fill factor (pixel aperture ratio) and low fabrication costs can be realized.

LCOS micodisplays in consumer projection products typically have lifetimes >20,000 hours at operating temperatures of +10°C to + 70°C for the visible waveband (420 – 700 nm). HOLOEYE offers monochromatic and color field sequential microdisplays. For single panel color projection a color field sequential (CFS) display addresses three monochromatic images corresponding to the primary colors (RGB) in a repetitive sequence and is illuminated by a triggered light source.

Applications

  • Industrial Projection (Fringe/Pattern Projection – Metrology, 3D-Sensor, Rapid Prototyping, Lithography)
  • Industrial Imaging (Data-Displays, Medical, Simulation)
  • HUDs and HMDs in automotive and airborne
  • High resolution NTE/EVF systems
  • AR, VR applications
  • SLMs for R&D and phase applications

LCOS Microdisplays, Drive ASICs and Services offered by HOLOEYE:

HOLOEYE offers drive ASICs and standard drive board solutions for evaluation for several mycrodisplay types. HOLOEYE also offers customized development of drive electronics, flex cables and display packages. HOLOEYE specializes in custom designs using LCOS to meet the requirements of industrial customers. We offer design, prototyping and manufacturing services.

  • Custom microdisplays (LC design and packaging)
  • Drive board design, firmware programming, drive sequence programming
  • Prototyping and mechanical assembly
  • Management of development projects
  • Product qualification for speciality markets (e.g. medical, avionics, telecommunication)
  • Application based test systems
  • Secure supply for long life products (medical, telecommunication, avionics)
  • LCOS based optics design for imaging and non-imaging applications

HED 6001

ProductHED-6001 LCOS Microdisplay (1920 x 1080 Pixel) – 0.7″ – Monochrome
Display TypeReflective LCOS
Resolution1920 x 1080 (full HD)
Display ModeVAN normally black, nematic
Device Diagonal0.7”
Active Area15.36 x 8.64 mm
Aperture Ratio / Fill Factor93%
Pixel Pitch8.0 μm
Dynamic Range8 bit grey level
Input Frame Rate60 Hz monochrome
Contrast Ratio>1000:1*
Reflectance73% (@ 633 nm) / 78% (@ 1064 nm)
Operating Temperature+10°C to +70°C
Lifetime (RPTV Application)20,000 hours
Recommended Waveband420 – 700 nm / 650 – 1100 nm
*TN LCOS devices show a contrast in CFS mode >1000:1 using compensators like trim retarders or QWP´s, whereas in monochrome applications the sequential contrast could be above 3000:1, even higher with VAN-type LCOS in normally black mode also with compensator optics.

HEO 6001 Developer Kit

We currently offer 2 versions of hte HEO 6001 microdisplay. A version vor the visible range and a version for the near infrared up to 1100 nm. For both versions developer kits are availalbe including the display, a standard driveboard and all necessary accessories to run the display for testing and evaluation.

The kit is highly programmable and allows a tailored configuration according the specific requirements. The driveboard uses an HDMI interface for addressing images and an USB connection for advanced calibrations. Via the USB connection (UART USB slot) the user can perform various display adjustments like gamma correction, geometrical settings and different sequences can be loaded to the driver. Besides this the driver features a trigger sync output to synchronize the device with external devices.The driverboard also features a dual-core ARM® Cortex™-A9 processor. This enables the user to program additional functionality which is directly processed on the driver (e.g. a slideshow from images which are loaded from USB flash (via OTG USB slot) or from internal memory). The dual-core system runs an embedded Linux™ SMP operating system and includes a library which provides full control and supervision of the display and driver itself.The driverboard provides access through Serial and Ethernet-over-USB2 (RNDIS) interfaces and can be programmed using standard Ubuntu™ cross compile GCC toolchain.

HEO 6001 Developer Kit – Deliverables
Full HD amplitude display incl. flex cable
Driver board
12 V power supply + cable
HDMI-cable
USB-cable
Magnetic display mount
USB flash drive with software and documentation

Driveboard

HED 2220

ProductHED-2220 LCOS Microdisplay – 0.39″ Color Field Sequential
Display TypeReflective LCOS
Resolution1920 x 1080 (HD)
Display ModeTN, Normally White
Device Diagonal0.39”
Active Area8.64 mm x 4.86 mm
Aperture Ratio / Fill Factor91%
Pixel Pitch4.5 μm
Dynamic Range8 Bit per color (using Dithering)
Input Frame Rate60 Hz
Color Field Rate360 Hz -six color fields (RGBRGB)
Contrast Ratio>1000:1*
Reflectance65 % (typ.)
Operating Temperature+10°C to +70°C
Lifetime (RPTV Application)20,000 hours
Recommended Waveband460 nm – 700 nm
*TN LCOS devices show a contrast in CFS mode >1000:1 using compensators like trim retarders or QWP´s, whereas in monochrome applications the sequential contrast could be above 3000:1, even higher with VAN-type LCOS in normally black mode also with compensator optics.

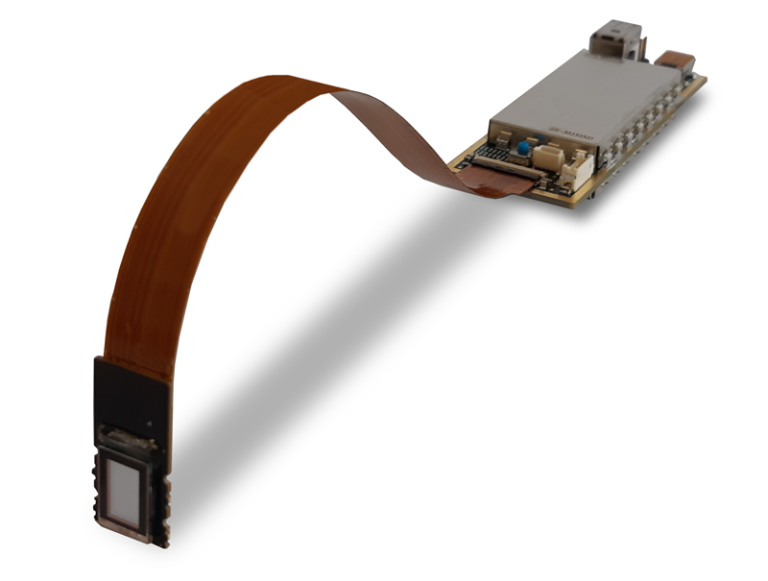

HEO 2220 Developer Kit

The HEO 2220 kit is used to control an LCOS (Liquid Crystal-on-Silicon) active matrix reflective mode LCD with 1920 X 1080 pixel resolution and a 0.39” diagonal. The color field sequential microdisplay is fast enough to handle all three primary colors, in order to deliver full color video images. The microdisplay supports six color fields (RGBRGB) at 60 Hz input video frame rate.

The driver ASIC is embedded in the LCoS microdisplay itself. This saves board space and makes integration more convenient. The display can accept video data input via a 4-lane MIPI DSI. The content is addressed via a standard DisplayPort signal e.g. by a PC’s graphics card. Basically, the LCOS display works like an extended monitor. Hence this plug and play kit guaranties a quick start-up and easy usage. The kit is highly programmable and communicates via an USB port. This communication port connects a PC to the driver chip allowing various configurations e.g. RGBRGB -mode, dithering modes for reduced bandwidth, gamma correction etc.

HEO 2220 Developer Kit – Deliverables
HED 2220 LCOS imager + flex cable
Interface Board
USB / Mini USB cable
Display Port / Mini Display Port cable
Light source sync connector cable
Display Mount
Flash drive with software package and documentation

Driveboard dimensions
