BLUE-Wave Models

Name: Blue-Wave Miniature Series
SKU: 12673
Availability: InStock

Question

BLUE-Wave Models

Accepted Answer

ModelDescriptionUV．Wavelength Range (nm): 200-600
．Grating g/mm: 1200
．Slit-200㎛, res.(nm): 3.0
．Slit-10㎛, res.(nm): 1.6
．Slit-50㎛, res.(nm): 0.8
．Slit-25㎛, res.(nm): 0.50UV2．Wavelength Range (nm): 200-400
．Grating g/mm: 2400
．Slit-200㎛, res.(nm): 1.5
．Slit-100㎛, res.(nm): 0.8
．Slit-50㎛, res.(nm): 0.4
．Slit-25㎛, res.(nm): 0.25UV3．Wavelength Range (nm): 220-350
．Grating g/mm: 3600
．Slit-200㎛, res.(nm): 1.0
．Slit-100㎛, res.(nm): 0.5
．Slit-50㎛, res.(nm): 0.25
．Slit-25㎛, res.(nm): 0.16UVIS．Wavelength Range (nm): 300-1100
．Grating g/mm: 600
．Slit-200㎛, res.(nm): 6.0
．Slit-100㎛, res.(nm): 3.2
．Slit-50㎛, res.(nm): 1.6
．Slit-25㎛, res.(nm): 1.00VIS．Wavelength Range (nm): 350-1150
．Grating g/mm: 600
．Slit-200㎛, res.(nm): 6.0
．Slit-100㎛, res.(nm): 3.2
．Slit-50㎛, res.(nm): 1.6
．Slit-25㎛, res.(nm): 1.00VIS2．Wavelength Range (nm): 380-780
．Grating g/mm: 1200
．Slit-200㎛, res.(nm): 3.0
．Slit-100㎛, res.(nm): 1.6
．Slit-50㎛, res.(nm): 0.8
．Slit-25㎛, res.(nm): 0.50NIR．Wavelength Range (nm): 500-1150
．Grating g/mm: 600
．Slit-200㎛, res.(nm): 6.0
．Slit-100㎛, res.(nm): 3.2
．Slit-50㎛, res.(nm): 1.6
．Slit-25㎛, res.(nm): 1.00NIR2．Wavelength Range (nm): 600-1000
．Grating g/mm: 1200
．Slit-200㎛, res.(nm): 3.0
．Slit-100㎛, res.(nm): 1.6
．Slit-50㎛, res.(nm): 0.8
．Slit-25㎛, res.(nm): 0.50NIR2b．Wavelength Range (nm): 785-1150
．Grating g/mm: 1200
．Slit-200㎛, res.(nm): 3.0
．Slit-100㎛, res.(nm): 1.6
．Slit-50㎛, res.(nm): 0.8
．Slit-25㎛, res.(nm): 0.50NIR3．Wavelength Range (nm): 550-810
．Grating g/mm: 1800
．Slit-200㎛, res.(nm): 2.2
．Slit-100㎛, res.(nm): 1.2
．Slit-50㎛, res.(nm): 0.6
．Slit-25㎛, res.(nm): 0.35NIR3b．Wavelength Range (nm): 680-935
．Grating g/mm: 1800
．Slit-200㎛, res.(nm): 2.2
．Slit-100㎛, res.(nm): 1.2
．Slit-50㎛, res.(nm): 0.6
．Slit-25㎛, res.(nm): 0.35NIR4．Wavelength Range (nm): 500-700
．Grating g/mm: 2400
．Slit-200㎛, res.(nm): 1.5
．Slit-100㎛, res.(nm): 0.8
．Slit-50㎛, res.(nm): 0.4
．Slit-25㎛, res.(nm): 0.25NIR4b．Wavelength Range (nm): 600-800
．Grating g/mm: 2400
．Slit-200㎛, res.(nm): 1.5
．Slit-100㎛, res.(nm): 0.8
．Slit-50㎛, res.(nm): 0.4
．Slit-25㎛, res.(nm): 0.25UVN．Wavelength Range (nm): 250-1100
．Grating g/mm: 600
．Slit-200㎛, res.(nm): 6.0
．Slit-100㎛, res.(nm): 3.2
．Slit-50㎛, res.(nm): 1.6
．Slit-25㎛, res.(nm): 1.00UVNb．Wavelength Range (nm): 200-1050
．Grating g/mm: 600
．Slit-200㎛, res.(nm): 6.0
．Slit-100㎛, res.(nm): 3.2
．Slit-50㎛, res.(nm): 1.6
．Slit-25㎛, res.(nm): 1.00

* Lamp spectra are examples of typical response curves. Various detector options, gratings, and other optical components may provide slightly different results. StellarNet does not guarantee the response curves for delivered spectrometers and these serve as examples.

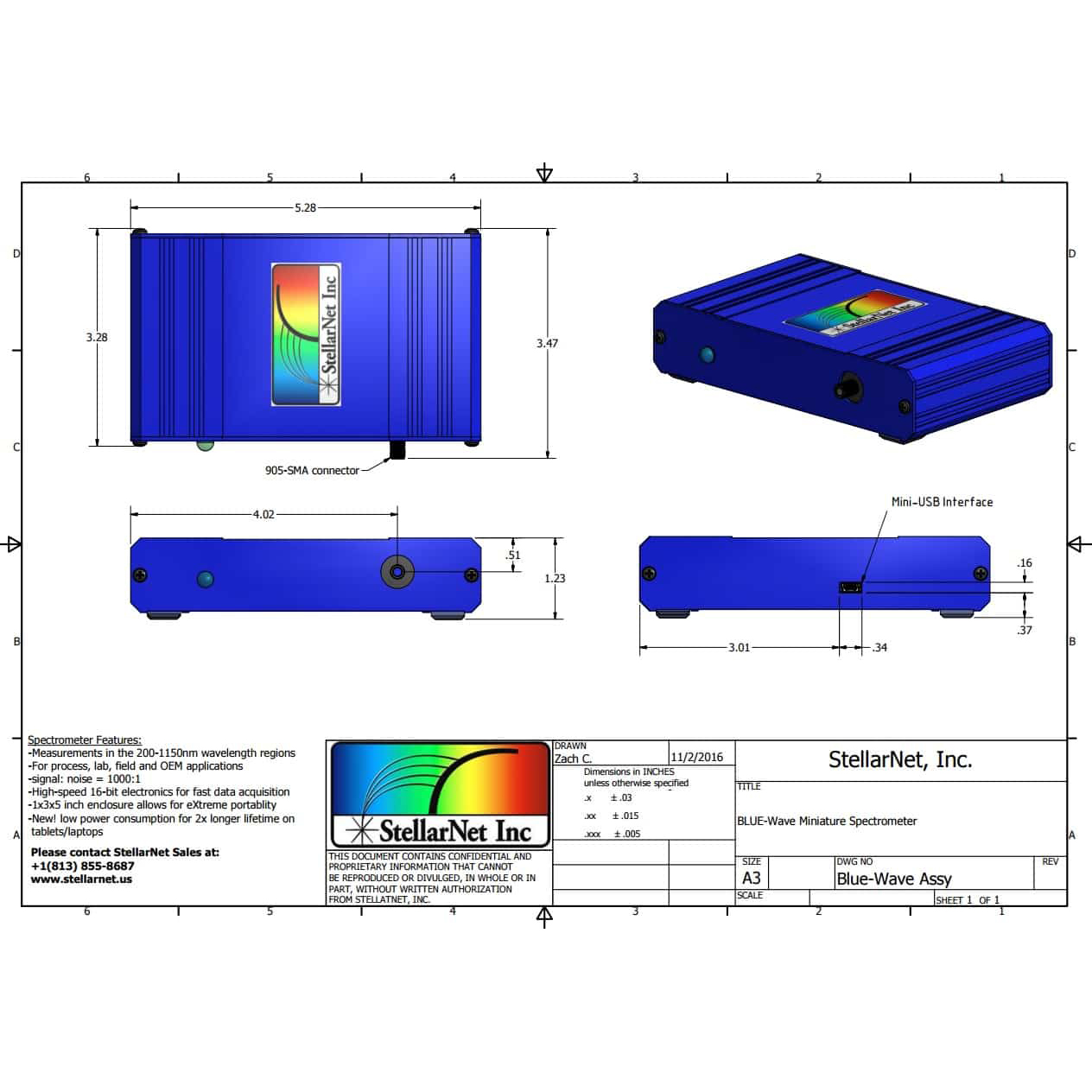

DownloadStellarNet-BLUE-Wave-SPEC.pdf

Model	Description
UV	．Wavelength Range (nm): 200-600 ．Grating g/mm: 1200 ．Slit-200㎛, res.(nm): 3.0 ．Slit-10㎛, res.(nm): 1.6 ．Slit-50㎛, res.(nm): 0.8 ．Slit-25㎛, res.(nm): 0.50
UV2	．Wavelength Range (nm): 200-400 ．Grating g/mm: 2400 ．Slit-200㎛, res.(nm): 1.5 ．Slit-100㎛, res.(nm): 0.8 ．Slit-50㎛, res.(nm): 0.4 ．Slit-25㎛, res.(nm): 0.25
UV3	．Wavelength Range (nm): 220-350 ．Grating g/mm: 3600 ．Slit-200㎛, res.(nm): 1.0 ．Slit-100㎛, res.(nm): 0.5 ．Slit-50㎛, res.(nm): 0.25 ．Slit-25㎛, res.(nm): 0.16
UVIS	．Wavelength Range (nm): 300-1100 ．Grating g/mm: 600 ．Slit-200㎛, res.(nm): 6.0 ．Slit-100㎛, res.(nm): 3.2 ．Slit-50㎛, res.(nm): 1.6 ．Slit-25㎛, res.(nm): 1.00
VIS	．Wavelength Range (nm): 350-1150 ．Grating g/mm: 600 ．Slit-200㎛, res.(nm): 6.0 ．Slit-100㎛, res.(nm): 3.2 ．Slit-50㎛, res.(nm): 1.6 ．Slit-25㎛, res.(nm): 1.00
VIS2	．Wavelength Range (nm): 380-780 ．Grating g/mm: 1200 ．Slit-200㎛, res.(nm): 3.0 ．Slit-100㎛, res.(nm): 1.6 ．Slit-50㎛, res.(nm): 0.8 ．Slit-25㎛, res.(nm): 0.50
NIR	．Wavelength Range (nm): 500-1150 ．Grating g/mm: 600 ．Slit-200㎛, res.(nm): 6.0 ．Slit-100㎛, res.(nm): 3.2 ．Slit-50㎛, res.(nm): 1.6 ．Slit-25㎛, res.(nm): 1.00
NIR2	．Wavelength Range (nm): 600-1000 ．Grating g/mm: 1200 ．Slit-200㎛, res.(nm): 3.0 ．Slit-100㎛, res.(nm): 1.6 ．Slit-50㎛, res.(nm): 0.8 ．Slit-25㎛, res.(nm): 0.50
NIR2b	．Wavelength Range (nm): 785-1150 ．Grating g/mm: 1200 ．Slit-200㎛, res.(nm): 3.0 ．Slit-100㎛, res.(nm): 1.6 ．Slit-50㎛, res.(nm): 0.8 ．Slit-25㎛, res.(nm): 0.50
NIR3	．Wavelength Range (nm): 550-810 ．Grating g/mm: 1800 ．Slit-200㎛, res.(nm): 2.2 ．Slit-100㎛, res.(nm): 1.2 ．Slit-50㎛, res.(nm): 0.6 ．Slit-25㎛, res.(nm): 0.35
NIR3b	．Wavelength Range (nm): 680-935 ．Grating g/mm: 1800 ．Slit-200㎛, res.(nm): 2.2 ．Slit-100㎛, res.(nm): 1.2 ．Slit-50㎛, res.(nm): 0.6 ．Slit-25㎛, res.(nm): 0.35
NIR4	．Wavelength Range (nm): 500-700 ．Grating g/mm: 2400 ．Slit-200㎛, res.(nm): 1.5 ．Slit-100㎛, res.(nm): 0.8 ．Slit-50㎛, res.(nm): 0.4 ．Slit-25㎛, res.(nm): 0.25
NIR4b	．Wavelength Range (nm): 600-800 ．Grating g/mm: 2400 ．Slit-200㎛, res.(nm): 1.5 ．Slit-100㎛, res.(nm): 0.8 ．Slit-50㎛, res.(nm): 0.4 ．Slit-25㎛, res.(nm): 0.25
UVN	．Wavelength Range (nm): 250-1100 ．Grating g/mm: 600 ．Slit-200㎛, res.(nm): 6.0 ．Slit-100㎛, res.(nm): 3.2 ．Slit-50㎛, res.(nm): 1.6 ．Slit-25㎛, res.(nm): 1.00
UVNb	．Wavelength Range (nm): 200-1050 ．Grating g/mm: 600 ．Slit-200㎛, res.(nm): 6.0 ．Slit-100㎛, res.(nm): 3.2 ．Slit-50㎛, res.(nm): 1.6 ．Slit-25㎛, res.(nm): 1.00
