Name: Collimator Lenses
SKU: 6103
Availability: InStock

Question 1

FC/PC

Accepted Answer

Features

Fiber Collimators with FC/PC Connectors (2.2 mm Wide Key) for Single Mode Patch Cables
Collimators Aligned at Wavelengths from 405 nm to 4.55 µm (See Table to the Right)
Collimated Beam Diameters from 0.63 mm to 4.0 mm Depending on Wavelength
Each Collimation Package is Factory Aligned
Simplifies Fiber-Coupled Detection Systems
Non-Magnetic Stainless Steel Housing
Compatible with Narrow and Wide Key FC/PC Connectors
Custom Options, Including Custom Alignment Wavelengths, Available by Contacting Tech Saleshttps://www.thorlabs.com/_sd.cfm?fileName=18196-E0W.pdf&partNumber=F671FC-405

ModelDescriptionDownloadF671FC-405405 nm, f = 4.02 mm, NA = 0.60 FC/PC Fiber Collimation Pkg. F110FC-532532 nm, f = 6.09 mm, NA = 0.38 FC/PC Fiber Collimation Pkg. F240FC-532532 nm, f = 7.86 mm, NA = 0.51 FC/PC Fiber Collimation Pkg. F220FC-532532 nm, f = 10.90 mm, NA = 0.25 FC/PC Fiber Collimation Pkg. F230FC-A543 nm, f = 4.34 mm, NA = 0.57 FC/PC Fiber Collimation Pkg. F240FC-A543 nm, f = 7.86 mm, NA = 0.51 FC/PC Fiber Collimation Pkg. F220FC-A543 nm, f = 10.90 mm, NA = 0.25 FC/PC Fiber Collimation Pkg. F260FC-A543 nm, f = 15.01 mm, NA = 0.17 FC/PC Fiber Collimation Pkg. F280FC-A543 nm, f = 18.07 mm, NA = 0.15 FC/PC Fiber Collimation Pkg. F230FC-B633 nm, f = 4.43 mm, NA = 0.56 FC/PC Fiber Collimation Pkg. F110FC-633633 nm, f = 6.17 mm, NA = 0.38 FC/PC Fiber Collimation Pkg. F240FC-B633 nm, f = 7.93 mm, NA = 0.50 FC/PC Fiber Collimation Pkg. F220FC-B633 nm, f = 10.99 mm, NA = 0.25 FC/PC Fiber Collimation Pkg. F260FC-B633 nm, f = 15.15 mm, NA = 0.16 FC/PC Fiber Collimation Pkg. F280FC-B633 nm, f = 18.24 mm, NA = 0.15 FC/PC Fiber Collimation Pkg. F230FC-780780 nm, f = 4.51 mm, NA = 0.55 FC/PC Fiber Collimation Pkg. F110FC-780780 nm, f = 6.24 mm, NA = 0.37 FC/PC Fiber Collimation Pkg. F240FC-780780 nm, f = 8.00 mm, NA = 0.50 FC/PC Fiber Collimation Pkg. F220FC-780780 nm, f = 11.07 mm, NA = 0.26 FC/PC Fiber Collimation Pkg. F260FC-780780 nm, f = 15.29 mm, NA = 0.16 FC/PC Fiber Collimation Pkg. F280FC-780780 nm, f = 18.40 mm, NA = 0.15 FC/PC Fiber Collimation Pkg. F230FC-850850 nm, f = 4.53 mm, NA = 0.49 FC/PC Fiber Collimation Pkg. F110FC-850850 nm, f = 6.26 mm, NA = 0.37 FC/PC Fiber Collimation Pkg. F240FC-850850 nm, f = 8.02 mm, NA = 0.50 FC/PC Fiber Collimation Pkg. F220FC-850850 nm, f = 11.12 mm, NA = 0.25 FC/PC Fiber Collimation Pkg. F260FC-850850 nm, f = 15.33 mm, NA = 0.16 FC/PC Fiber Collimation Pkg. F280FC-850850 nm, f = 18.45 mm, NA = 0.15 FC/PC Fiber Collimation Pkg. F110FC-980980 nm, f = 6.29 mm, NA = 0.37 FC/PC Fiber Collimation Pkg. F240FC-980980 nm, f = 8.06 mm, NA = 0.50 FC/PC Fiber Collimation Pkg. F220FC-980980 nm, f = 11.16 mm, NA = 0.25 FC/PC Fiber Collimation Pkg. F280FC-980980 nm, f = 18.53 mm, NA = 0.15 FC/PC Fiber Collimation Pkg. F110FC-10641064 nm, f = 6.31 mm, NA = 0.37 FC/PC Fiber Collimation Pkg. F220FC-10641064 nm, f = 11.17 mm, NA = 0.25 FC/PC Fiber Collimation Pkg. F230FC-C1310 nm, f = 4.64 mm, NA = 0.53 FC/PC Fiber Collimation Pkg. F110FC-13101310 nm, f = 6.35 mm, NA = 0.37, FC/PC Fiber Collimation Pkg. F240FC-C1310 nm, f = 8.13 mm, NA = 0.49 FC/PC Fiber Collimation Pkg. F220FC-C1310 nm, f = 11.23 mm, NA = 0.24 FC/PC Fiber Collimation Pkg. F260FC-C1310 nm, f = 15.52 mm, NA = 0.16 FC/PC Fiber Collimation Pkg. F280FC-C1310 nm, f = 18.67 mm, NA = 0.15 FC/PC Fiber Collimation Pkg. F230FC-15501550 nm, f = 4.67 mm, NA = 0.53 FC/PC Fiber Collimation Pkg. F110FC-15501550 nm, f = 6.37 mm, NA = 0.37 FC/PC Fiber Collimation Pkg. F240FC-15501550 nm, f = 8.18 mm, NA = 0.49 FC/PC Fiber Collimation Pkg. F220FC-15501550 nm, f = 11.29 mm, NA = 0.24 FC/PC Fiber Collimation Pkg. F260FC-15501550 nm, f = 15.58 mm, NA = 0.16 FC/PC Fiber Collimation Pkg. F280FC-15501550 nm, f = 18.75 mm, NA = 0.15 FC/PC Fiber Collimation Pkg. F028FC-20002 µm, f = 5.91 mm, NA = 0.56 FC/PC Fiber Collimation Pkg. F028FC-34503.45 µm, f = 5.94 mm, NA = 0.56 FC/PC Fiber Collimation Pkg. F028FC-49504.55 µm, f = 5.97 mm, NA = 0.56 FC/PC Fiber Collimation Pkg.

Question 2

FC/APC

Accepted Answer

Features

Fiber Collimators with FC/APC Connectors (2.2 mm Wide Key) for Single Mode Patch Cables
Aligned at Wavelengths from 405 nm to 4.55 µm (See Table to the Right)
Collimated Beam Diameters from 0.63 mm to 4.05 mm Depending on Wavelength
Each Collimation Package is Factory Aligned
Simplifies Fiber-Coupled Detection Systems
Non-Magnetic Stainless Steel Housing
Compatible with Narrow and Wide Key FC/APC Connectors
Custom Options, Including Custom Alignment Wavelengths, Available by Contacting Tech Support

ModelDescriptionDownloadF671APC-405405 nm, f = 4.02 mm, NA = 0.60 FC/APC Fiber Collimation Pkg. F110APC-532532 nm, f = 6.09 mm, NA = 0.38 FC/APC Fiber Collimation Pkg. F240APC-532532 nm, f = 7.86 mm, NA = 0.51 FC/APC Fiber Collimation Pkg. F220APC-532532 nm, f = 10.90 mm, NA = 0.25 FC/APC Fiber Collimation Pkg. F240APC-A543 nm, f = 7.86 mm, NA = 0.51 FC/APC Fiber Collimation Pkg. F260APC-A543 nm, f = 15.01 mm, NA = 0.17 FC/APC Fiber Collimation Pkg. F280APC-A543 nm, f=18.07 mm, NA=0.15 FC/APC Fiber Collimation Pkg. F230APC-633633 nm, f = 4.46 mm, NA = 0.56 FC/APC Collimation Pkg. F110APC-633633 nm, f = 6.17 mm, NA = 0.38 FC/APC Collimation Pkg. F240APC-B633 nm, f = 7.93 mm, NA = 0.50 FC/APC Fiber Collimation Pkg. F220APC-633633 nm, f = 11.00 mm, NA = 0.25 FC/APC Collimation Pkg. F260APC-B633 nm, f = 15.15 mm, NA = 0.16 FC/APC Collimation Pkg. F280APC-B633 nm, f = 18.24 mm, NA = 0.15 FC/APC Fiber Collimation Pkg. F230APC-780780 nm, f = 4.51 mm, NA = 0.55 FC/APC Fiber Collimation Pkg. F110APC-780780 nm, f = 6.24 mm, NA = 0.37 FC/APC Fiber Collimation Pkg. F240APC-780780 nm, f = 8.00 mm, NA = 0.50 FC/APC Fiber Collimation Pkg. F220APC-780780 nm, f = 11.07 mm, NA = 0.26 FC/APC Fiber Collimation Pkg. F260APC-780780 nm, f = 15.29 mm, NA = 0.16 FC/APC Fiber Collimation Pkg. F280APC-780780 nm, f = 18.40 mm, NA = 0.15 FC/APC Fiber Collimation Pkg. F230APC-850850 nm, f = 4.53 mm, NA = 0.49 FC/APC Fiber Collimation Pkg. F110APC-850850 nm, f = 6.26 mm, NA = 0.37 FC/APC Fiber Collimation Pkg. F240APC-850850 nm, f = 8.02 mm, NA = 0.50 FC/APC Fiber Collimation Pkg. F220APC-850850 nm, f = 11.12 mm, NA = 0.25 FC/APC Fiber Collimation Pkg. F260APC-850850 nm, f = 15.33 mm, NA = 0.16 FC/APC Fiber Collimation Pkg. F280APC-850850 nm, f = 18.45 mm, NA = 0.15 FC/APC Fiber Collimation Pkg. F230APC-980980 nm, f = 4.55 mm, NA = 0.49 FC/APC Fiber Collimation Pkg. F110APC-980980 nm, f = 6.29 mm, NA = 0.37 FC/APC Fiber Collimation Pkg. F240APC-980980 nm, f = 8.06 mm, NA = 0.50 FC/APC Fiber Collimation Pkg. F220APC-980980 nm, f = 11.16 mm, NA = 0.25 FC/APC Fiber Collimation Pkg. F260APC-980980 nm, f = 15.39 mm, NA = 0.16 FC/APC Fiber Collimation Pkg. F280APC-980980 nm, f = 18.53 mm, NA = 0.15 FC/APC Fiber Collimation Pkg. F230APC-10641064 nm, f = 4.56 mm, NA = 0.55 FC/APC Fiber Collimation Pkg. F110APC-10641064 nm, f = 6.31 mm, NA = 0.37 FC/APC Fiber Collimation Pkg. F240APC-10641064 nm, f = 8.07 mm, NA = 0.50 FC/APC Fiber Collimation Pkg. F220APC-10641064 nm, f = 11.17 mm, NA = 0.25 FC/APC Fiber Collimation Pkg. F260APC-10641064 nm, f = 15.43 mm, NA = 0.16 FC/APC Fiber Collimation Pkg. F280APC-10641064 nm, f = 18.60 mm, NA = 0.15 FC/APC Fiber Collimation Pkg. F230APC-13101310 nm, f = 4.59 mm, NA = 0.54 FC/APC Fiber Collimation Pkg. F110APC-13101310 nm, f = 6.35 mm, NA = 0.37, FC/APC Fiber Collimation Pkg. F240APC-C1310 nm, f = 8.13 mm, NA = 0.49 FC/APC Fiber Collimation Pkg. F220APC-13101310 nm, f =11.26 mm, NA = 0.25 FC/APC Fiber Collimation Pkg. F260APC-C1310 nm, f = 15.52 mm, NA = 0.16, FC/APC Fiber Collimation Pkg. F280APC-C1310 nm, f = 18.67 mm, NA = 0.15, FC/APC Fiber Collimation Pkg. F230APC-15501550 nm, f = 4.61 mm, NA = 0.54 FC/APC Fiber Collimation Pkg. F110APC-15501550 nm, f = 6.37 mm, NA = 0.37 FC/APC Fiber Collimation Pkg. F240APC-15501550 nm, f = 8.18 mm, NA = 0.49 FC/APC Fiber Collimation Pkg. F220APC-15501550 nm, f = 11.32 mm, NA = 0.24 FC/APC Fiber Collimation Pkg. F260APC-15501550 nm, f = 15.58 mm, NA = 0.16 FC/APC Fiber Collimation Pkg. F280APC-15501550 nm, f = 18.75 mm, NA = 0.15 FC/APC Fiber Collimation Pkg. F028APC-20002 µm, f = 5.91 mm, NA = 0.56 FC/APC Fiber Collimation Pkg. F028APC-34503.45 µm, f = 5.94 mm, NA = 0.56 FC/APC Fiber Collimation Pkg. F028APC-49504.55 µm, f = 5.97 mm, NA = 0.56 FC/APC Fiber Collimation Pkg.

Question 3

SMA

Accepted Answer

Features

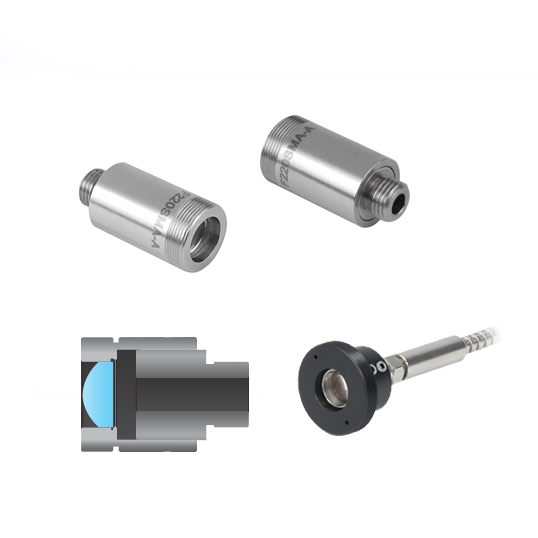

Fiber Collimators with SMA905 Connectors for Single Mode Patch Cables
Aligned at Wavelengths from 405 nm to 4.55 µm (See Table to the Right)
Collimated Beam Diameters from 0.64 mm to 4.0 mm Depending on Wavelength
Each Collimation Package is Factory Aligned
Simplifies Fiber-Coupled Detection Systems
Non-Magnetic Stainless Steel Housing
Custom Options, Including Custom Alignment Wavelengths, Available by Contacting Tech Support

ModelDescriptionDownloadF671SMA-405405 nm, f = 4.02 mm, NA = 0.60 SMA905 Fiber Collimation Pkg. F110SMA-532532 nm, f = 6.09 mm, NA = 0.38 SMA905 Fiber Collimation Pkg. F240SMA-532532 nm, f = 7.86 mm, NA = 0.51 SMA905 Fiber Collimation Pkg. F220SMA-532532 nm, f = 10.90 mm, NA = 0.25 SMA905 Fiber Collimation Pkg. F230SMA-A543 nm, f = 4.34 mm, NA = 0.57 SMA905 Fiber Collimation Pkg. F240SMA-A543 nm, f = 7.86 mm, NA = 0.51 SMA905 Fiber Collimation Pkg. F220SMA-A543 nm, f = 10.92 mm, NA = 0.25 SMA905 Fiber Collimation Pkg. F260SMA-A543 nm, f = 15.01 mm, NA = 0.17 SMA905 Fiber Collimation Pkg. F280SMA-A543 nm, f = 18.07 mm, NA = 0.15 SMA905 Fiber Collimation Pkg. F230SMA-B633 nm, f = 4.43 mm, NA = 0.56 SMA905 Fiber Collimation Pkg. F110SMA-633633 nm, f = 6.17 mm, NA = 0.38 SMA905 Collimation Pkg. F240SMA-B633 nm, f = 7.94 mm, NA = 0.50 SMA905 Fiber Collimation Pkg. F220SMA-B633 nm, f = 10.99 mm, NA = 0.25 SMA905 Fiber Collimation Pkg. F260SMA-B633 nm, f = 15.15 mm, NA = 0.16 SMA905 Fiber Collimation Pkg. F280SMA-B633 nm, f = 18.24 mm, NA = 0.15 SMA905 Fiber Collimation Pkg. F110SMA-780780 nm, f = 6.24 mm, NA = 0.37 SMA Fiber Collimation Pkg. F240SMA-780780 nm, f = 8.00 mm, NA = 0.50 SMA905 Fiber Collimation Pkg. F220SMA-780780 nm, f = 11.07 mm, NA = 0.26 SMA905 Fiber Collimation Pkg. F230SMA-850850 nm, f = 4.53 mm, NA = 0.49 SMA905 Fiber Collimation Pkg. F110SMA-850850 nm, f = 6.26 mm, NA = 0.37 SMA905 Fiber Collimation Pkg. F240SMA-850850 nm, f = 8.02 mm, NA = 0.50 SMA905 Fiber Collimation Pkg. F220SMA-850850 nm, f = 11.12 mm, NA = 0.25 SMA905 Fiber Collimation Pkg. F260SMA-850850 nm, f = 15.33 mm, NA = 0.16 SMA905 Fiber Collimation Pkg. F280SMA-850 850 nm, f = 18.45 mm, NA = 0.15 SMA905 Fiber Collimation Pkg. F110SMA-980980 nm, f = 6.29 mm, NA = 0.37 SMA905 Fiber Collimation Pkg. F240SMA-980980 nm, f = 8.06 mm, NA = 0.50 SMA905 Fiber Collimation Pkg. F220SMA-980980 nm, f = 11.16 mm, NA = 0.25 SMA905 Fiber Collimation Pkg. F280SMA-980980 nm, f = 18.53 mm, NA = 0.15 SMA905 Fiber Collimation Pkg. F110SMA-10641064 nm, f = 6.31 mm, NA = 0.37 SMA905 Fiber Collimation Pkg. F220SMA-10641064 nm, f = 11.17 mm, NA = 0.25 SMA905 Fiber Collimation Pkg. F230SMA-C1310 nm, f = 4.64 mm, NA = 0.53 SMA905 Fiber Collimation Pkg. F110SMA-13101310 nm, f = 6.35 mm, NA = 0.37, SMA905 Fiber Collimation Pkg. F240SMA-C1310 nm, f = 8.12 mm, NA = 0.49 SMA905 Fiber Collimation Pkg. F220SMA-C1310 nm, f = 11.26 mm, NA = 0.24 SMA905 Fiber Collimation Pkg. F260SMA-C1310 nm, f = 15.52 mm, NA = 0.16 SMA905 Fiber Collimation Pkg. F280SMA-C1310 nm, f = 18.67 mm, NA = 0.15 SMA905 Fiber Collimation Pkg. F230SMA-15501550 nm, f = 4.67 mm, NA = 0.53 SMA905 Fiber Collimation Pkg. F110SMA-15501550 nm, f = 6.37 mm, NA = 0.37 SMA905 Fiber Collimation Pkg. F240SMA-15501550 nm, f = 8.17 mm, NA = 0.49 SMA905 Fiber Collimation Pkg. F220SMA-15501550 nm, f = 11.32 mm, NA = 0.24 SMA905 Fiber Collimation Pkg. F260SMA-15501550 nm, f = 15.58 mm, NA = 0.16 SMA905 Fiber Collimation Pkg. F280SMA-15501550 nm, f = 18.75 mm, NA = 0.15 SMA905 Fiber Collimation Pkg. F028SMA-20002 µm, f = 5.91 mm, NA = 0.56 SMA905 Fiber Collimation Pkg. F028SMA-34503.45 µm, f = 5.94 mm, NA = 0.56 SMA905 Fiber Collimation Pkg. F028SMA-49504.55 µm, f = 5.97 mm, NA = 0.56 SMA Fiber Collimation Pkg.

Model	Description	Download
F671FC-405	405 nm, f = 4.02 mm, NA = 0.60 FC/PC Fiber Collimation Pkg.
F110FC-532	532 nm, f = 6.09 mm, NA = 0.38 FC/PC Fiber Collimation Pkg.
F240FC-532	532 nm, f = 7.86 mm, NA = 0.51 FC/PC Fiber Collimation Pkg.
F220FC-532	532 nm, f = 10.90 mm, NA = 0.25 FC/PC Fiber Collimation Pkg.
F230FC-A	543 nm, f = 4.34 mm, NA = 0.57 FC/PC Fiber Collimation Pkg.
F240FC-A	543 nm, f = 7.86 mm, NA = 0.51 FC/PC Fiber Collimation Pkg.
F220FC-A	543 nm, f = 10.90 mm, NA = 0.25 FC/PC Fiber Collimation Pkg.
F260FC-A	543 nm, f = 15.01 mm, NA = 0.17 FC/PC Fiber Collimation Pkg.
F280FC-A	543 nm, f = 18.07 mm, NA = 0.15 FC/PC Fiber Collimation Pkg.
F230FC-B	633 nm, f = 4.43 mm, NA = 0.56 FC/PC Fiber Collimation Pkg.
F110FC-633	633 nm, f = 6.17 mm, NA = 0.38 FC/PC Fiber Collimation Pkg.
F240FC-B	633 nm, f = 7.93 mm, NA = 0.50 FC/PC Fiber Collimation Pkg.
F220FC-B	633 nm, f = 10.99 mm, NA = 0.25 FC/PC Fiber Collimation Pkg.
F260FC-B	633 nm, f = 15.15 mm, NA = 0.16 FC/PC Fiber Collimation Pkg.
F280FC-B	633 nm, f = 18.24 mm, NA = 0.15 FC/PC Fiber Collimation Pkg.
F230FC-780	780 nm, f = 4.51 mm, NA = 0.55 FC/PC Fiber Collimation Pkg.
F110FC-780	780 nm, f = 6.24 mm, NA = 0.37 FC/PC Fiber Collimation Pkg.
F240FC-780	780 nm, f = 8.00 mm, NA = 0.50 FC/PC Fiber Collimation Pkg.
F220FC-780	780 nm, f = 11.07 mm, NA = 0.26 FC/PC Fiber Collimation Pkg.
F260FC-780	780 nm, f = 15.29 mm, NA = 0.16 FC/PC Fiber Collimation Pkg.
F280FC-780	780 nm, f = 18.40 mm, NA = 0.15 FC/PC Fiber Collimation Pkg.
F230FC-850	850 nm, f = 4.53 mm, NA = 0.49 FC/PC Fiber Collimation Pkg.
F110FC-850	850 nm, f = 6.26 mm, NA = 0.37 FC/PC Fiber Collimation Pkg.
F240FC-850	850 nm, f = 8.02 mm, NA = 0.50 FC/PC Fiber Collimation Pkg.
F220FC-850	850 nm, f = 11.12 mm, NA = 0.25 FC/PC Fiber Collimation Pkg.
F260FC-850	850 nm, f = 15.33 mm, NA = 0.16 FC/PC Fiber Collimation Pkg.
F280FC-850	850 nm, f = 18.45 mm, NA = 0.15 FC/PC Fiber Collimation Pkg.
F110FC-980	980 nm, f = 6.29 mm, NA = 0.37 FC/PC Fiber Collimation Pkg.
F240FC-980	980 nm, f = 8.06 mm, NA = 0.50 FC/PC Fiber Collimation Pkg.
F220FC-980	980 nm, f = 11.16 mm, NA = 0.25 FC/PC Fiber Collimation Pkg.
F280FC-980	980 nm, f = 18.53 mm, NA = 0.15 FC/PC Fiber Collimation Pkg.
F110FC-1064	1064 nm, f = 6.31 mm, NA = 0.37 FC/PC Fiber Collimation Pkg.
F220FC-1064	1064 nm, f = 11.17 mm, NA = 0.25 FC/PC Fiber Collimation Pkg.
F230FC-C	1310 nm, f = 4.64 mm, NA = 0.53 FC/PC Fiber Collimation Pkg.
F110FC-1310	1310 nm, f = 6.35 mm, NA = 0.37, FC/PC Fiber Collimation Pkg.
F240FC-C	1310 nm, f = 8.13 mm, NA = 0.49 FC/PC Fiber Collimation Pkg.
F220FC-C	1310 nm, f = 11.23 mm, NA = 0.24 FC/PC Fiber Collimation Pkg.
F260FC-C	1310 nm, f = 15.52 mm, NA = 0.16 FC/PC Fiber Collimation Pkg.
F280FC-C	1310 nm, f = 18.67 mm, NA = 0.15 FC/PC Fiber Collimation Pkg.
F230FC-1550	1550 nm, f = 4.67 mm, NA = 0.53 FC/PC Fiber Collimation Pkg.
F110FC-1550	1550 nm, f = 6.37 mm, NA = 0.37 FC/PC Fiber Collimation Pkg.
F240FC-1550	1550 nm, f = 8.18 mm, NA = 0.49 FC/PC Fiber Collimation Pkg.
F220FC-1550	1550 nm, f = 11.29 mm, NA = 0.24 FC/PC Fiber Collimation Pkg.
F260FC-1550	1550 nm, f = 15.58 mm, NA = 0.16 FC/PC Fiber Collimation Pkg.
F280FC-1550	1550 nm, f = 18.75 mm, NA = 0.15 FC/PC Fiber Collimation Pkg.
F028FC-2000	2 µm, f = 5.91 mm, NA = 0.56 FC/PC Fiber Collimation Pkg.
F028FC-3450	3.45 µm, f = 5.94 mm, NA = 0.56 FC/PC Fiber Collimation Pkg.
F028FC-4950	4.55 µm, f = 5.97 mm, NA = 0.56 FC/PC Fiber Collimation Pkg.

Model	Description	Download
F671APC-405	405 nm, f = 4.02 mm, NA = 0.60 FC/APC Fiber Collimation Pkg.
F110APC-532	532 nm, f = 6.09 mm, NA = 0.38 FC/APC Fiber Collimation Pkg.
F240APC-532	532 nm, f = 7.86 mm, NA = 0.51 FC/APC Fiber Collimation Pkg.
F220APC-532	532 nm, f = 10.90 mm, NA = 0.25 FC/APC Fiber Collimation Pkg.
F240APC-A	543 nm, f = 7.86 mm, NA = 0.51 FC/APC Fiber Collimation Pkg.
F260APC-A	543 nm, f = 15.01 mm, NA = 0.17 FC/APC Fiber Collimation Pkg.
F280APC-A	543 nm, f=18.07 mm, NA=0.15 FC/APC Fiber Collimation Pkg.
F230APC-633	633 nm, f = 4.46 mm, NA = 0.56 FC/APC Collimation Pkg.
F110APC-633	633 nm, f = 6.17 mm, NA = 0.38 FC/APC Collimation Pkg.
F240APC-B	633 nm, f = 7.93 mm, NA = 0.50 FC/APC Fiber Collimation Pkg.
F220APC-633	633 nm, f = 11.00 mm, NA = 0.25 FC/APC Collimation Pkg.
F260APC-B	633 nm, f = 15.15 mm, NA = 0.16 FC/APC Collimation Pkg.
F280APC-B	633 nm, f = 18.24 mm, NA = 0.15 FC/APC Fiber Collimation Pkg.
F230APC-780	780 nm, f = 4.51 mm, NA = 0.55 FC/APC Fiber Collimation Pkg.
F110APC-780	780 nm, f = 6.24 mm, NA = 0.37 FC/APC Fiber Collimation Pkg.
F240APC-780	780 nm, f = 8.00 mm, NA = 0.50 FC/APC Fiber Collimation Pkg.
F220APC-780	780 nm, f = 11.07 mm, NA = 0.26 FC/APC Fiber Collimation Pkg.
F260APC-780	780 nm, f = 15.29 mm, NA = 0.16 FC/APC Fiber Collimation Pkg.
F280APC-780	780 nm, f = 18.40 mm, NA = 0.15 FC/APC Fiber Collimation Pkg.
F230APC-850	850 nm, f = 4.53 mm, NA = 0.49 FC/APC Fiber Collimation Pkg.
F110APC-850	850 nm, f = 6.26 mm, NA = 0.37 FC/APC Fiber Collimation Pkg.
F240APC-850	850 nm, f = 8.02 mm, NA = 0.50 FC/APC Fiber Collimation Pkg.
F220APC-850	850 nm, f = 11.12 mm, NA = 0.25 FC/APC Fiber Collimation Pkg.
F260APC-850	850 nm, f = 15.33 mm, NA = 0.16 FC/APC Fiber Collimation Pkg.
F280APC-850	850 nm, f = 18.45 mm, NA = 0.15 FC/APC Fiber Collimation Pkg.
F230APC-980	980 nm, f = 4.55 mm, NA = 0.49 FC/APC Fiber Collimation Pkg.
F110APC-980	980 nm, f = 6.29 mm, NA = 0.37 FC/APC Fiber Collimation Pkg.
F240APC-980	980 nm, f = 8.06 mm, NA = 0.50 FC/APC Fiber Collimation Pkg.
F220APC-980	980 nm, f = 11.16 mm, NA = 0.25 FC/APC Fiber Collimation Pkg.
F260APC-980	980 nm, f = 15.39 mm, NA = 0.16 FC/APC Fiber Collimation Pkg.
F280APC-980	980 nm, f = 18.53 mm, NA = 0.15 FC/APC Fiber Collimation Pkg.
F230APC-1064	1064 nm, f = 4.56 mm, NA = 0.55 FC/APC Fiber Collimation Pkg.
F110APC-1064	1064 nm, f = 6.31 mm, NA = 0.37 FC/APC Fiber Collimation Pkg.
F240APC-1064	1064 nm, f = 8.07 mm, NA = 0.50 FC/APC Fiber Collimation Pkg.
F220APC-1064	1064 nm, f = 11.17 mm, NA = 0.25 FC/APC Fiber Collimation Pkg.
F260APC-1064	1064 nm, f = 15.43 mm, NA = 0.16 FC/APC Fiber Collimation Pkg.
F280APC-1064	1064 nm, f = 18.60 mm, NA = 0.15 FC/APC Fiber Collimation Pkg.
F230APC-1310	1310 nm, f = 4.59 mm, NA = 0.54 FC/APC Fiber Collimation Pkg.
F110APC-1310	1310 nm, f = 6.35 mm, NA = 0.37, FC/APC Fiber Collimation Pkg.
F240APC-C	1310 nm, f = 8.13 mm, NA = 0.49 FC/APC Fiber Collimation Pkg.
F220APC-1310	1310 nm, f =11.26 mm, NA = 0.25 FC/APC Fiber Collimation Pkg.
F260APC-C	1310 nm, f = 15.52 mm, NA = 0.16, FC/APC Fiber Collimation Pkg.
F280APC-C	1310 nm, f = 18.67 mm, NA = 0.15, FC/APC Fiber Collimation Pkg.
F230APC-1550	1550 nm, f = 4.61 mm, NA = 0.54 FC/APC Fiber Collimation Pkg.
F110APC-1550	1550 nm, f = 6.37 mm, NA = 0.37 FC/APC Fiber Collimation Pkg.
F240APC-1550	1550 nm, f = 8.18 mm, NA = 0.49 FC/APC Fiber Collimation Pkg.
F220APC-1550	1550 nm, f = 11.32 mm, NA = 0.24 FC/APC Fiber Collimation Pkg.
F260APC-1550	1550 nm, f = 15.58 mm, NA = 0.16 FC/APC Fiber Collimation Pkg.
F280APC-1550	1550 nm, f = 18.75 mm, NA = 0.15 FC/APC Fiber Collimation Pkg.
F028APC-2000	2 µm, f = 5.91 mm, NA = 0.56 FC/APC Fiber Collimation Pkg.
F028APC-3450	3.45 µm, f = 5.94 mm, NA = 0.56 FC/APC Fiber Collimation Pkg.
F028APC-4950	4.55 µm, f = 5.97 mm, NA = 0.56 FC/APC Fiber Collimation Pkg.

Model	Description	Download
F671SMA-405	405 nm, f = 4.02 mm, NA = 0.60 SMA905 Fiber Collimation Pkg.
F110SMA-532	532 nm, f = 6.09 mm, NA = 0.38 SMA905 Fiber Collimation Pkg.
F240SMA-532	532 nm, f = 7.86 mm, NA = 0.51 SMA905 Fiber Collimation Pkg.
F220SMA-532	532 nm, f = 10.90 mm, NA = 0.25 SMA905 Fiber Collimation Pkg.
F230SMA-A	543 nm, f = 4.34 mm, NA = 0.57 SMA905 Fiber Collimation Pkg.
F240SMA-A	543 nm, f = 7.86 mm, NA = 0.51 SMA905 Fiber Collimation Pkg.
F220SMA-A	543 nm, f = 10.92 mm, NA = 0.25 SMA905 Fiber Collimation Pkg.
F260SMA-A	543 nm, f = 15.01 mm, NA = 0.17 SMA905 Fiber Collimation Pkg.
F280SMA-A	543 nm, f = 18.07 mm, NA = 0.15 SMA905 Fiber Collimation Pkg.
F230SMA-B	633 nm, f = 4.43 mm, NA = 0.56 SMA905 Fiber Collimation Pkg.
F110SMA-633	633 nm, f = 6.17 mm, NA = 0.38 SMA905 Collimation Pkg.
F240SMA-B	633 nm, f = 7.94 mm, NA = 0.50 SMA905 Fiber Collimation Pkg.
F220SMA-B	633 nm, f = 10.99 mm, NA = 0.25 SMA905 Fiber Collimation Pkg.
F260SMA-B	633 nm, f = 15.15 mm, NA = 0.16 SMA905 Fiber Collimation Pkg.
F280SMA-B	633 nm, f = 18.24 mm, NA = 0.15 SMA905 Fiber Collimation Pkg.
F110SMA-780	780 nm, f = 6.24 mm, NA = 0.37 SMA Fiber Collimation Pkg.
F240SMA-780	780 nm, f = 8.00 mm, NA = 0.50 SMA905 Fiber Collimation Pkg.
F220SMA-780	780 nm, f = 11.07 mm, NA = 0.26 SMA905 Fiber Collimation Pkg.
F230SMA-850	850 nm, f = 4.53 mm, NA = 0.49 SMA905 Fiber Collimation Pkg.
F110SMA-850	850 nm, f = 6.26 mm, NA = 0.37 SMA905 Fiber Collimation Pkg.
F240SMA-850	850 nm, f = 8.02 mm, NA = 0.50 SMA905 Fiber Collimation Pkg.
F220SMA-850	850 nm, f = 11.12 mm, NA = 0.25 SMA905 Fiber Collimation Pkg.
F260SMA-850	850 nm, f = 15.33 mm, NA = 0.16 SMA905 Fiber Collimation Pkg.
F280SMA-850	850 nm, f = 18.45 mm, NA = 0.15 SMA905 Fiber Collimation Pkg.
F110SMA-980	980 nm, f = 6.29 mm, NA = 0.37 SMA905 Fiber Collimation Pkg.
F240SMA-980	980 nm, f = 8.06 mm, NA = 0.50 SMA905 Fiber Collimation Pkg.
F220SMA-980	980 nm, f = 11.16 mm, NA = 0.25 SMA905 Fiber Collimation Pkg.
F280SMA-980	980 nm, f = 18.53 mm, NA = 0.15 SMA905 Fiber Collimation Pkg.
F110SMA-1064	1064 nm, f = 6.31 mm, NA = 0.37 SMA905 Fiber Collimation Pkg.
F220SMA-1064	1064 nm, f = 11.17 mm, NA = 0.25 SMA905 Fiber Collimation Pkg.
F230SMA-C	1310 nm, f = 4.64 mm, NA = 0.53 SMA905 Fiber Collimation Pkg.
F110SMA-1310	1310 nm, f = 6.35 mm, NA = 0.37, SMA905 Fiber Collimation Pkg.
F240SMA-C	1310 nm, f = 8.12 mm, NA = 0.49 SMA905 Fiber Collimation Pkg.
F220SMA-C	1310 nm, f = 11.26 mm, NA = 0.24 SMA905 Fiber Collimation Pkg.
F260SMA-C	1310 nm, f = 15.52 mm, NA = 0.16 SMA905 Fiber Collimation Pkg.
F280SMA-C	1310 nm, f = 18.67 mm, NA = 0.15 SMA905 Fiber Collimation Pkg.
F230SMA-1550	1550 nm, f = 4.67 mm, NA = 0.53 SMA905 Fiber Collimation Pkg.
F110SMA-1550	1550 nm, f = 6.37 mm, NA = 0.37 SMA905 Fiber Collimation Pkg.
F240SMA-1550	1550 nm, f = 8.17 mm, NA = 0.49 SMA905 Fiber Collimation Pkg.
F220SMA-1550	1550 nm, f = 11.32 mm, NA = 0.24 SMA905 Fiber Collimation Pkg.
F260SMA-1550	1550 nm, f = 15.58 mm, NA = 0.16 SMA905 Fiber Collimation Pkg.
F280SMA-1550	1550 nm, f = 18.75 mm, NA = 0.15 SMA905 Fiber Collimation Pkg.
F028SMA-2000	2 µm, f = 5.91 mm, NA = 0.56 SMA905 Fiber Collimation Pkg.
F028SMA-3450	3.45 µm, f = 5.94 mm, NA = 0.56 SMA905 Fiber Collimation Pkg.
F028SMA-4950	4.55 µm, f = 5.97 mm, NA = 0.56 SMA Fiber Collimation Pkg.

Collimator Lenses

Spec

FC/PC

Features

FC/APC

Features

SMA

Features

Related products

Ball and Condenser Lenses

Array Cylindrical Micro-lens

Bi-Concave Lenses

Polarization-Maintaining Single Mode Patch Cables
