Spec
Color touchscreen
| Model | Description |
|---|---|
| MAESTRO | ．Digital display size: 217 x 136 mm LCD – 1280 x 800 pixels ．Data display: Real time, scope, statistics, digital tuning needle and averaging ．Analog output: 0-1 V, full scale, ±1 % ．External trigger: 3.3 to 24 V ．Data storage via: Internal memory or USB key ．Battery type: Rechargeable Li-ion cell ．Battery life: 6 hours ．External power supply: 9-24 VDC 3.33 A, USB-C (min 18 W) |
| MIRO ALTITUDE | ．Interface languages: English, German, French and Japanese ．Digital display size: 112.9 x 84.7 mm LCD – 640 x 480 pixels ．Data display: Real time, scope, statistics, digital tuning needle and averaging ．Analog output: 0-1 V, full scale, ±0.5 % ．External trigger: TTL Compatible, 2-25 V @ 0.4 mA ．Serial commands via: USB, Ethernet or RS-232 (cable in option) ．Data storage via: USB key ．Battery type: 4 x Rechargeable 1.2 V Ni-MH AA ．Battery life: 6.5 hours ．External power supply: 9 VDC 1.66 A |
Computer/Mobile device screen
| Model | Description |
|---|---|
| BLU | ．Digital display size: Computer/Mobile device screen ．External trigger: None ．Battery type: Lithium-ion ．Battery life: 5 days while running |
LCD
| Model | Description |
|---|---|
| TUNER | ．Digital display size: 77 x 58 mm LCD ．Data display: Real time, ultrafast tuning needle: tail, bar graph, high/low ．Refresh rate: 4 Hz ．Analog output: 0-1 V, full scale, ±1 % ．External trigger: None ．Battery type: 4 x AA Alkaline ．Battery life: 500 hours with detector ．External power supply: 9 VDC 1.66 A |
| UNO | ．Digital display size: 76 x 57 mm LCD ．Data display: Real time ．Digit height: 32 mm ．External trigger: None ．Battery type: 4 x AA Alkaline ．Battery life: 670 hours with detector ．External power supply: 9 VDC 1.66 A |
PC only
| Model | Description |
|---|---|
| U-LINK (USB) | ．Digital display size: Computer screen ．Data display: Real time, ratio, line plot, histogram, statistics and 3D histogram ．Analog output: 0-2 V, adjustable, full scale, ±1 % ．External trigger: 3.3 to 12 V ．Real-time data transfer: 10 kHz ．Serial commands via: USB ．External power supply: USB 5V, 150 mA |
| U-LINK (RS232) | ．Digital display size: Computer screen ．Data display: Real time, ratio, line plot, histogram, statistics and 3D histogram ．Analog output: 0-2 V, adjustable, full scale, ±1 % ．External trigger: None ．Real-time data transfer: 1 kHz ．Serial commands via: RS-232 ．External power supply: 9-12 V, 200 mA |
| P-LINK (USB) | ．Digital display size: Computer screen ．Data display: Real time, ratio, line plot, histogram, statistics and 3D histogram ．Analog output: 0-2 V, adjustable, full scale, ±1 % ．External trigger: None ．Real-time data transfer: 10 Hz ．Serial commands via: USB |
| P-LINK (RS232) | ．Digital display size: Computer screen ．Data display: Real time, ratio, line plot, histogram, statistics and 3D histogram ．Analog output: 0-2 V, adjustable, full scale, ±1 % ．External trigger: None ．Real-time data transfer: 10 Hz ．Serial commands via: RS-232 ．External power supply: 9 VDC 1.66 A |
| P-LINK-4 (USB) | ．Digital display size: Computer screen ．Data display: Real time, ratio, line plot, histogram, statistics and 3D histogram ．External trigger: None ．Real-time data transfer: 10 Hz ．Serial commands via: USB |
| S-LINK-1 (ETHERNET) | ．Digital display size: Computer screen ．Data display: Real time, ratio, line plot, histogram, statistics and 3D histogram ．External trigger: 3-24 V @ 13 mA, optically isolated ．Serial commands via: USB or Ethernet ．External power supply: 9 VDC 1.66 A |
| S-LINK-2 (ETHERNET) | ．Digital display size: Computer screen ．Data display: Real time, ratio, line plot, histogram, statistics and 3D histogram ．External trigger: 3-24 V @ 13 mA, optically isolated ．Serial commands via: USB or Ethernet |

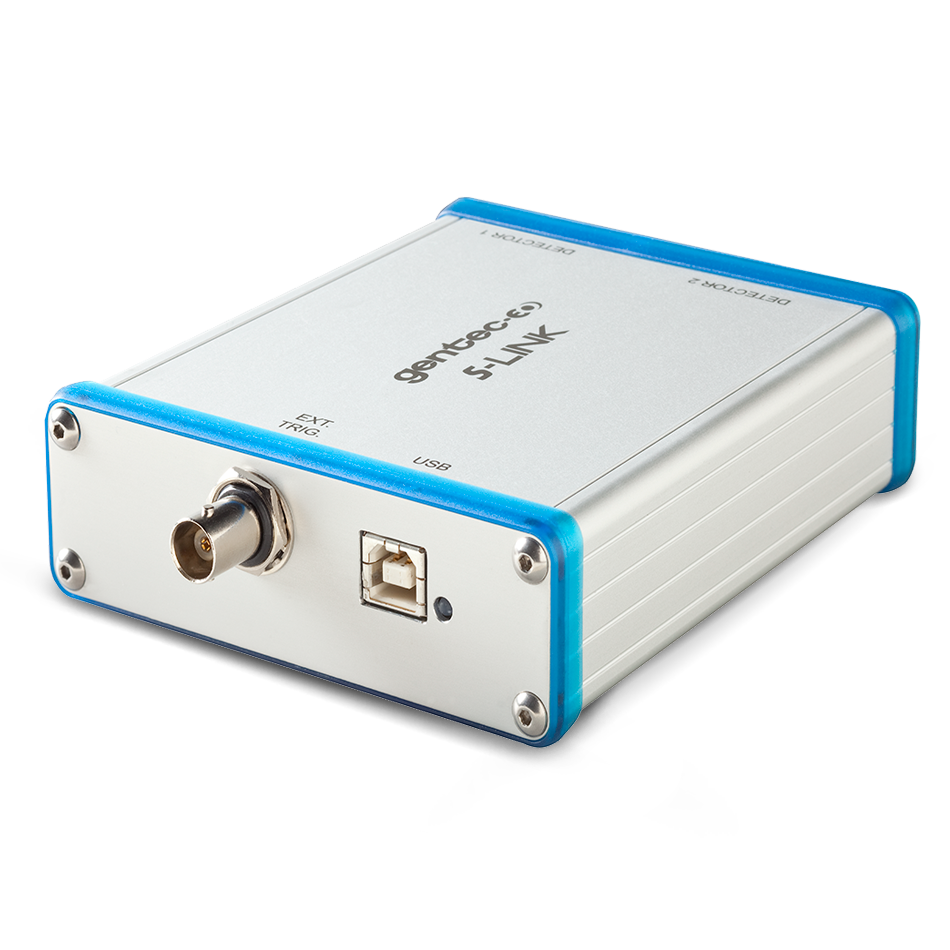

| S-LINK-1 | ．Digital display size: Computer screen ．Data display: Real time, ratio, line plot, histogram, statistics and 3D histogram ．External trigger: 3-24 V @ 13 mA, optically isolated ．Serial commands via: USB |
| S-LINK-2 | ．Digital display size: Computer screen ．Data display: Real time, ratio, line plot, histogram, statistics and 3D histogram ．External trigger: 3-24 V @ 13 mA, optically isolated ．Serial commands via: USB |
| M-LINK | ．Digital display size: Computer screen ．Data display: Real time, scope, averaging, statistics and digital tuning needle ．Analog output: 0-2 V ．External trigger: 4.5 to 10 V @ 20 mA, optically isolated ．Serial commands via: USB |
| MACH6 | ．Digital display size: Computer screen ．Analog output: 0-3 V, BNC ．External trigger: None |
| T-RAD | ．Digital display size: Computer screen ．Analog output: 0-3.6 V ．External trigger: TTL via BNC connector ．Serial commands via: USB ．External power supply: 9-15 V, 1 A |
| QUAD-4TRACK | ．Digital display size: Computer screen ．Analog output: 0-2 V ．External trigger: None ．External power supply: 9 VDC |
| INTEGRA | ．Digital display size: Computer screen ．External trigger: For “INE” models only ．Real-time data transfer: Power: 6.7 Hz, Energy: 5.2 kHz via USB, 200 Hz via RS-232 ．Serial commands via: USB (for “INT” models) or RS-232 (for “IDR” & “INE” models) |
None
| Model | Description |
|---|---|
| T-RAD-ANALOG | ．Digital display size: Computer Screen ．Analog output: BNC ．External trigger: None ．Battery type: 9 V ．External power supply: 9 VDC 1.66 A |
| APM (D) | ．Analog output: BNC ．External trigger: None ．Battery type: 9 V ．External power supply: 9 VDC 1.66 A |
| SDX-1226-2 | ．Analog output: BNC, ± 10 V ．External trigger: None ．Serial commands via: USB ．External power supply: External DC power jack ．Voltage zero: ± 10 V ．-3dB bandwidth: > 100 Hz ．Current zeroing: ± 2% of setting |
| STEP-CONTROLLER | ．Analog output: BNC ．External trigger: None ．External power supply: 9 VDC |
| TRAP-PREAMP | ．Analog output: BNC ．External trigger: None |
