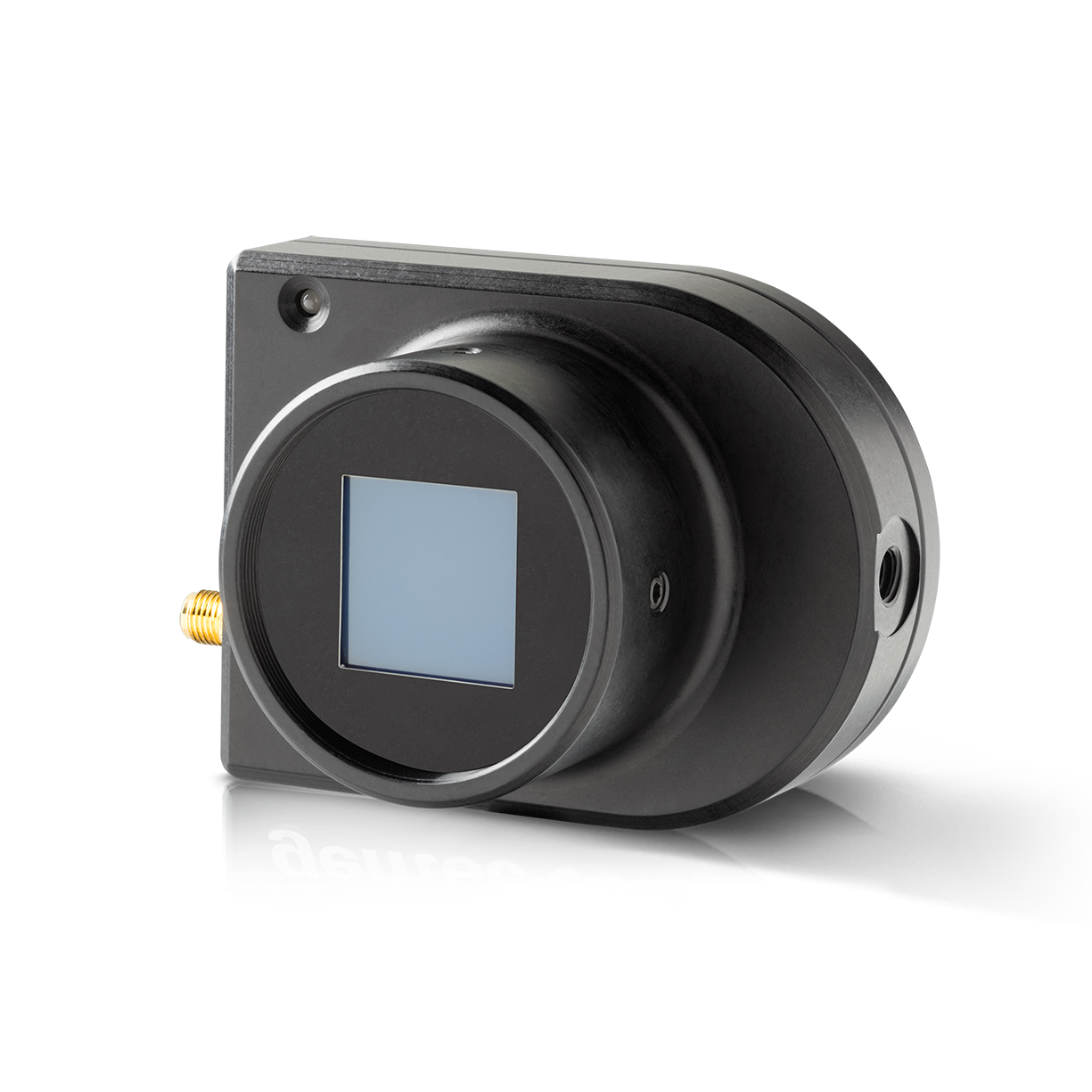

Laser Beam Profilers – BEAMAGE-4M
Beam profiling camera. 4.2 MPixel high-resolution CMOS sensor, ISO-compliant measurements.
| Measurement capabilities | |
|---|---|
| Spectral range | 350 – 1150 nm |
| Minimum measurable beam | 55 μm |
| Sensor technology | CMOS |
| Pixel count | 4.2 MPixels |
| H x V | 2048 x 2048 |
| Beam diameter definitions | D4σ (ISO compliant) 1/e2 along crosshairs (13.5%) FWHM along crosshairs (50%) Custom (%) |
| Shutter type | Global |
| Frame rate | 6.2 fps @ 4.2 MPixels (Full Frame) |
| ADC level | 12 bit (default) / 10 bit (option) |
| RMS noise | 1000:1 (60 dB) |
| Damage thresholds | Description |
|---|---|
| Maximum power density1 | 10 W/cm² |
| Maximum energy density2 | 100 mJ/cm² |
| Maximum power3 | 1 W |
2. At 1064 nm, 10 ns. With ND4 filter.
3. At 1064 nm. With ND4 filter.
| Physical characteristics | |
|---|---|
| Dimensions | 61H x 81.1W x 19.7D mm |
| Weight | 0.14 kg |
| Pixel dimension | 5.5 μm |
| Included filter | ND4 |
| Active area | 11.3 x11.3 mm |
Laser Beam Profilers – BEAMAGE-4M-IR
Beam profiling camera with phosphor coating for IR wavelengths (1495-1595 nm). 4.2 MPixel high-resolution CMOS sensor, ISO-compliant measurements.
| Measurement capabilities | |
|---|---|
| Spectral range | 1495 – 1595 nm |
| Minimum measurable beam | 70 μm |
| Sensor technology | CMOS (with Phosphor Coating) |
| Pixel count | 4.2 MPixels |
| H x V | 2048 x 2048 |
| Beam diameter definitions | D4σ (ISO compliant) 1/e2 along crosshairs (13.5%) FWHM along crosshairs (50%) Custom (%) |
| Shutter type | Global |
| Frame rate | 6.2 fps @ 4.2 MPixels (Full Frame) |
| ADC level | 12 bit (default) / 10 bit (option) |
| RMS noise | 1000:1 (60 dB) |
| Damage thresholds | Description |
|---|---|
| Maximum power density1 | 10 W/cm² |
| Maximum energy density2 | 100 mJ/cm² |
| Maximum power3 | 1 W |
2. At 1064 nm, 10 ns. With ND4 filter.
3. At 1064 nm. With ND4 filter.
| Physical characteristics | |
|---|---|
| Dimensions | 61H x 81.1W x 19.7D mm |
| Weight | 0.14 kg |
| Pixel dimension | 5.5 μm |
| Included filter | ND4 |
| Active area | 11.3 x11.3 mm |
Laser Beam Profilers – BEAMAGE-4M-FOCUS
Beam profiling camera with fiber optic taper for large beams. 4.2 MPixel high-resolution CMOS sensor, ISO-compliant measurements.
| Measurement capabilities | |
|---|---|
| Spectral range | 350 – 1150 nm |
| Pixel multiplication factor (PMF) | 1.8 typical |
| Minimum measurable beam | 70 μm |
| Sensor technology | CMOS (with Fiber Optic Taper) |
| Pixel count | 4.2 MPixels |
| H x V | 2048 x 2048 |
| Beam diameter definitions | D4σ (ISO compliant) 1/e2 along crosshairs (13.5%) FWHM along crosshairs (50%) Custom (%) |
| Shutter type | Global |
| Frame rate | 6.2 fps @ 4.2 MPixels (Full Frame) |
| ADC level | 12 bit (default) / 10 bit (option) |
| RMS noise | 1000:1 (60 dB) |
| Damage thresholds | Description |
|---|---|
| Maximum power density1 | 10 W/cm² |
| Maximum energy density2 | 100 mJ/cm² |
| Maximum power3 | 1 W |
2. At 1064 nm, 10 ns. With ND4 filter.
3. At 1064 nm. With ND4 filter.
| Physical characteristics | |
|---|---|
| Dimensions | 61H x 81.1W x 46.5D mm |
| Weight | 0.24 kg |
| Pixel dimension | 10 μm |
| Included filter | ND4 |
| Active area | 20.5 X 20.5 mm |

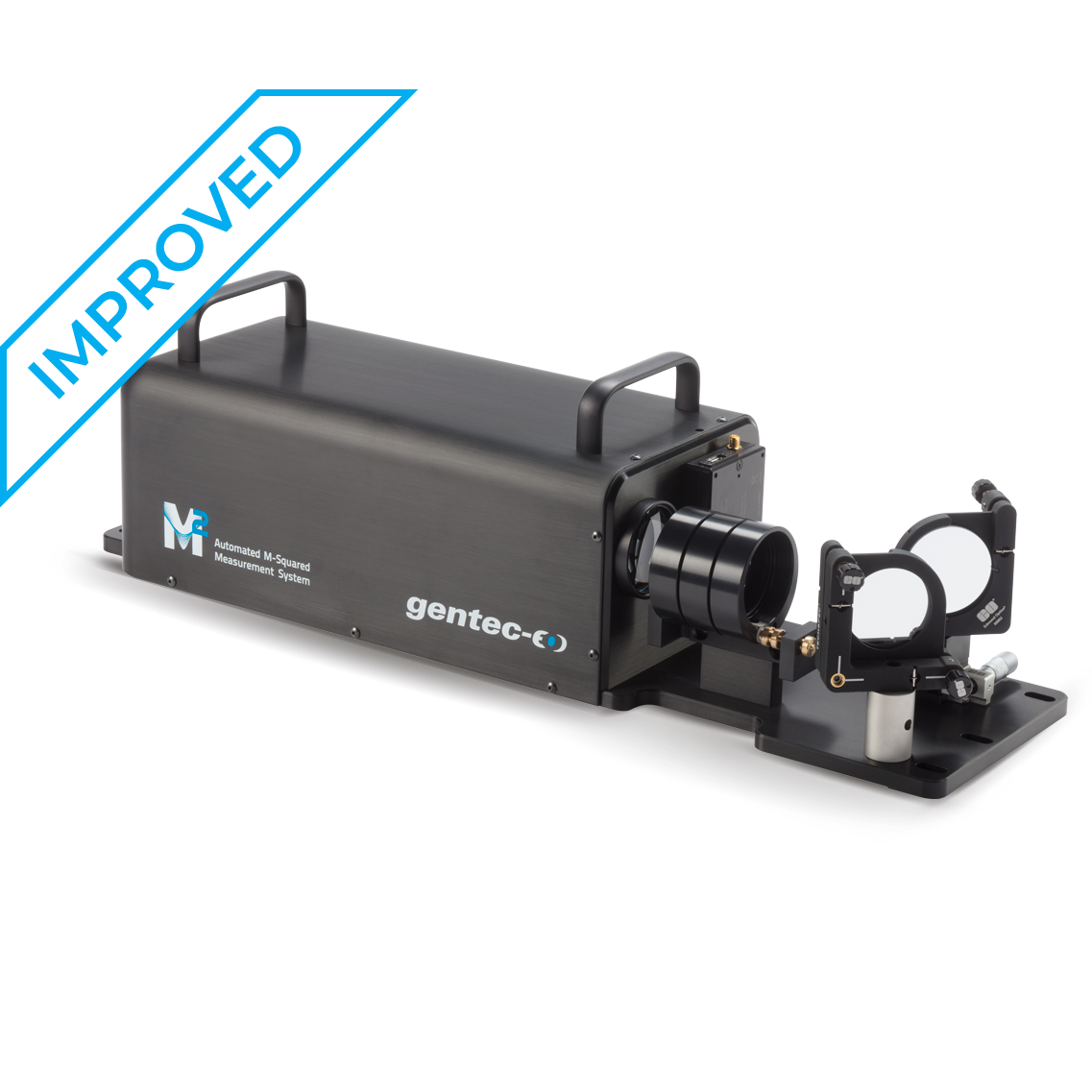

M-squared Measurement system – BEAMAGE-M2
Automated M-squared measurement system. Comes with BEAMAGE-4M, 5 lenses, 3 ND filters, and 2 external beam-steering mirrors.
| Measurement capabilities | |
|---|---|
| Spectral range | 350 – 1100 nm |
| Minimum measurable beam | 55 μm |
| Included filter | 3 flip-mount attenuators for 8 levels of attenuation, from none to ND3.5 |
| Sensor technology | BEAMAGE-4M included |
| Effective aperture | Ø 48 mm optics, 11.3 x 11.3 mm sensor |
| Beam diameter range | 55 μm to 11.3 mm, at the sensor |
| Mechanical travel range | 200 mm |
| Effective optical path range | 400 mm |
| Lens focal length | 5 AR-coated lenses included: 200 mm, 250 mm, 300 mm, 400 mm and 500 mm |
| Typical M2 accuracy | ±5%, depending on the beam quality and optical configuration |
| Typical M2 repeatability | ±2%, depending on the beam quality and optical configuration |
| Applicable light sources | CW and pulsed |
| Typical measurement time | 45 sec with full-frame acquisition |
| Beam diameter definitions | D4σ (ISO compliant) 1/e2 along crosshairs (13.5%) FWHM along crosshairs (50%) Custom (%) |
| Beam quality definitions | Laser beam quality: M2 (ISO-compliant) Beam Propagation factor: BPP Width at waist Waist location and offset Divergence angle Rayleigh length Astigmatism |
| Physical characteristics | |
|---|---|
| Dimensions | 172H x 193W x 602D mm |
| Weight | 6.6 kg |
