Spec
Φ0.5“ (12.7 mm)
| Products | Description | Download |
|---|---|---|
| BSN04 | Ø1/2″ 10:90 (R:T) UVFS Plate Beamsplitter, Coating: 400-700 nm, t = 3 mm |  |
| BSN05 | Ø1/2″ 10:90 (R:T) UVFS Plate Beamsplitter, Coating: 700 – 1100 nm, t = 3 mm | |
| BSN06 | Ø1/2″ 10:90 (R:T) UVFS Plate Beamsplitter, Coating: 1.2 – 1.6 µm, t = 3 mm | |
| BSS04 | Ø1/2″ 30:70 (R:T) UVFS Plate Beamsplitter, Coating: 400-700 nm, t = 3 mm | |
| BSS05 | Ø1/2″ 30:70 (R:T) UVFS Plate Beamsplitter, Coating: 700 – 1100 nm, t = 3 mm | |
| BSS06 | Ø1/2″ 30:70 (R:T) UVFS Plate Beamsplitter, Coating: 1.2 – 1.6 µm, t = 3 mm | |
| BSW04 | Ø1/2″ 50:50 UVFS Plate Beamsplitter, Coating: 400 – 700 nm, t = 3 mm | |
| BSW05 | Ø1/2″ 50:50 UVFS Plate Beamsplitter, Coating: 700 – 1100 nm, t = 3 mm | |
| BSW06 | Ø1/2″ 50:50 UVFS Plate Beamsplitter, Coating: 1.2 – 1.6 µm, t = 3 mm | |
| BST04 | Ø1/2″ 70:30 (R:T) UVFS Plate Beamsplitter, Coating: 400 – 700 nm, t = 3 mm | |
| BST05 | Ø1/2″ 70:30 (R:T) UVFS Plate Beamsplitter, Coating: 700 – 1100 nm, t = 3 mm | |
| BST06 | Ø1/2″ 70:30 (R:T) UVFS Plate Beamsplitter, Coating: 1.2 – 1.6 µm, t = 3 mm | |
| BSX04 | Ø1/2″ 90:10 (R:T) UVFS Plate Beamsplitter, Coating: 400-700 nm, t = 3 mm | |
| BSX05 | Ø1/2″ 90:10 (R:T) UVFS Plate Beamsplitter, Coating: 700 – 1100 nm, t = 3 mm | |
| BSX06 | Ø1/2″ 90:10 (R:T) UVFS Plate Beamsplitter, Coating: 1.2 -1.6 µm, t = 3 mm | |
| BSW19 | Ø1/2″ 50:50 UVFS Plate Beamsplitter, Coating: 250 – 450 nm, t = 3 mm | |
| BSW25 | Ø1/2″ 50:50 UVFS Plate Beamsplitter, Coating: 350 – 1100 nm, t = 3.0 mm | |
| BSW28 | Ø1/2″ 50:50 UVFS Plate Beamsplitter, Coating: 600 – 1700 nm, t = 3.0 mm | |
| BSW22 | Ø1/2″ 50:50 IR Fused Silica Plate BS, Coating: 0.9 – 2.6 µm, t = 3 mm | |
| BSW501 | Ø1/2″ CaF2 Plate Beamsplitter, Coating: 1 – 6 µm, 3 mm Thick | |
| BSW505 | Ø1/2″ CaF2 Plate Beamsplitter, Coating: 2 – 8 µm, 3 mm Thick | |
| BSW705 | Ø1/2″ ZnSe Plate Beamsplitter, Coating: 7 – 14 µm, 3 mm Thick | |
Φ1“ (25.4 mm)
| Products | Description | Download |
|---|---|---|
| BSN10 | Ø1″ 10:90 (R:T) UVFS Plate Beamsplitter, Coating: 400-700 nm, t = 5 mm | |
| BSN11 | Ø1″ 10:90 (R:T) UVFS Plate Beamsplitter, Coating: 700-1100 nm, t = 5 mm | |
| BSN12 | Ø1″ 10:90 (R:T) UVFS Plate Beamsplitter, Coating: 1.2 – 1.6 µm, t = 5 mm | |
| BSS10 | Ø1″ 30:70 (R:T) UVFS Plate Beamsplitter, Coating: 400 – 700 nm, t = 5 mm | |
| BSS11 | Ø1″ 30:70 (R:T) UVFS Plate Beamsplitter, Coating: 700 – 1100 nm, t = 5 mm | |
| BSS12 | Ø1″ 30:70 (R:T) UVFS Plate Beamsplitter, Coating: 1.2 – 1.6 µm, t = 5 mm | |
| BSW10 | Ø1″ 50:50 UVFS Plate Beamsplitter, Coating: 400 – 700 nm, t = 5 mm | |
| BSW11 | Ø1″ 50:50 UVFS Plate Beamsplitter, Coating: 700 – 1100 nm, t = 5 mm | |
| BSW12 | Ø1″ 50:50 UVFS Plate Beamsplitter, Coating: 1.2 – 1.6 µm, t = 5 mm | |
| BST10 | Ø1″ 70:30 (R:T) UVFS Plate Beamsplitter, Coating: 400 – 700 nm, t = 5 mm | |
| BST11 | Ø1″ 70:30 (R:T) UVFS Plate Beamsplitter, Coating: 700 – 1100 nm, t = 5 mm | |
| BST12 | Ø1″ 70:30 (R:T) UVFS Plate Beamsplitter, Coating: 1.2 – 1.6 µm, t = 5 mm | |
| BSX10 | Ø1″ 90:10 (R:T) UVFS Plate Beamsplitter, Coating: 400-700 nm, t = 5 mm | |
| BSX11 | Ø1″ 90:10 (R:T) UVFS Plate Beamsplitter, Coating: 700-1100 nm, t = 5 mm | |
| BSX12 | Ø1″ 90:10 (R:T) UVFS Plate Beamsplitter, Coating: 1.2-1.6 µm, t = 5 mm | |
| BSW20 | Ø1″ 50:50 UVFS Plate Beamsplitter, Coating: 250 – 450 nm, t = 5 mm | |
| BSW26 | Ø1″ 50:50 UVFS Plate Beamsplitter, Coating: 350 – 1100 nm, t = 5.0 mm | |
| BSW29 | Ø1″ 50:50 UVFS Plate Beamsplitter, Coating: 600 – 1700 nm, t = 5.0 mm | |
| BSW23 | Ø1″ 50:50 IR Fused Silica Plate BS, Coating: 0.9 – 2.6 µm, t = 5 mm | |
| BSW511 | Ø1″ CaF2 Plate Beamsplitter, Coating: 1 – 6 µm, 5 mm Thick | |
| BSW510 | Ø1″ CaF2 Plate Beamsplitter, Coating: 2 – 8 µm, 5 mm Thick | |
| BSW711 | Ø1″ ZnSe Plate Beamsplitter, Coating: 1 – 12 µm, 5 mm Thick | |
| BSW710 | Ø1″ ZnSe Plate Beamsplitter, Coating: 7 – 14 µm, 5 mm Thick | |
Φ2“ (50.8 mm)
| Products | Description | Download |
|---|---|---|
| BSN16 | Ø2″ 10:90 (R:T) UVFS Plate Beamsplitter, Coating: 400-700 nm, t = 8 mm | |
| BSN17 | Ø2″ 10:90 (R:T) UVFS Plate Beamsplitter, Coating: 700 – 1100 nm, t = 8 mm | |
| BSN18 | Ø2″ 10:90 (R:T) UVFS Plate Beamsplitter, Coating: 1.2 – 1.6 µm, t = 8 mm | |
| BSS16 | Ø2″ 30:70 (R:T) UVFS Plate Beamsplitter, Coating: 400-700 nm, t = 8 mm | |
| BSS17 | Ø2″ 30:70 (R:T) UVFS Plate Beamsplitter, Coating: 700 – 1100 nm, t = 8 mm | |
| BSS18 | Ø2″ 30:70 (R:T) UVFS Plate Beamsplitter, Coating: 1.2 – 1.6 µm, t = 8 mm | |
| BSW16 | Ø2″ 50:50 UVFS Plate Beamsplitter, Coating: 400 – 700 nm, t = 8 mm | |
| BSW17 | Ø2″ 50:50 UVFS Plate Beamsplitter, Coating: 700 – 1100 nm, t = 8 mm | |
| BSW18 | Ø2″ 50:50 UVFS Plate Beamsplitter, Coating: 1.2 – 1.6 µm, t = 8 mm | |
| BST16 | Ø2″ 70:30 (R:T) UVFS Plate Beamsplitter, Coating: 400 – 700 nm, t = 8 mm | |
| BST17 | Ø2″ 70:30 (R:T) UVFS Plate Beamsplitter, Coating: 700 – 1100 nm, t = 8 mm | |
| BST18 | Ø2″ 70:30 (R:T) UVFS Plate Beamsplitter, Coating: 1.2 – 1.6 µm, t = 8 mm | |
| BSX16 | Ø2″ 90:10 (R:T) UVFS Plate Beamsplitter, Coating: 400-700 nm, t = 8 mm | |
| BSX17 | Ø2″ 90:10 (R:T) UVFS Plate Beamsplitter, Coating: 700 – 1100 nm, t = 8 mm | |
| BSX18 | Ø2″ 90:10 (R:T) UVFS Plate Beamsplitter, Coating: 1.2 -1.6 µm, t = 8 mm | |
| BSW21 | Ø2″ 50:50 UVFS Plate Beamsplitter, Coating: 250 – 450 nm, t = 8 mm | |
| BSW27 | Ø2″ 50:50 UVFS Plate Beamsplitter, Coating: 350 – 1100 nm, t = 8.0 mm | |
| BSW30 | Ø2″ 50:50 UVFS Plate Beamsplitter, Coating: 600 – 1700 nm, t = 8.0 mm | |
| BSW24 | Ø2″ 50:50 IR Fused Silica Plate BS, Coating: 0.9 – 2.6 µm, t = 8 mm | |
| BSW521 | Ø2″ CaF2 Plate Beamsplitter, Coating: 1 – 6 µm, 8 mm Thick | |
| BSW520 | Ø2″ CaF2 Plate Beamsplitter, Coating: 2 – 8 µm, 8 mm Thick | |
| BSW720 | Ø2″ ZnSe Plate Beamsplitter, Coating: 7 – 14 µm, 8 mm Thick | |
25 mm x 36 mm
| Products | Description | Download |
|---|---|---|
| BSN10R | 25 x 36 mm 10:90 (R:T) UVFS Plate Beamsplitter, Coating: 400 – 700 nm, t = 1 mm | |
| BSN11R | 25 x 36 mm 10:90 (R:T) UVFS Plate Beamsplitter, Coating: 700 – 1100 nm, t = 1 mm | |
| BSN12R | 25 mm x 36 mm 10:90 (R:T) UVFS Plate Beamsplitter, Coating: 1.2 – 1.6 µm, t = 1 mm | |
| BSS10R | 25 x 36 mm 30:70 (R:T) UVFS Plate Beamsplitter, Coating: 400 – 700 nm, t = 1 mm | |

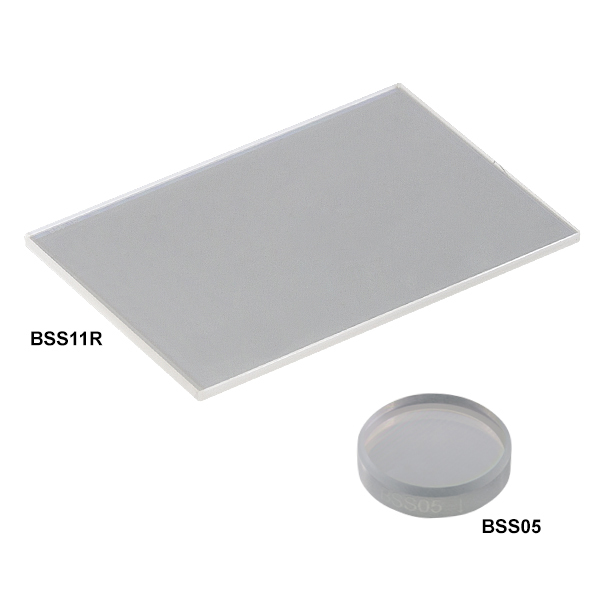

| BSS11R | 25 x 36 mm 30:70 (R:T) UVFS Plate Beamsplitter, Coating: 700 – 1100 nm, t = 1 mm | |
| BSS12R | 25 mm x 36 mm 30:70 (R:T) UVFS Plate Beamsplitter, Coating: 1.2 – 1.6 µm, t = 1 mm | |
| BSW10R | 25 x 36 mm 50:50 UVFS Plate Beamsplitter, Coating: 400 – 700 nm, t = 1 mm | |
| BSW11R | 25 x 36 mm 50:50 UVFS Plate Beamsplitter, Coating: 700 – 1100 nm, t = 1 mm | |
| BSW12R | 25 mm x 36 mm 50:50 UVFS Plate Beamsplitter, Coating: 1.2 – 1.6 µm, t = 1 mm | |
| BST10R | 25 x 36 mm 70:30 (R:T) UVFS Plate Beamsplitter, Coating: 400 – 700 nm, t = 1 mm | |
| BST11R | 25 x 36 mm 70:30 (R:T) UVFS Plate Beamsplitter, Coating: 700 – 1100 nm, t = 1 mm | |
| BST12R | 25 mm x 36 mm 70:30 (R:T) UVFS Plate Beamsplitter, Coating: 1.2 – 1.6 µm, t = 1 mm | |
| BSX10R | 25 x 36 mm 90:10 (R:T) UVFS Plate Beamsplitter, Coating: 400 – 700 nm, t = 1 mm | |
| BSX11R | 25 x 36 mm 90:10 (R:T) UVFS Plate Beamsplitter, Coating: 700 – 1100 nm, t = 1 mm | |
| BSX12R | 25 mm x 36 mm 90:10 (R:T) UVFS Plate Beamsplitter, Coating: 1.2 – 1.6 µm, t = 1 mm | |
| BSW20R | 25 mm x 36 mm 50:50 UVFS Plate Beamsplitter, Coating: 250 – 450 nm, t = 1 mm | |
| BSW26R | 25 mm x 36 mm 50:50 UVFS Plate Beamsplitter, Coating: 350 – 1100 nm, t = 1 mm | |
| BSW29R | 25 mm x 36 mm 50:50 UVFS Plate Beamsplitter, Coating: 600 – 1700 nm, t = 1.0 mm | |
| BSW23R | 25 mm x 36 mm 50:50 IR Fused Silica Plate BS, Coating: 0.9 – 2.6 µm, t = 1 mm | |
| BSW511R | 25 mm x 36 mm CaF2 Plate Beamsplitter, Coating: 1 – 6 µm, 1 mm Thick | |
