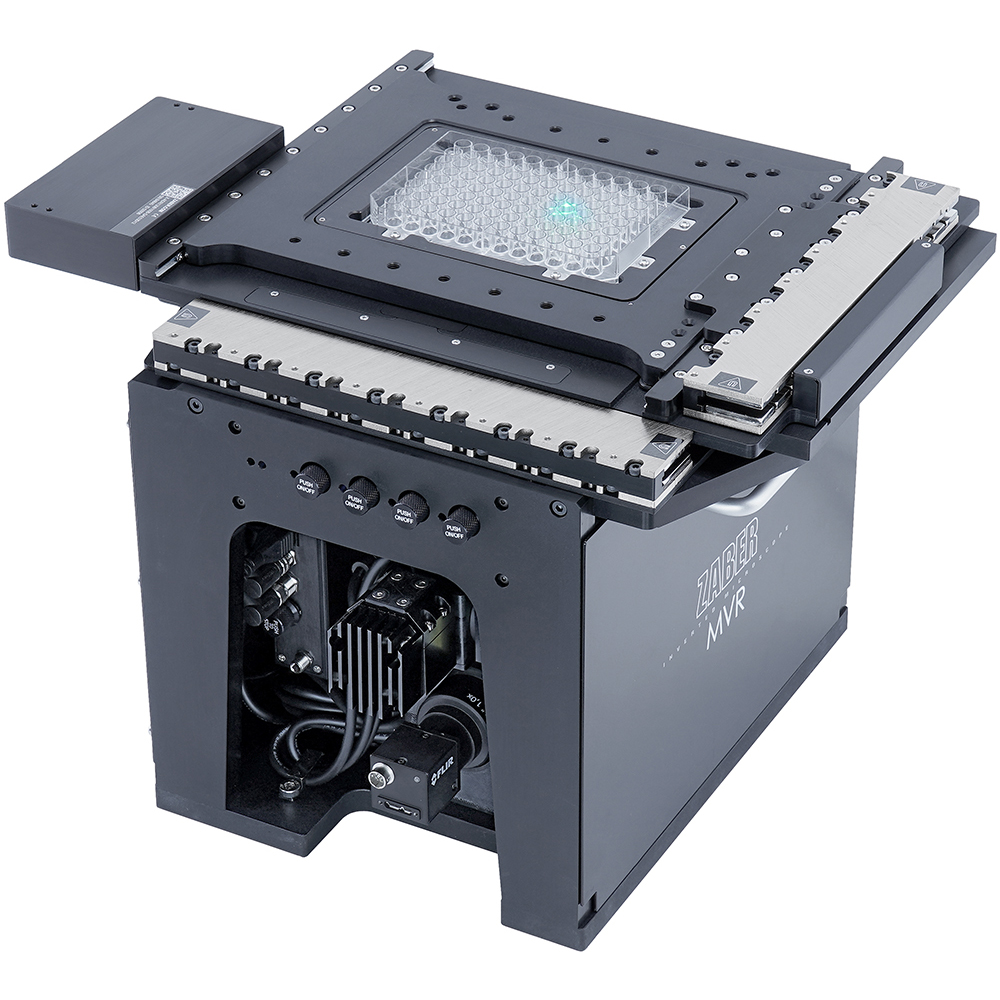

Nucleus™ MVR Inverted Fluorescence Microscopes

Motorized XY and Z-focus movement, filter cube and objective changes allow fully automated whole slide imaging and well plate scanning
Industrial reliability and proven long-term operation in high throughput environments ensure maximum up-time
Modules are easily combined and reconfigured to adapt as your needs change
Supports Zeiss, Nikon, or Olympus optical systems
Zaber Motion Library enables precise, low-latency control over sample positioning, focus, illumination, objective selection and camera triggering in Python, C++, C# and Java
Fully supported by µManager microscope software
Zaber motorized microscope brochure
Custom versions available

Spec

Nucleus™ MVR Inverted Fluorescence Microscopes

Model	Description
MVR	．Focus Stage: X-LDA025A-AE53D12 ．Focus Stage Encoder Resolution: 1 nm ．Focus Stage Minimum Incremental Move: 20 nm ．Focus Stage Repeatability: < 0.2 µm ．Typical Focus Stage Move and Settle Time (200 nm move, < 15 nm, 165 g load): < 25 ms ．Typical Focus Stage Move and Settle Time (500 nm move, < 15 nm, 165 g load): < 35 ms ．Typical Focus Stage Move and Settle Time (1000 nm move, < 15 nm, 165 g load): < 45 ms ．Filter Cube Change Time: 350 ms ．Field Number (FN): 20 mm

Model

Description

MVR

．Focus Stage: X-LDA025A-AE53D12
．Focus Stage Encoder Resolution: 1 nm
．Focus Stage Minimum Incremental Move: 20 nm
．Focus Stage Repeatability: < 0.2 µm
．Typical Focus Stage Move and Settle Time (200 nm move, < 15 nm, 165 g load): < 25 ms
．Typical Focus Stage Move and Settle Time (500 nm move, < 15 nm, 165 g load): < 35 ms
．Typical Focus Stage Move and Settle Time (1000 nm move, < 15 nm, 165 g load): < 45 ms
．Filter Cube Change Time: 350 ms
．Field Number (FN): 20 mm
