Spec
Optical Chopper System
- Harmonic, Subharmonic, and Fractional Harmonic Chopping
- Sum and Difference Reference Outputs
- High Precision 10 Slot Blade Included (MC1F10HP, See Below)
| Model | Description | Download |
|---|---|---|
| MC2000B | Optical Chopper System with MC1F10HP 10/100 Slot (36°) Chopper Blade, 120 VAC Power Cord |  |
Single and Dual Frequency Optical Chopper Blades
- Single-Frequency Blades Available for 4 Hz to 10 kHz Chopping Applications
- MC1F10HP Dual-Frequency Blade Offers 10/100 Slots (Included with MC2000B[-EC] Chopper System)
- MC1F10A Adjustable 10 Slot Blade with User-Adjustable Duty Cycle
- Support for Beam Diameters up to 26.1 mm
- Manufactured from 0.01″ Thick Blue Clock Spring Steel
| Model | Description | Download |
|---|---|---|
| MC1F10HP | 10/100 Slot Dual Frequency Blade for Optical Chopper, 20 Hz to 10 kHz, High Precision | |
| MC1F2 | 2 Slot Blade for Optical Chopper, 4 to 200 Hz, High Precision | |
| MC1F2P10 | 2 Slot Blade for Optical Chopper, 4 to 200 Hz, High Precision | |
| MC1F6P10 | 6 Slot Blade for Optical Chopper, 12 to 600 Hz | |
| MC1F10 | 10 Slot Blade for Optical Chopper, 20 to 1000 Hz | |
| MC1F10A | 10 Slot Blade for Optical Chopper, 20 to 1000 Hz, Adjustable Duty Cycle | |
| MC1F15 | 15 Slot Blade for Optical Chopper, 30 to 1500 Hz | |

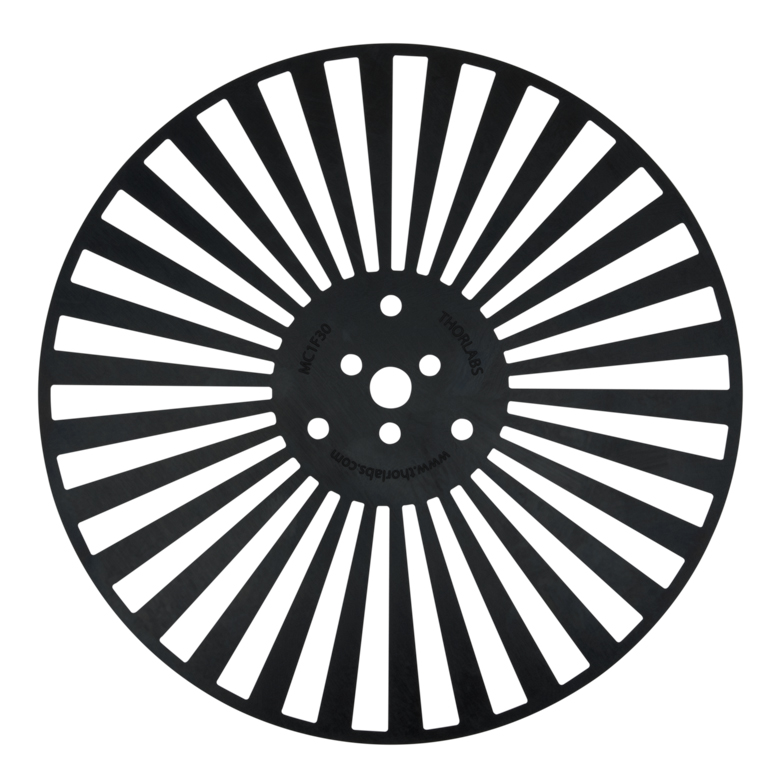

| MC1F30 | 30 Slot Blade for Optical Chopper, 60 to 3000 Hz | |
| MC1F60 | 60 Slot Blade for Optical Chopper, 120 to 6000 Hz | |
| MC1F100 | 100 Slot Blade for Optical Chopper, 200 Hz to 10 kHz | |
Harmonic Frequency Optical Chopper Blades
- Ideal for Ratiometric and Pump-Probe Experiments
- Blades Available for 8 Hz to 6 kHz Chopping Applications
- Support for Beam Diameters up to 14.66 mm
- Manufactured from 0.01″ Thick Blue Clock Spring Steel
| Model | Description | Download |
|---|---|---|
| MC2F47 | Dual Frequency, 4 Inner Slot / 7 Outer Slot Blade for Optical Chopper | |
| MC2F57B | Dual Frequency, 5 Inner Slot / 7 Outer Slot Blade for Optical Chopper | |
| MC2F330 | Dual Frequency, 3 Inner Slot / 30 Outer Slot Blade for Optical Chopper | |
| MC2F860 | Dual Frequency, 8 Inner Slot / 60 Outer Slot Blade for Optical Chopper | |
| MC2F5360 | Dual Frequency, 53 Inner Slot / 60 Outer Slot Blade for Optical Chopper | |
