Spec

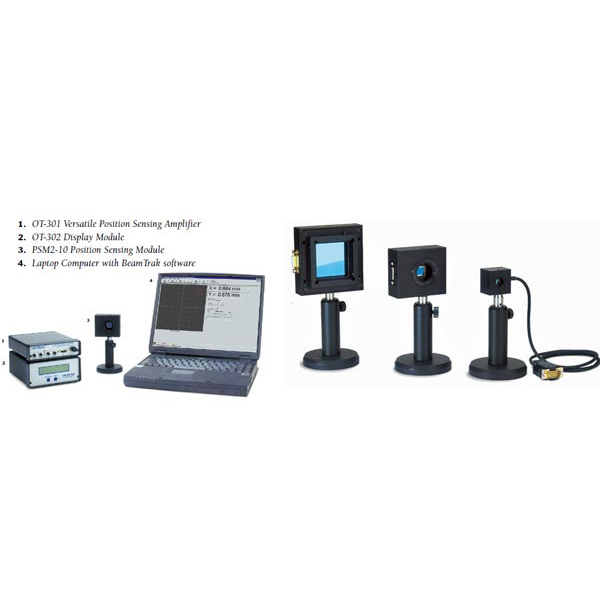

Position Sensing Modules
Features
- Fully Packaged Position Sensing Detectors
- Silicon Linear : 400-1100 nm
Silicon Duolateral : 400-1100 nm
Silicon Quadrant : 400-1100 nm
Germanium Tetra-Lateral : 800-1800 nm - Removable Filter Holder Adapter
- Standard Mounting Holes
- Plug and Play Compatibility with all ON-TRAK Position Sensing Amplifiers
| Model | Description |
|---|---|
| PSM 1-2.5 | ．Active Area (mm): 2.5 x 0.6 ．Detector Type: Linear Silicon ．Wavelength Range: 400-1100 nm ．Package Type: Compact ．Typ. Resolution: 62.5 nm ．Typ. Linearity: 0.10% |
| PSM 1-5 | ．Active Area (mm): 5.0 x 1.0 ．Detector Type: Linear Silicon ．Wavelength Range: 400-1100 nm ．Package Type: Compact ．Typ. Resolution: 125 nm ．Typ. Linearity: 0.10% |
| PSM 1-10 | ．Active Area (mm): 10.0 x 2.0 ．Detector Type: Linear Silicon ．Wavelength Range: 400-1100 nm ．Package Type: Standard ．Typ. Resolution: 250 nm ．Typ. Linearity: 0.10% |
| PSM 1-20 | ．Active Area (mm): 20.0 x 3.0 ．Detector Type: Linear Silicon ．Wavelength Range: 400-1100 nm ．Package Type: Standard ．Typ. Resolution: 500 nm ．Typ. Linearity: 0.10% |
| PSM 1-30 | ．Active Area (mm): 30.0 x 4.0 ．Detector Type: Linear Silicon ．Wavelength Range: 400-1100 nm ．Package Type: Standard ．Typ. Resolution: 750 nm ．Typ. Linearity: 0.10% |
| PSM 2-2 | ．Active Area (mm): 2.0 x 2.0 ．Detector Type: Duolateral Silicon ．Wavelength Range: 400-1100 nm ．Package Type: Compact ．Typ. Resolution: 50 nm ．Typ. Linearity: 0.30% |
| PSM 2-3I | ．Active Area (mm): 3.0 x 3.0 ．Detector Type: Quadrant InGaAs ．Wavelength Range: 900-1700 nm ．Package Type: Compact ．Typ. Resolution: 100 nm ．Typ. Linearity: N/A* |
| PSM 2-4 | ．Active Area (mm): 4.0 x 4.0 ．Detector Type: Duolateral Silicon ．Wavelength Range: 400-1100 nm ．Package Type: Compact ．Typ. Resolution: 100 nm ．Typ. Linearity: 0.30% |
| PSM 2-4Q | ．Active Area (mm): 4.0 x 4.0 ．Detector Type: Quadrant Silicon ．Wavelength Range: 400-1100 nm ．Package Type: Compact ．Typ. Resolution: 100 nm ．Typ. Linearity: N/A* |
| PSM 2-5G | ．Active Area (mm): 5.0 x 5.0 ．Detector Type: Pincushion Tetralateral Germanium ．Wavelength Range: 800-1800 nm ．Package Type: Compact ．Typ. Resolution: 5 μm ．Typ. Linearity: – |
| PSM 2-10 | ．Active Area (mm): 10.0 x 10.0 ．Detector Type: Duolateral Silicon ．Wavelength Range: 400-1100 nm ．Package Type: Standard ．Typ. Resolution: 250 nm ．Typ. Linearity: 0.30% |
| PSM 2-10Q | ．Active Area (mm): 9.0 x 9.0 ．Detector Type: Quadrant Silicon ．Wavelength Range: 400-1100 nm ．Package Type: Standard ．Typ. Resolution: 100 nm ．Typ. Linearity: N/A* |
| PSM 2-10G | ．Active Area (mm): 10.0 x 10.0 ．Detector Type: Pincushion Tetralateral Germanium ．Wavelength Range: 800-1800 nm ．Package Type: Standard ．Typ. Resolution: 5 μm ．Typ. Linearity: – |
| PSM 2-20 | ．Active Area (mm): 20.0 x 20.0 ．Detector Type: Duolateral Silicon ．Wavelength Range: 400-1100 nm ．Package Type: Standard ．Typ. Resolution: 500 nm ．Typ. Linearity: 0.30% |
| PSM 2-45 | ．Active Area (mm): 45.0 x 45.0 ．Detector Type: Duolateral Silicon ．Wavelength Range: 400-1100 nm ．Package Type: Standard ．Typ. Resolution: 1.25 μm ．Typ. Linearity: 0.30% |
Position Sensing Amplifier
Features
- X, Y Analog Position Output Voltages
- Sum Output
- Wide Dynamic Range: 0.1 μA to 1.5 mA
- DC to 15kHz
- Compatible With All Position Sensing Detectors
- Zero Offset/Nulling
- Calibration Adjust
- Automatic Detector Bias
- Position Independent of Beam Intensity
| Model | OT-301 |
|---|---|
| transimpedance Gain (V/A) | 4 x 103 to 4 x 106 |
| Input Current Range | 0.1 μA to 1.5 mA |
| Output Voltage | Position X, Y ±10V, Sum 0 – 6V |
| Zero Offset (Offset Null) | ±1V Each Axis |
| Detector Bias | ±10% of reading |
| 6 | 0V ± 5V (depending on detector) |
| Linearity | ± 0.1% |
| Frequency Response | DC to 15 kHz (range dependent) |
| Output Connectors | BNC |
| Input Connector | 9 Pin D Sub (DB9) |
| Power Requirement | ± 12V DC @ 300mA (AC Adapter) |
| Dimensions | 1.5 x 5.5 x 6.00 inches (H x W x D) |
Display Module
Features
- LCD Display of Absolute Position
- LCD Backlight
- X, Y Position and Sum Display
- Metric (mm) or English (in)
- RS-232 Interface
- Push Button Zero Offset
- Computer Controlled or Stand Alone
- Front Panel Push Button Control
- High Resolution 0.1 Micron (0.0001″)
- Display Update Control 0.1 To 25.5 Second Update Speed
- Calibration Features for all Size Detectors
- Fast/Slow Averaging
| Model | OT-302D |
|---|---|
| Input Voltage Range X, Y and Sum | 0 to ± 10V |
| Update Speed | 0.1 sec to 25.5 sec |
| Power Supply | 12V DC 500mA wall adapter |
| Size | 2.5 x 5.5 x 6.5 inches (H x W x D) |
| RS-232 | 9600 baud rate, 8 bits, 1 stop bit, no parity |
| Weight | 1 lb. 10 oz. |
| Display Resolution | 0.0001 inch (0.0001 mm) |
Portable Laser Alignment System
Anyone Can Operate It.
Concentrate on your work, not your alignment system. The OT-4040 couldn’t be easier to operate. In fact, even first-time operators can be up-andrunning in less than five minutes with hardly a glance at the instruction manual. The system is that simple and intuitive.
- Cost Effective. Outperforms laser tracking systems in this specific application, at a fraction of the price.
- Ultra Precise. Eliminates margin of error associated with subjective manual approaches.
- Real-Time Feedback. Enables user to make on-the-spot alignment adjustments.
- Faster Measurement. Reduces man hours and facilitates project efficiency.
- Maximizes Range. Perform measurements at distances up to 300 feet.
- Simultaneous Measurement. Enables simultaneous measurement from multiple targets.
- Data Analysis. Position data can be monitored, stored and analyzed by a computer.
| OT-4040 LL Ultralign Laser | |
|---|---|
| Power Output | Class IIA (<1 mW visible red) |
| Wavelength | 635 nm |
| Beam Diameter | 8 to 12 mm |
| Beam Profile | Circular gaussian, TEM00 |
| Modulation Frequency | 10 Hz |
| Operating Distance | 0 to 300 feet (100 m) |
| Centering | ± 0.002 inches (0.05 mm) |
| Controls | On /off switch |
| NiMH Battery Lifetime | 24 hours continuous operation |
| Power Requirement | 12V/1A DC wall charger |
| Weight | 8 lbs. (3.64 kg.) |
| Overall Length | 14.5 inches (368.3 mm) |
| Enclosure | NAS standard 2.2498 inches (57.15 mm) diameter |
| OT-4040 TTS4 Transparent Target | |
|---|---|
| Position Sensing Area | 25 mm diameter |
| Resolution | 0.001 inches (0.01 mm) |
| Centering | ± 0.002 inches (0.05 mm) to NAS mount |
| Weight | 2.75 lbs. (1.25 kg.) |
| Size | NAS mount: 2.2498″ x 3.0″ (57.15 x 76 mm) Housing: 3.5″ x 3.5″ x 3.1″ (89 x 89 x 78 mm) |
| Laser Acquisition Indicator | Red LED flashes simultaneously with laser pulse |
| OT-4040 CPU Central Processing Unit | |
|---|---|
| Resolution | 0.001 inches |
| Power | Rechargeable NiMH batteries DC wall charger |
| Battery Life | 10-12 hours, depends on brightness |
| Display | LED ± 4 digit, programmable |
| Communications | RS-232 ASCII format |
| Weight | 32 oz. |
| Dimensions | 6 x 5 x 1.75 inches (H x W x D) |
| OT-4040 TS4 Reference Target | |
|---|---|
| Position Sensing Area | 25 mm diameter |
| Resolution | 0.001 inches (0.01 mm) |
| Centering | ± 0.002 inches (0.05 mm) to NAS mount |
| Weight | 2 lbs. (0.9 kg.) |
| Size | NAS mount: 2.2498″ x 2.75″ (57.15 x 76 mm) Housing: 3.5″ x 3.5″ x 1.6″ (89 x 89 x 40 mm) |
| Laser Acquisition Indicator | Red LED flashes simultaneously with laser pulse |
