Spec
Samba
FEATURES
- White light emission available starting 340 nm up to 2400 nm
- Total average power higher than 100 mW up to more than 250 mW
- High spatial coherence single mode TEM00 laser
- Great total power stability
- Subnanosecond pulses
- Compact turnkey benchtop device or Ultra compact module SCM available
APPLICATIONS
- Spectroscopy
- High resolution imaging (OCT, confocal microscopy)
- Flow cytometry
- LIDAR
- Optical components testing
Model | Description |
---|---|
SAMBA-UV | .Spectral bandwidth minimum: < 340 nm .Spectral bandwidth maximum: > 1900 nm .Total average power: > 100 mW .Nominal repetition rate: ~ 30 kHz .Triggerable range: 10 Hz up to 20 kHz .Pulse width: 0.7-1.3 ns .Total power stability: +/- 1% .Spatial profile: Singlemode |
SAMBA-W | .Spectral bandwidth minimum: < 500 nm .Spectral bandwidth maximum: > 1900 nm .Total average power: > 200 mW .Nominal repetition rate: ~ 30 kHz .Triggerable range: 10 Hz up to 20 kHz .Pulse width: 0.7-1.3 ns .Total power stability: +/- 1% .Spatial profile: Singlemode |
SAMBA-450 | .Spectral bandwidth minimum: < 450 nm .Spectral bandwidth maximum: > 2400 nm .Total average power: > 150 mW .Nominal repetition rate: ~ 30 kHz .Triggerable range: 10 Hz up to 20 kHz .Pulse width: 0.7-1.3 ns .Total power stability: +/- 1% .Spatial profile: Singlemode |
SAMBA-400 | .Spectral bandwidth minimum: < 400 nm .Spectral bandwidth maximum: > 2400 nm .Total average power: > 100 mW .Nominal repetition rate: ~ 30 kHz .Triggerable range: 10 Hz up to 20 kHz .Pulse width: 0.7-1.3 ns .Total power stability: +/- 1% .Spatial profile: Singlemode |
Download |
---|
samba.pdf |
Opera
FEATURES
- Pump/Stokes dual output
- White light emission from visible to near IR
- Spatially singlemode (TEM00)
- Sub-nanosecond pulses
- High spectral resolution
- Compact device
- SHG 532 nm output option
APPLICATIONS
- Multicolor CARS imaging
Model | Description |
---|---|
OPERA HPA | .Spectral bandwidth minimum: < 420 nm .Spectral bandwidth maximum: > 2400 nm .Total average power @ Stokes output: > 70 mW .Total average power @ pump output: > 70 mW .Repetition rate: > 30 kHz .Pulse width: < 1 ns .Spatial profile: Singlemode |
OPERA HP | .Spectral bandwidth minimum: < 420 nm .Spectral bandwidth maximum: > 2400 nm .Total average power @ Stokes output: > 500 mW .Total average power @ pump output: > 1000 mW .Repetition rate: > 1 MHz .Pulse width: < 50 ps .Spatial profile: Singlemode |
Download |
---|
gene_opera.pdf |
Disco
FEATURES
- Broad spectrum from UV (350 nm) to near IR
- Externally triggered laser via TTL signal input
- Spatially singlemode gaussian TEM00
- Sub-nanosecond pulses (0.8 up to 1.1 ns)
- Low timing jitter < 20 ns (pulse to pulse)
- kHz repetition rate
APPLICATIONS
- Spectroscopy (TAS, CEAS…)
- High resolution imaging (OCT, confocal microscopy)
- Flow cytometry
- LIDAR
- Optical components testing
Model | Description |
---|---|
DISCO-2 | .Spectral bandwidth minimum: < 420 nm .Spectral bandwidth maximum: > 2400 nm .Repetition rate: 2 kHz .Timing jitter: < 20 ns .Pulse width: 0.7-1.3 ns .Total average power: > 10 mW* .Spatial profile: Singlemode TEM00 |
DISCO-2-UV | .Spectral bandwidth minimum: < 350 nm .Spectral bandwidth maximum: > 2200 nm .Repetition rate: 2 kHz .Timing jitter: < 20 ns .Pulse width: 0.7-1.3 ns .Total average power: > 5 mW* .Spatial profile: Singlemode TEM00 |
Download |
---|
gene_disco.pdf |
Electro VISIR
FEATURES
- Broad spectrum from visible to near IR up to 2400 nm
- Spatially singlemode
- Sub-nanosecond and nanosecond pulses
- Low timing jitter (< 20 ns)
- Compact
- Spike-free in the band 900 → 1500 nm
- Maintenance free
APPLICATIONS
- Spectroscopy
- Optical component testing
- High resolution imaging (OCT)
- Metrology
Model | Description |
---|---|
ELECTRO 100 VISIR | .Spectral bandwidth (min): < 500 nm .Spectral bandwidth (max): > 2400 nm .Total average power: > 250 mW .Repetition rate: 100 kHz .Pulse width: < 1 ns .Timing jitter: < 20 ns .Spatial profile: Singlemode |
ELECTRO 250 VISIR | .Spectral bandwidth (min): < 450 nm .Spectral bandwidth (max): > 2400 nm .Total average power: > 650 mW .Repetition rate: 250 kHz .Pulse width: < 1 ns .Timing jitter: < 20 ns .Spatial profile: Singlemode |
Download |
---|
MP_Visir.pdf |
Electro VIS
FEATURES
- Broad spectrum from < 420 nm to > 2400 nm
- Spatially singlemode
- Low timing jitter
- MHz repetition rate
- Sub 100 ps pulse width
APPLICATIONS
- Spectroscopy
- Optical component testing
- High resolution imaging (OCT)
- Metrology
Model | Description |
---|---|
ELECTRO VIS 400 | .Spectral bandwidth minimum: > 400 nm .Spectral bandwidth maximum: > 2400 nm .Repetition rate: 3 MHz .Total Average power: > 1.75 W .Visible power (< 750 nm): > 400 mW .Seed pulse width: < 100 ps .Power stability: < +/- 1% (pk to pk) .Spatial profile: Singlemode |
ELECTRO VIS 470 | .Spectral bandwidth minimum: > 400 nm .Spectral bandwidth maximum: < 2400 nm .Repetition rate: 10 MHz .Total Average power: > 5 W .Visible power (< 750 nm): > 1000 mW .Seed pulse width: < 100 ps .Power stability: < +/- 1% (pk to pk) .Spatial profile: Singlemode |
Download |
---|
MP_Vis.pdf |
New wave
FEATURES
- Adjustable repetition rate 250 kHz – 2 MHz
- Adjustable pulse width 100 ps – 2 ns
- White light emission from visible to near IR
- Total average power up to 2 W
- Spatially singlemode TEM00
- User friendly control panel
APPLICATIONS
- Spectroscopy
- High resolution imaging (OCT, confocal microscopy)
- Materials characterization
- Lifetime measurement
- Metrology, LIDAR
Model | Description |
---|---|
NEW WAVE | .Spectral bandwidth minimum: > 400 nm .Spectral bandwidth maximum: < 2400 nm .Repetition rate: Adjustable from 250 kHz to 2 MHz by 50 kHz step .Pulse width (seed laser): Adjustable from 150 ps to 2 ns .Average power: Up to 2 W .Spatial profile: Singlemode .Output: Collimated .Polarization: Unpolarized |
Download |
---|
hp_new_wave.pdf |
Rock
FEATURES
- Picosecond pulses
- MHz repetition rate
- White light emission from visible to near IR
- Spatially singlemode
- NIM output
- Pulse-picker Option
- Maintenance free
- Compatible with all LEUKOS accessories (monochromator)
APPLICATIONS
- Microscopy (FLIM, CLSM, STED…)
- Lifetime measurement
- Spectroscopy
- Optical components testing
- High resolution imaging
- Metrology
Model | Description |
---|---|
ROCK 400 | .Spectral bandwidth minimum: > 400 nm .Spectral bandwidth maximum: < 2400 nm .Repetition rate: 20, 40, 60 MHz .Pulse width (seed laser): 6 ps .Average power: 2, 4, 5 W .Spatial profile: Singlemode .Output: Collimated .Polarization: Unpolarized |
ROCK 450 | .Spectral bandwidth minimum: > 450 nm .Spectral bandwidth maximum: < 2400 nm .Repetition rate: 20, 40, 60, 80 MHz .Pulse width (seed laser): 6 ps .Average power: 2, 4, 5 W .Spatial profile: Singlemode .Output: Collimated .Polarization: Unpolarized |
ROCK 480 | .Spectral bandwidth minimum: > 480 nm .Spectral bandwidth maximum: < 2400 nm .Repetition rate: 20, 40, 60, 80 MHz .Pulse width (seed laser): 6 ps .Average power: 2, 4, 6 W .Spatial profile: Singlemode .Output: Collimated .Polarization: Unpolarized |
Download |
---|
hp_rock.pdf |
Electro IR
FEATURES
- Broad spectrum from 900 to 2800 nm
- Spatially singlemode
- Pulse width from 40ps to 1ns
- Low timing jitter (< 20 ns)
- Externally triggered source
- Flat spectrum in the NIR band
- Option: minimum wavelength down to 700 nm
APPLICATIONS
- Spectroscopy
- Optical component testing
- High resolution imaging (OCT)
- Metrology
Model | Description |
---|---|
ELECTRO 100 IR | .Spectral bandwidth minimum: > 900 nm .Spectral bandwidth maximum: < 3000 nm .Total average power: > 500 mW .Repetition rate: 100 kHz .Timing jitter: < 20 ns .Spatial profile: Singlemode .Pulse width: < 1 ns |
ELECTRO 250 IR | .Spectral bandwidth minimum: > 900 nm .Spectral bandwidth maximum: < 3000 nm .Total average power: > 1300 mW .Repetition rate: 250 kHz .Timing jitter: < 20 ns .Spatial profile: Singlemode .Pulse width: < 1 ns |
ELECTRO 2000 IR | .Spectral bandwidth minimum: > 900 nm .Spectral bandwidth maximum: < 2800 nm .Total average power: < 400 mW .Repetition rate: 2 MHz .Timing jitter: < 20 ns .Spatial profile: Singlemode .Pulse width: < 100 ps |
Download |
---|
ir-mid_ir.pdf |
Electro MIR
FEATURES
- Mid IR supercontinuum laser
- Broad spectrum from 900 to 9500 nm
- Spatially singlemode
- High power
- High repetition rate
- Long lifetime
- Maintenance free
APPLICATIONS
- Spectroscopy
- Chemical fingerprinting
- Metrology
- High resolution imaging
Model | Description |
---|---|
ELECTRO MIR 4.1 | .Spectral bandwidth minimum: > 900 nm .Spectral bandwidth maximum: < 4100 nm .Total average power: > 800 mW .Pulse width: > 100 ps .Repetition rate: 250 kHz .Timing jitter: < 10 ns .Spatial profile: Singlemode |
ELECTRO MIR 4.8 | .Spectral bandwidth minimum: > 900 nm .Spectral bandwidth maximum: < 4800 nm .Total average power: > 500 mW .Pulse width: > 100 ps .Repetition rate: 250 kHz .Timing jitter: < 10 ns .Spatial profile: Singlemode |
ELECTRO MIR 9 | .Spectral bandwidth (min): 1100 cm⁻¹ (9000 nm) .Spectral bandwidth (max): 4000 cm⁻¹ (2500 nm) .Total average power: > 12 mW (typ. 15 mW) .Repetition rate: > 100 kHz .Seed pulse duration: > 100 ps .Power stability: < +/- 2 % .Spatial mode: Singlemode .Polarization state: Unpolarized .Output connection: FC/APC Collimator (~ 1.5 meter armored cable) .Synchronization output: External trigger output .Interlock connector: 2-pin LEMO .Control interface: Front panel and USB .Operating temperature: +10°C to +40°C (non-condensing) .Weight: < 8 kg .Dimensions (LxWxH): 485 x 250 x 134 mm .Power requirements: 100-240 V, 50/60 Hz |
Download |
---|
nir-mid_mir.pdf |
electromir9.pdf |

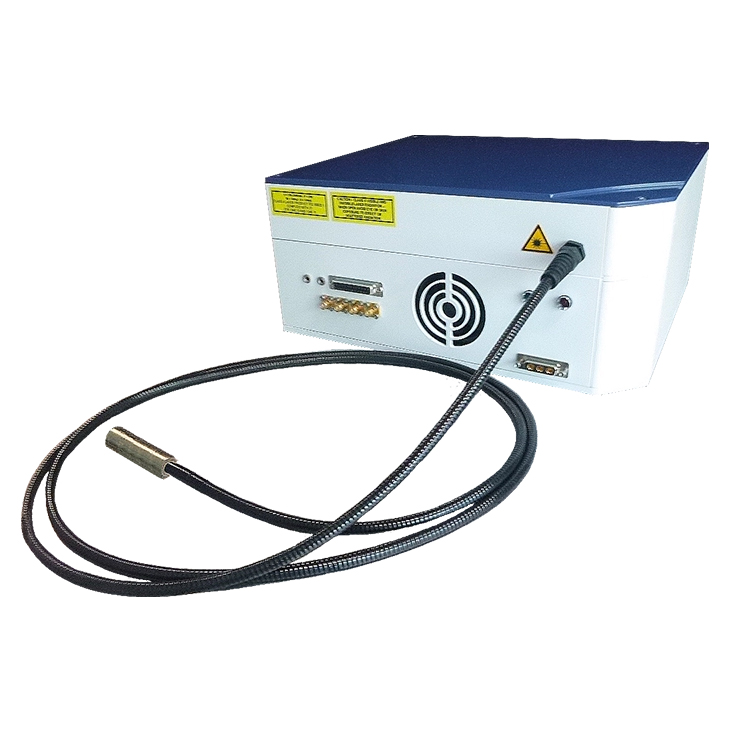

Indus forte
FEATURES
- White light emission from visible to near IR
- Spatially singlemode
- Picosecond pulses
- MHz repetition rate
- OEM design, easy for integration
- Up to 4W
- Cost effective solution
APPLICATIONS
- Microscopy
- Spectrosocpy
- Metrology
- LIDAR
Model | Description |
---|---|
INDUS FORTE 400 | .Spectral bandwidth (min): > 410 nm .Spectral bandwidth (max): < 2300 nm .Total average power: 2 W, 4 W .Repetition rate: 20-60 MHz .Pulse width (seed laser): 6 ps .Spatial profile: Singlemode .Polarization: Unpolarized |
INDUS FORTE 450 | .Spectral bandwidth (min): > 450 nm .Spectral bandwidth (max): < 2300 nm .Total average power: 2 W, 4 W .Repetition rate: 20-60 MHz .Pulse width (seed laser): 6 ps .Spatial profile: Singlemode .Polarization: Unpolarized |
INDUS FORTE 500 | .Spectral bandwidth (min): > 480 nm .Spectral bandwidth (max): < 2300 nm .Total average power: 2 W, 4 W .Repetition rate: 20-60 MHz .Pulse width (seed laser): 6 ps .Spatial profile: Singlemode .Polarization: Unpolarized |
Download |
---|
indus.pdf |
Indus piano
FEATURES
- White light emission from UV to near NIR
- Spatially singlemode
- OEM format
- Flexible fibered output
- Small footprint
- Ultra-compact mechanical packaging available with SAMBA product line
APPLICATIONS
- Spectroscopy
- High resolution imaging
- Flow cytometry
- Metrology
- LIDAR
- Optical components testing
Model | Description |
---|---|
INDUS PIANO UV | .Spectral bandwidth minimum: < 350 nm .Spectral bandwidth maximum: > 1900 nm .Total average power: > 100 mW .Nominal repetition rate: ~ 30 kHz .Triggerable range: 10 Hz – 20 kHz .Pulse width: 0.7 – 1.3 ns .Total power stability: <+/- 1% .Spatial profile: Singlemode .Spectrum and options: See complete datasheet |
INDUS PIANO 400 | .Spectral bandwidth minimum: < 400 nm .Spectral bandwidth maximum: > 2400 nm .Total average power: > 100 mW .Nominal repetition rate: ~ 30 kHz .Triggerable range: 10 Hz – 20 kHz .Pulse width: 0.7 – 1.3 ns .Total power stability: <+/- 1% .Spatial profile: Singlemode .Spectrum and options: See complete datasheet |
INDUS PIANO 450 | .Spectral bandwidth minimum: < 450 nm .Spectral bandwidth maximum: > 2400 nm .Total average power: > 150 mW .Nominal repetition rate: ~ 30 kHz .Triggerable range: 10 Hz – 20 kHz .Pulse width: 0.7 – 1.3 ns .Total power stability: <+/- 1% .Spatial profile: Singlemode .Spectrum and options: See complete datasheet |
INDUS PIANO W | .Spectral bandwidth minimum: < 550 nm .Spectral bandwidth maximum: > 1900 nm .Total average power: > 200 mW .Nominal repetition rate: ~ 30 kHz .Triggerable range: 10 Hz – 20 kHz .Pulse width: 0.7 – 1.3 ns .Total power stability: <+/- 1% .Spatial profile: Singlemode .Spectrum and options: See complete datasheet |
Download |
---|
indus.pdf |
