Adjustable Optics Mounts

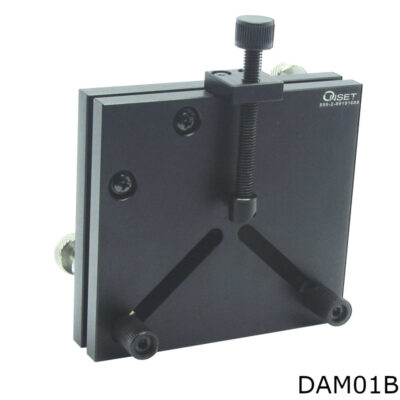

DAM01B

  • Optics are mounted with three Teflon contacts free from stress and damage.
  • Suitable for various shapes.

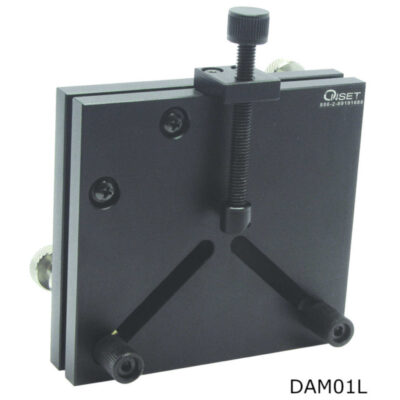

DAM01B & DAM01L

  • Pad points can be adjusted to accommodate large size mirrors.

DAC01 & DAC01L

  • DAC01 series Lens holders feature three adjustable Teflon setscrews to accommodate a variable diameter lens.
  • DAM01 series holder holds variable diameter and almost any shape optics with a spring-loaded adjustable height setscrew on the bottom V-groove.

  ◆  Also available for British system.(General products for Metric system) ◆  Custom design is available on request

Spec

Adjustable Optics Mount
ModelDescriptionDownload

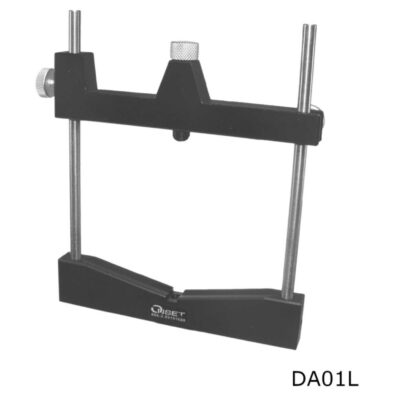

DA01LHolding Size: 10-100mm

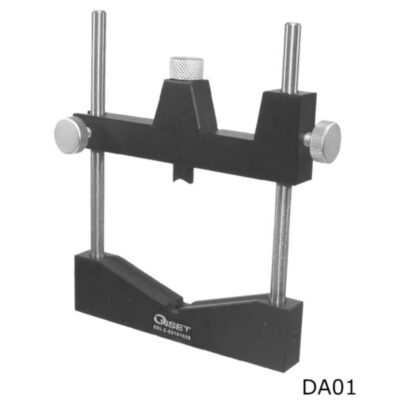

DA01Holding Size: 5-75mm
DA01SHolding Size: 5-50mm
DAM01BHolding Size: Φ18-Φ60mm
DAM01LHolding Size: Φ20-Φ90mm
DAC01Holding Size: Φ25-Φ50mm
DAC01LHolding Size: Φ50-Φ70mm
