Spec
AI25 Auto Iris
- Operation Range: 1.5 – 25.0 mm
- Closing speed: 0.22 seconds
- Resolution (mm/step): 0.44 ± 0.33
- Low-profile form-factor
- Optional high speed shutter attachment available
- Optional iris/shutter housing available
- RoHS Compliant
- Configured for the AIC10 Iris Controller
| Model | Description |
|---|---|
| AI25N1T | ．Blade Option: Teflon® Coated S.S. Blades ．Housing: Un-housed ．Shutter Attachment: No |
| AI25N6T | ．Blade Option: Teflon® Coated S.S. Blades ．Housing: #6 Housing ．Shutter Attachment: No |
| AI25S1T | ．Blade Option: Teflon® Coated S.S. Blades ．Housing: #6 Housing ．Shutter Attachment: No |
| AI25S6T | ．Blade Option: Teflon® Coated S.S. Blades ．Housing: #6 Housing ．Shutter Attachment: Yes |
| Download |
|---|
| AI25 Datasheet |

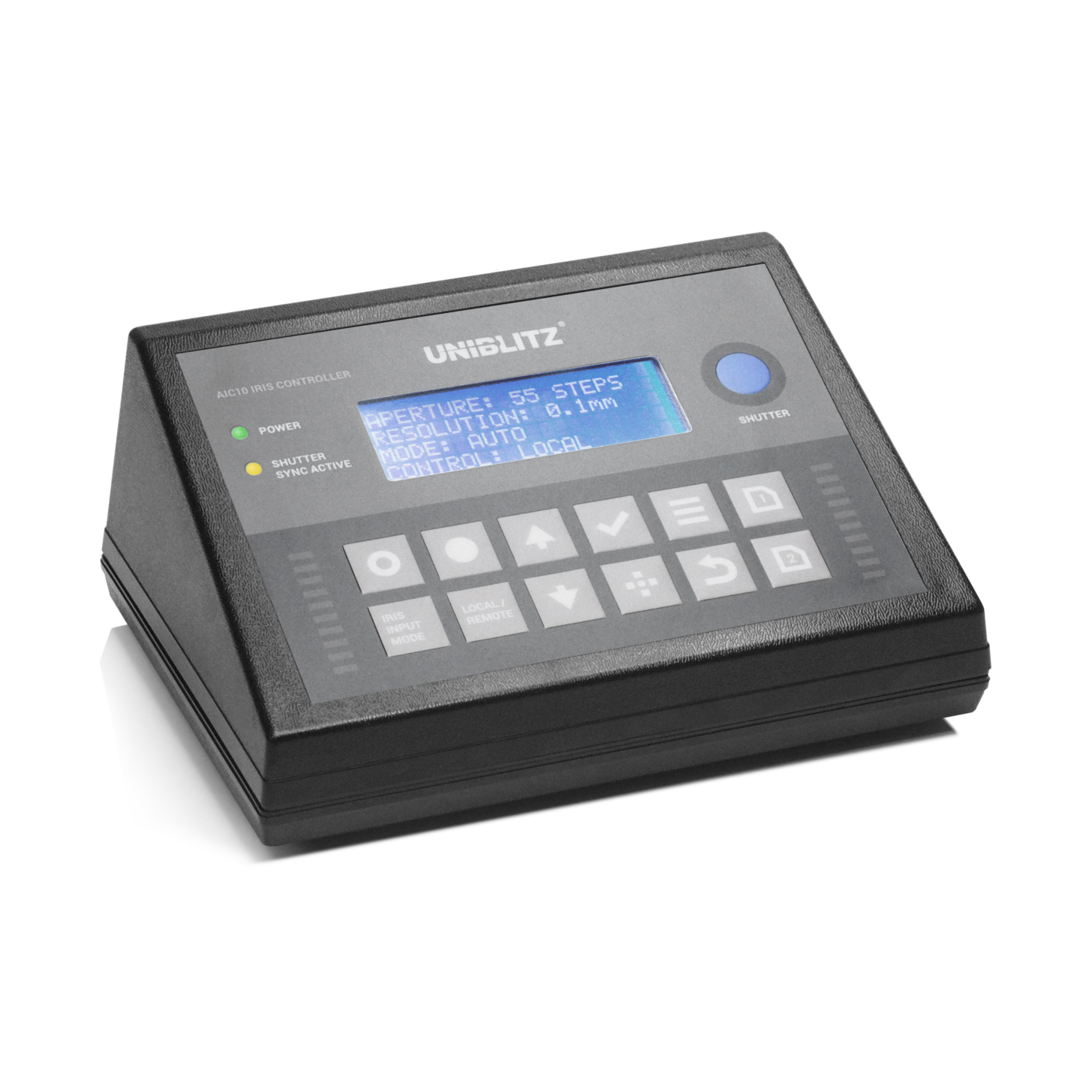

AIC10 Iris Controller
- Intuitive digital user interface
- Optional shutter control (iris requires high-speed shutter attachment)
- RS232 or TTL level signal control
- RoHS compliant and CE certified
| Model | AIC10 |
|---|---|
| Indicators | ．Green POWER LED indicator ．Yellow SHUTTER SYNC ACTIVE LED indicator |
| Power Requirements | ．+12 VDC, 25 Watts ．Input – 2mm DC Jack |
| Operating Temperature | ．5 – 40 °C |
| Storage Temperature | ．-20 – +55 °C |
| Size | ．Controller Unit: 3.12” x 7.00” x 5.50” (79.2 x 177.8 x 139.7 mm) ．Power Adapter (included): 2.13” x 3.66” x 1.42” (54 x 93 x 36 mm) |
| Weight | ．Controller Unit: 1.05 lbs (476 g) ．Power Adapter: 0.46 lbs (209 g) |
| Accessories Included | ．AIC10 Iris Controller ．Manual (included on flash drive) ．10C3 iris/shutter interconnect cable (3.0 m) – For interfacing AIC10 ．with iris/shutter ．USB-AB Cable (1.0 m) – For interfacing with computer ．PS12 Power Supply w/ US & Euro line cords ．AIC10 Quick Reference Guide |
| Download |
|---|
| AIC10 Datasheet |

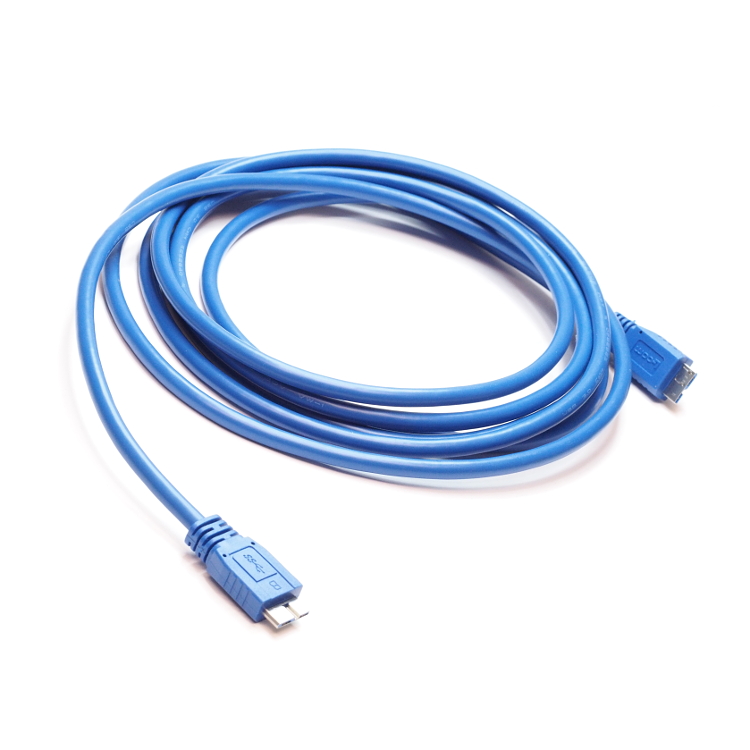

10C3 Auto Iris Interconnect Cable
| Model | Description | Download |
|---|---|---|
| 10C3 | Length: 3 meters Molded hoods and strain relief Used to connect the AI25 Auto Iris to the AIC10 Auto Iris Controller RoHS Compliant |  |
