Spec
| Product Series | Controller | Encoder | Motor | Dust Cover |
|---|---|---|---|---|
| X-BLQ-EC Motorized linear stages with built-in controllers, motor encoders, and covers | √ | Motor/rotary | Stepper Motor | √ |
| X-BLQ-E Closed-loop, belt-driven linear stages with built-in stepper motors, motor encoders, and controllers | √ | Motor/rotary | Stepper Motor | – |
| BLQ-EC Motorized linear stages with built-in motor encoders and covers | – | Motor/rotary | Stepper Motor | √ |
| BLQ-E Motorized linear stages with built-in motor encoders | – | Motor/rotary | Stepper Motor | – |
X-BLQ-EC Series: Motorized linear stages with built-in controllers, motor encoders, and covers
- 70 to 595 mm travel
- Up to 2.0 m/s speed, 55 N thrust, and 20 kg load capacity
- Encoder position feedback with slip/stall detection and automatic recovery
- Includes rigid cover
- Integrated recirculating ball bearing guide provides exceptional lifetime
- Built-in controller; daisy-chains with any other Zaber products
| Model | Description |
|---|---|
| X-BLQ0070-E01C | 70 mm travel |
| X-BLQ0070-E01C | 145 mm travel |
| X-BLQ0295-E01C | 295 mm travel |
| X-BLQ0445-E01C | 445 mm travel |
| X-BLQ0595-E01C | 595 mm travel |
X-BLQ-E Series: Closed-loop, belt-driven linear stages with built-in stepper motors, motor encoders, and controllers
- 70 to 3000 mm travel
- Up to 2.0 m/s speed, 55 N thrust, and 20 kg load capacity
- Encoder position feedback with slip/stall detection and automatic recovery
- Built-in controller; daisy-chains with any other Zaber products
| Model | Description |
|---|---|
| X-BLQ0070-E01 | 70 mm travel |
| X-BLQ0145-E01 | 145 mm travel |
| X-BLQ0295-E01 | 295 mm travel |
| X-BLQ0445-E01 | 445 mm travel |
| X-BLQ0595-E01 | 595 mm travel |
| X-BLQ1045-E01 | 1045 mm travel |
| X-BLQ1495-E01 | 1495 mm travel |
| X-BLQ2095-E01 | 2095 mm travel |
| X-BLQ3000-E01 | 3000 mm travel |
BLQ-EC Series: Motorized linear stages with built-in motor encoders and covers
- 70 to 595 mm travel
- Up to 2.0 m/s speed, 55 N thrust, and 20 kg load capacity
- Encoder position feedback with slip/stall detection and automatic recovery
- Includes rigid cover
- Integrated recirculating ball bearing guide provides exceptional lifetime
- Designed for use with an X-MCC Series stepper motor controller or any 2-phase stepper motor controller
- With AutoDetect, the X-MCC controller configures its settings automatically for the connected peripheral
| Model | Description |
|---|---|
| BLQ0070-E01CT3A | 70 mm travel |
| BLQ0145-E01CT3A | 145 mm travel |
| BLQ0295-E01CT3A | 295 mm travel |
| BLQ0445-E01CT3A | 445 mm travel |
| BLQ0595-E01CT3A | 595 mm travel |

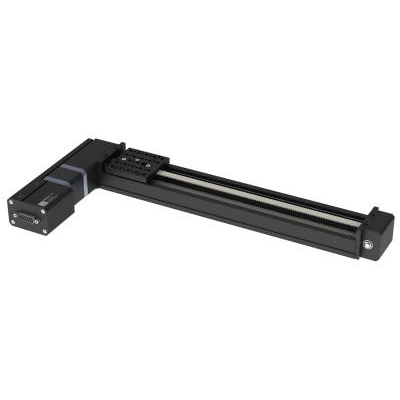

BLQ-E Series: Motorized linear stages with built-in motor encoders
- 70 to 3000 mm travel
- Up to 2.0 m/s speed, 55 N thrust, and 20 kg load capacity
- Integrated recirculating ball bearing guide provides exceptional lifetime
- Integrated, 500 CPR, motor mounted encoder provides slip/stall detection and recovery
- Designed for use with an X-MCC Series stepper motor controller or any 2-phase stepper motor controller
- With AutoDetect, the X-MCC controller configures its settings automatically for the connected peripheral
| Model | Description |
|---|---|
| BLQ0070-E01T3A | 70 mm travel |
| BLQ0145-E01T3A | 145 mm travel |
| BLQ0295-E01T3A | 295 mm travel |
| BLQ0445-E01T3A | 445 mm travel |
| BLQ0595-E01T3A | 595 mm travel |
| BLQ1045-E01T3A | 1045 mm travel |
| BLQ1495-E01T3A | 1495 mm travel |
| BLQ2095-E01T3A | 2095 mm travel |
| BLQ3000-E01T3A | 3000 mm travel |
