Spec
Cage Plates
- UC3-29 is combined with UC3-A04 (C-Mount Adapter) or UC3-A05 (SM1Adapter), etc.
- Quick release Ultra Cage device (patent M530906), easily and quickly assemble in Ultra Optical Cage Systems.
- Aperture adjustment ring kit with quick release Ultra Cage device (UC3-U29 ,patent M530906) can be quickly removable in Ultra Optical Cage Systems.
- UC3-SM1 designed for Φ1 “Lens
Cage Iris Diaphragms
- UC3-IR18 aperture with scale labeled, the steel blade is designed for high-power laser, stable and durable.
- UC3-UIR18 aperture with scale labeled, the steel blade is designed for high-power laser, stable and durable.
Cage Optical Mounts
- UC3-XY with Pin hole is positioned in both X/Y directions, driven with two precision-machined screws, easy to operate.
- UC3-MT features the design of cone, V-groove, and flat to provide true kinematic operation. Angular adjustment is driven with proprietary ULSTRAR stainless-steel actuators and can achieve 10° range in highly smooth and stable movement. Optics are mounted with three Teflon contacts free from stress and damage.
- UC3-HS features the design of cone, V-groove, and flat to provide true kinematic operation. Angular adjustment is driven with proprietary ULSTRAR stainless-steel actuators and can achieve 10° range in highly smooth and stable movement. Laser Diode is positioned in both X/Y directions, driven with two precision-machined screws, easy to operate.
- UC3-PM can be quickly removable in Ultra Optical Cage Systems, design for Φ1 ” Lens and Beamsplitter.

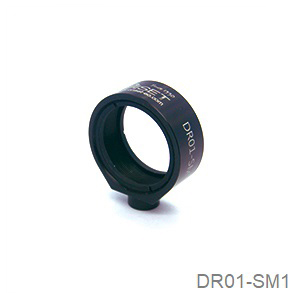

- DR01-SM1 can be used alone in general optical applications.
- For 1 ” Filter thickness < 3 mm .
- UC3-S25 need to be combined with UC3-29 for use in Ultra Optical Cage Systems.
- Adjustment Stainless Steel Screw M3X0.5mm.
Precision Cage Linear Stages
- Precision Linear Guides.
- High resolution and accuracy.
- Thumbscrew lock design.
- Ball bearing with spring design, can quick-mount in Ultra Optical Cage Systems.
- UC3-SF combined with UC3-XY can be a spatial filter and used in general optical applications.
Cage System Adapters
- UC3-A03 / UC3-A04 / UC3-A05 need to use with combined UC3-29 or UC3-U29 for Ultra Optical Cage Systems.
- UC3-A45 with combined UC3-MT can be used in Ultra Optical Cage Systems and general optical applications.
- UC3-R01 and Angle Adjustment Cage Plate can be combined into multi-angle Ultra Optical Cage Systems.
- UC3-B01 is the Ultra Optical Cage Systems installation bracket , combine with DR01-SM1 and then UC3-PM to be adjustable beam splitter mount or extend the optical coaxial path into a right angle extension support base, etc., in order to achieve multi-purpose applications.
Cage System Construction Rods
- Highly stable for Ultra Optical Cage Systems.
- Material: S45C+ Chromium plated.
| Model | Description | Download |
|---|---|---|
| EOP06M33-25 | Dia.6 L=25 mm,M3-M3 Screw, Included 1.Setscrew : M3*8 2.Imperial/Metric Thread Adapters:M3 — #4-40 |   |
| EOP06M33-50 | Dia.6 L=50 mm,M3-M3 Screw, Included 1.Setscrew : M3*8 2.Imperial/Metric Thread Adapters:M3 — #4-40 | |
| EOP06M33-100 | Dia.6 L=100 mm,M3-M3 Screw, Included 1.Setscrew : M3*8 2.Imperial/Metric Thread Adapters:M3 — #4-40 | |
| EOP06M33-150 | Dia.6 L=150 mm,M3-M3 Screw, Included 1.Setscrew : M3*8 2.Imperial/Metric Thread Adapters:M3 — #4-40 | |
| EOP06M33-200 | Dia.6 L=200 mm,M3-M3 Screw, Included 1.Setscrew : M3*8 2.Imperial/Metric Thread Adapters:M3 — #4-40 | |
| EOP06M33-300 | Dia.6 L=300 mm,M3-M3 Screw, Included 1.Setscrew : M3*8 2.Imperial/Metric Thread Adapters:M3 — #4-40 | |
Cage System Alignment Plate
- UC3-AP2 Can quickly align the optical path of Ultra Optical Cage System components, let the experiment go fast and more convenient.
- It is designed for quick-mount, can be quickly removable in Ultra Optical Cage Systems.
