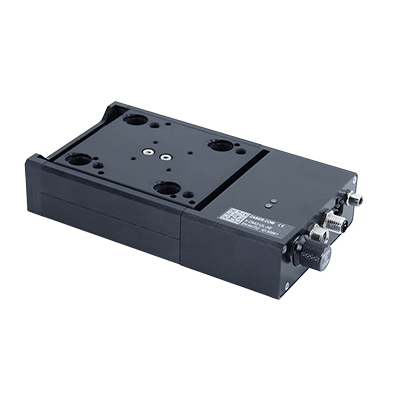

X-DMQ-AE Series: Direct drive linear stages with built-in controllers and linear encoders
- 12 mm travel and 26 N peak thrust
- Up to 1400 mm/s speed, 25 Hz full-travel cycling
- Direct position measurement from 1 nm resolution linear encoder
- One digital input and two digital outputs
- Built-in controller; daisy-chains with other Zaber products
- Technical Article – Linear Motors: Overview and Selection Process
| Model | Description |
|---|---|
| X-DMQ12L-AE55D12 | Direct drive linear stage, 12 mm travel |
DMQ-AE Series: Direct drive linear stages with built-in linear encoders
- 12 mm travel and 26 N peak thrust
- Up to 1400 mm/s speed, 25 Hz full-travel cycling
- Direct position measurement from 1 nm resolution linear encoder
- Designed for use with an X-MCC Series controller for coordinated motion
- With AutoDetect, the X-MCC controller configures its settings automatically for the connected peripheral
- Technical Article – Linear Motors: Overview and Selection Process
| Model | Description |
|---|---|
| DMQ12L-AE55T10A | Direct drive linear stage, 12 mm travel |
