Kinematic Mounts

The DM005 series mirror mounts feature the design of cone, v-groove, and flat to provide true kinematic operation. Angular adjustment is driven with proprietary stainless-steel actuators and can achieve 10∘ range in highly smooth and stable movement. Optics are mounted with three Teflon contacts free from stress and damage.

• Continuous free rotation over 360°, with fine-tuning of 4∘.
• Gimbal design provides non-couped angular adjustment.

Model	Description	Download
DM005A	Holding Size: Φ12.5mm, Max. Beam Transmitted Angle: <45∘
DM005C	Holding Size: Φ12.5mm, Max. Beam Transmitted Angle: >60∘
DG04A	Holding Size: Φ100mm, Adjustable Range: 360°, free 4°, Micrometer

The DM01 series mirror mounts feature the design of cone, V-groove, and flat to provide true kinematic operation. Angular adjustment is driven with proprietary ULSTRAR stainless-steel actuators and can achieve 10° range in highly smooth and stable movement. Optics are mounted with three Teflon contacts free from stress and damage.

• DM01A and DM01C are standard 1” mirror mounts without/with clear quadrant. Both they have one Teflon-tipped setscrew and two Teflon pads to gently hold your optics.

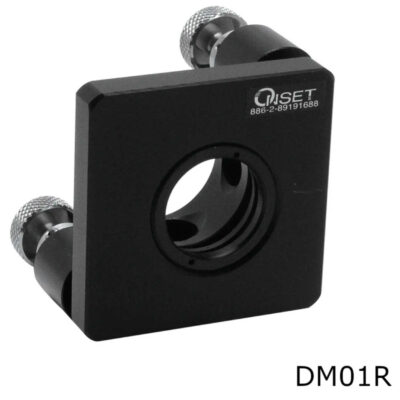

• DM01R is the retaining-ring version of DM01A.

DG01A

• Continuous free rotation over 360°, with fine-tuning of 4∘.
• Gimbal design provides non-couped angular adjustment.

Model	Description	Download
DM01A	Holding Size: Φ25.0mm, Max. Beam Transmitted Angle: <45°
DM01C	Holding Size: Φ25.0mm, Max. Beam Transmitted Angle: >60°
DM01L	Holding Size: Φ25.0mm, Max. Beam Transmitted Angle: >60°
DM01Q	Holding Size: SQ. 25.0*25.0mm, Max. Beam Transmitted Angle: <45°
DM01R	Holding Size: Φ25.0mm, Max. Beam Transmitted Angle: <30°
DHS01A	Travel Range: + – 1.5 mm, Max. Beam Transmitted Angle: <30°
DMV01A	Holding Size: Φ25.0mm, Max. Beam Transmitted Angle: <45°
DG01A	Holding Size: Φ25mm, Adjustable Range: 360°, free 4°, Micrometer

The DM02 series mirror mounts feature the design of cone, V-groove, and flat to provide true kinematic operation. Angular adjustment is driven with proprietary ULSTRAR stainless-steel actuators and can achieve 10∘ range in highly smooth and stable movement. Optics are mounted with three Teflon contacts free from stress and damage.

• DM02A and DM02C are standard 2” mirror mounts without/with clear quadrant. Both they have one Teflon-tipped setscrew and two Teflon pads to gently hold your optics.
• DM02R is the retaining-ring version of DM02A.

DG02A

• Continuous free rotation over 360°, with fine-tuning of 4∘.
• Gimbal design provides non-couped angular adjustment.

Model	Description	Download
DM02A	Holding Size: Φ50mm, Max. Beam Transmitted Angle: <45∘
DM02C	Holding Size: Φ50mm, Max. Beam Transmitted Angle: >60∘
DM02R	Holding Size: Φ50mm, Max. Beam Transmitted Angle: <30∘
DG02A	Holding Size: Φ50mm, Adjustable Range: 360°, free 4°, Micrometer

The DM03(4)E series mirror mounts feature the design of cone, V-groove and flat to provide true kinematic operation. Angular adjustment is driven with proprietary ULSTRAR stainless-steel actuators and can achieve 10o range in highly smooth and stable movement. Optics are mounted with three Teflon contacts free from stress and damage.

• Continuous free rotation over 360°, with fine-tuning of 4∘.
• Gimbal design provides non-couped angular adjustment.

Model	Description	Download
DM03E-N	Holding Size: Φ75mm
DG03A	Holding Size: Φ75mm, Adjustable Range: 360°, free 4°, Micrometer

The DM03(4)E series mirror mounts feature the design of cone, V-groove and flat to provide true kinematic operation. Angular adjustment is driven with proprietary ULSTRAR stainless-steel actuators and can achieve 10o range in highly smooth and stable movement. Optics are mounted with three Teflon contacts free from stress and damage.

• Continuous free rotation over 360°, with fine-tuning of 4∘.
• Gimbal design provides non-couped angular adjustment.

Model	Description	Download
DM04E-N	Holding Size: Φ100mm
DG04A	Holding Size: Φ100mm, Adjustable Range: 360°, free 4°, Micrometer
