Spec
| Product Series | Controller | Encoder | Motor |
|---|---|---|---|
| LC40B-KM01 Belt-driven T-slot extrusion compatible linear guides with built-in controllers and motor encoders | √ | Motor/rotary | Stepper Motor |
| LC40B-KM02 Belt-driven T-slot extrusion compatible linear guides with built-in stepper motors and motor encoders | – | Motor/rotary | Stepper Motor |
| LC40 T-slot extrusion compatible linear guides | – | – | – |

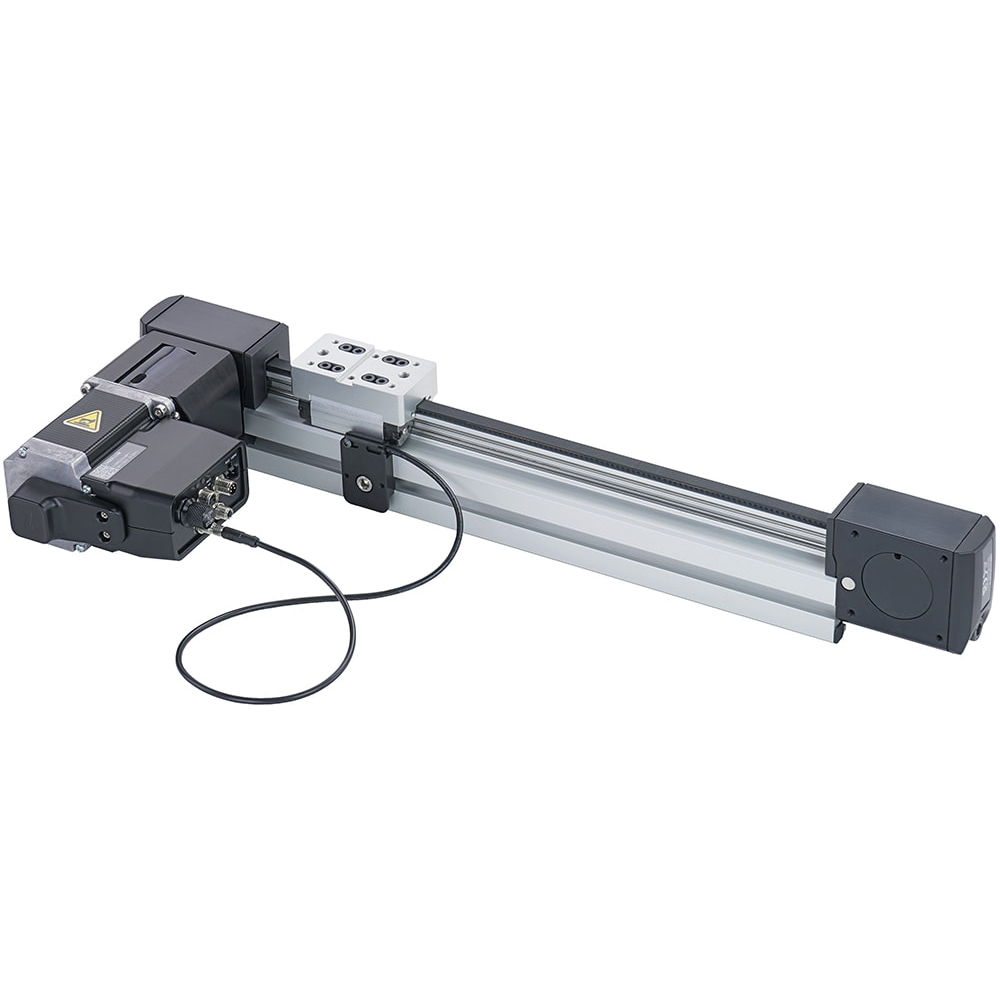

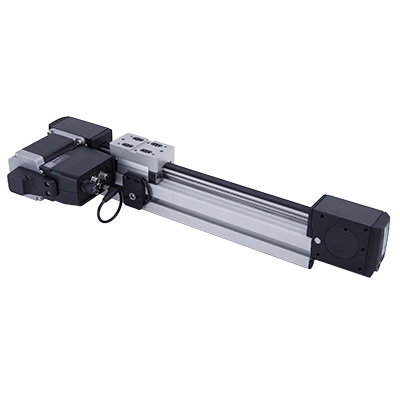

LC40B-KM01 Series: Belt-driven T-slot extrusion compatible linear guides with built-in controllers, motor encoders, and optional brake
- Up to 3500 mm travel length, available in 50 mm increments
- Compatible with most 40 mm T-slot extrusion framing systems and accessories
- Includes NEMA 23 stepper motor with built-in controller and encoder
- Carriage Options: single carriage or dual carriage (N2 version) for additional load capacity and stiffness
- Integrated power-off brake for vertical applications
- Recirculating ball bearing carriage for high load and lifetime
- Home sensor and magnet included, optional away sensor
- See the User’s Manual to help assemble and configure the LC40B-KM01

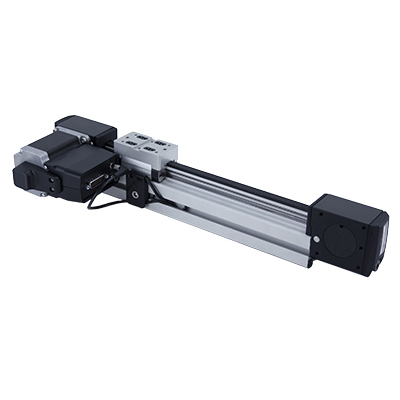

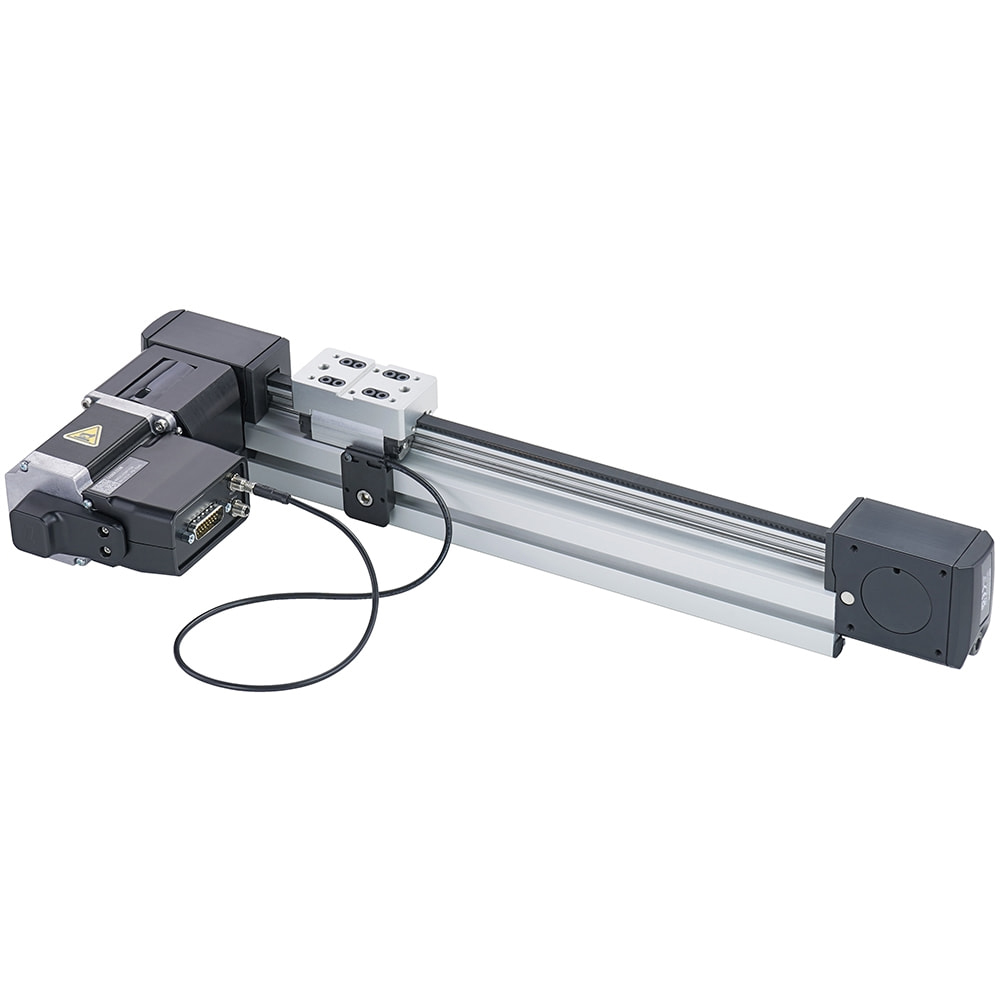

LC40B-KM02 Series: Belt-driven T-slot extrusion compatible linear guides with built-in stepper motors, motor encoders, and optional brake
- Up to 3500 mm travel length, available in 50 mm increments
- Compatible with most 40 mm T-slot extrusion framing systems and accessories
- Includes NEMA 23 stepper motor with built-in encoder
- Carriage Options: single carriage or dual carriage (N2 version) for additional load capacity and stiffness
- Integrated power-off brake for vertical applications
- Recirculating ball bearing carriage for high load and lifetime
- Home sensor and magnet included, optional away sensor
- See the User’s Manual to help assemble and configure the LC40B-KM02

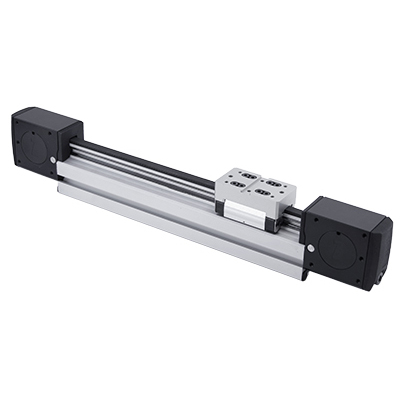

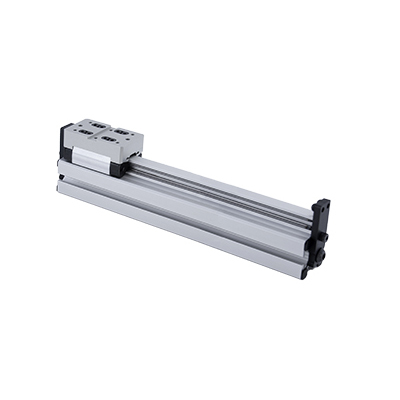

LC40 Series: T-slot extrusion compatible linear guides
- Up to 3500 mm travel length, available in 50 mm increments
- Recirculating ball bearing carriage for high load and lifetime
- Optional integrated belt drive

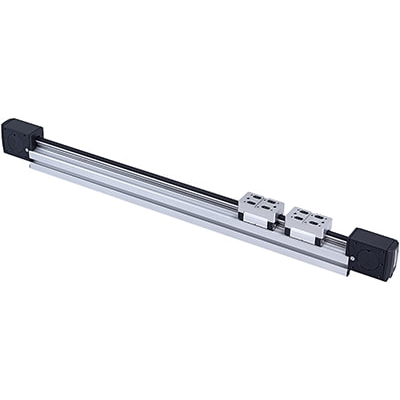

- Carriage Options: single carriage or dual carriage (N2 version) for additional load capacity and stiffness
- Compatible with most 40 mm T-slot extrusion framing systems and accessories
