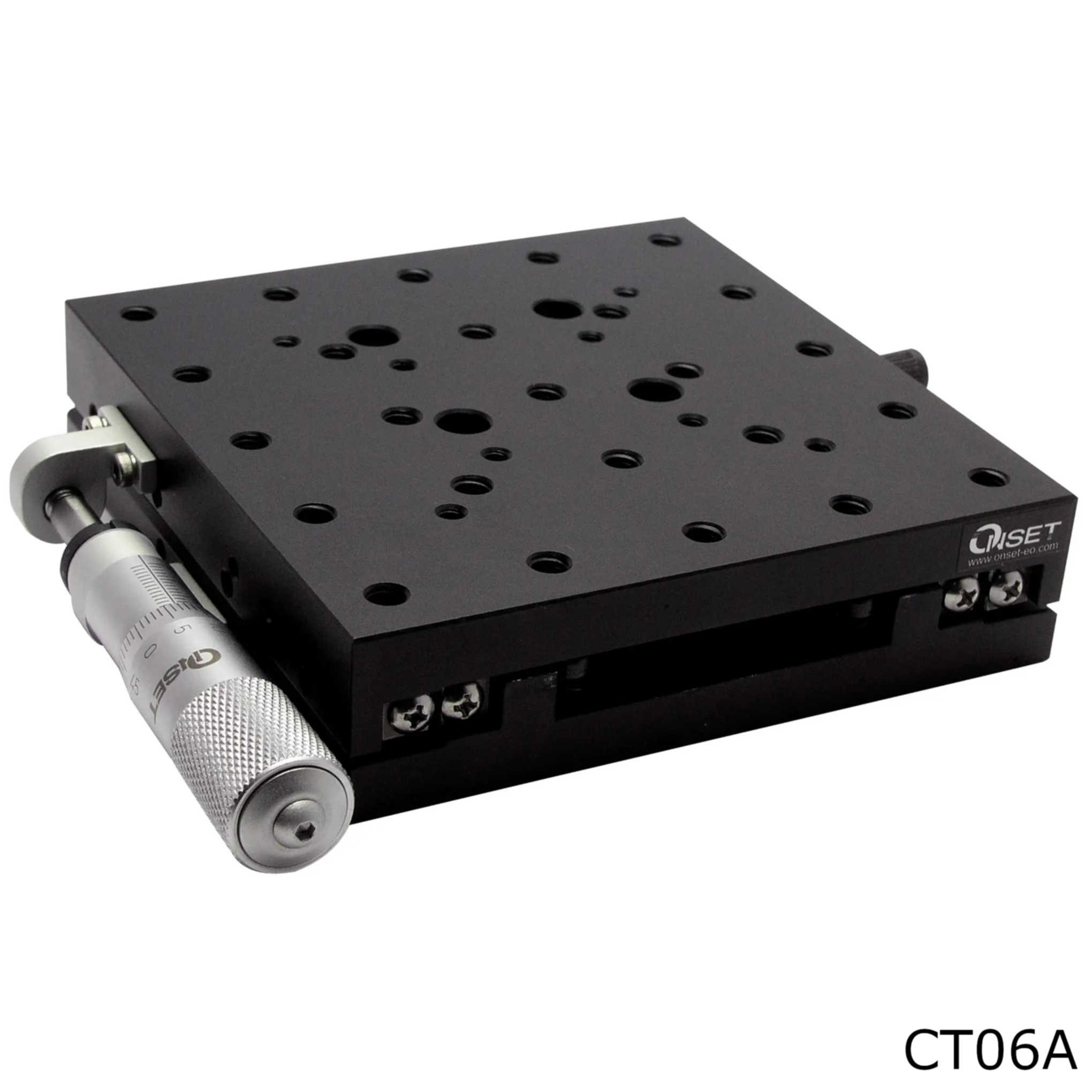

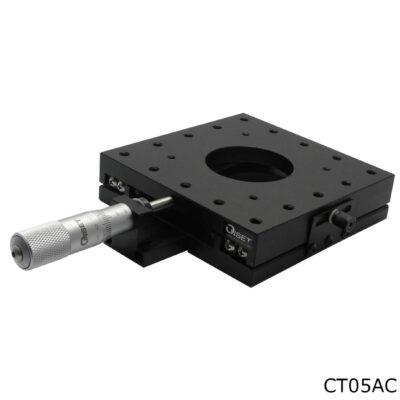

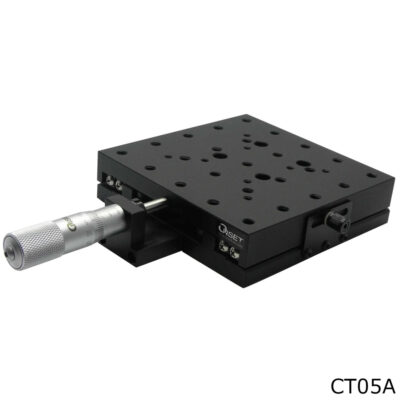

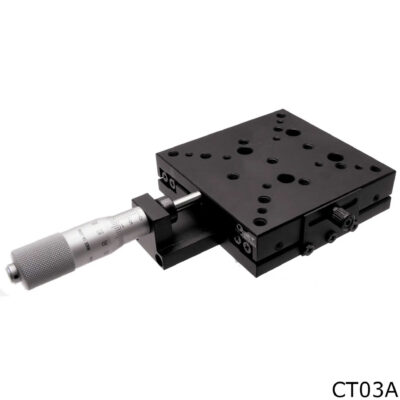

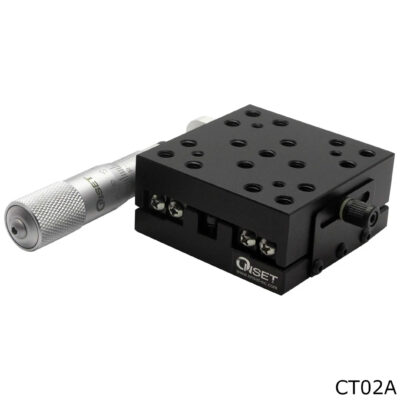

Side-Driven Linear Stages
- Linear bearing with hardened roller cages in V-shaped guide.
- High load capacity.
- High resolution and accuracy.
- Thumbscrew lock design.
- Travel range extended with a precision-machined screw
- Small footprint

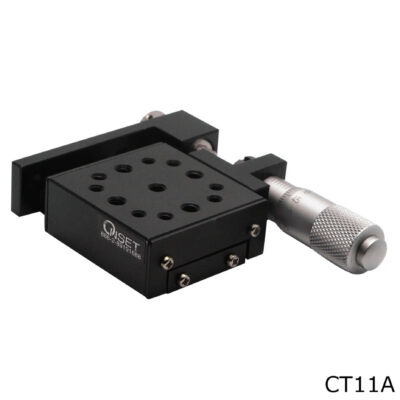

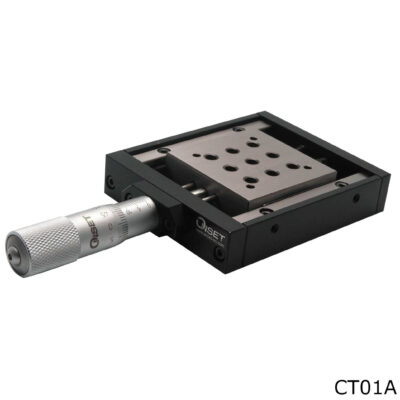

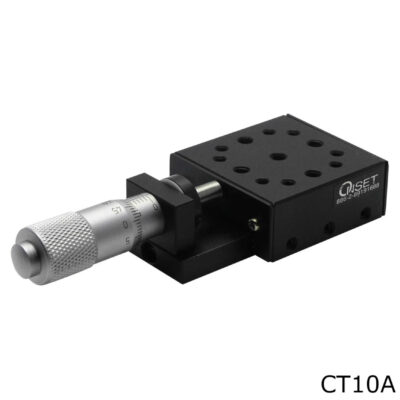

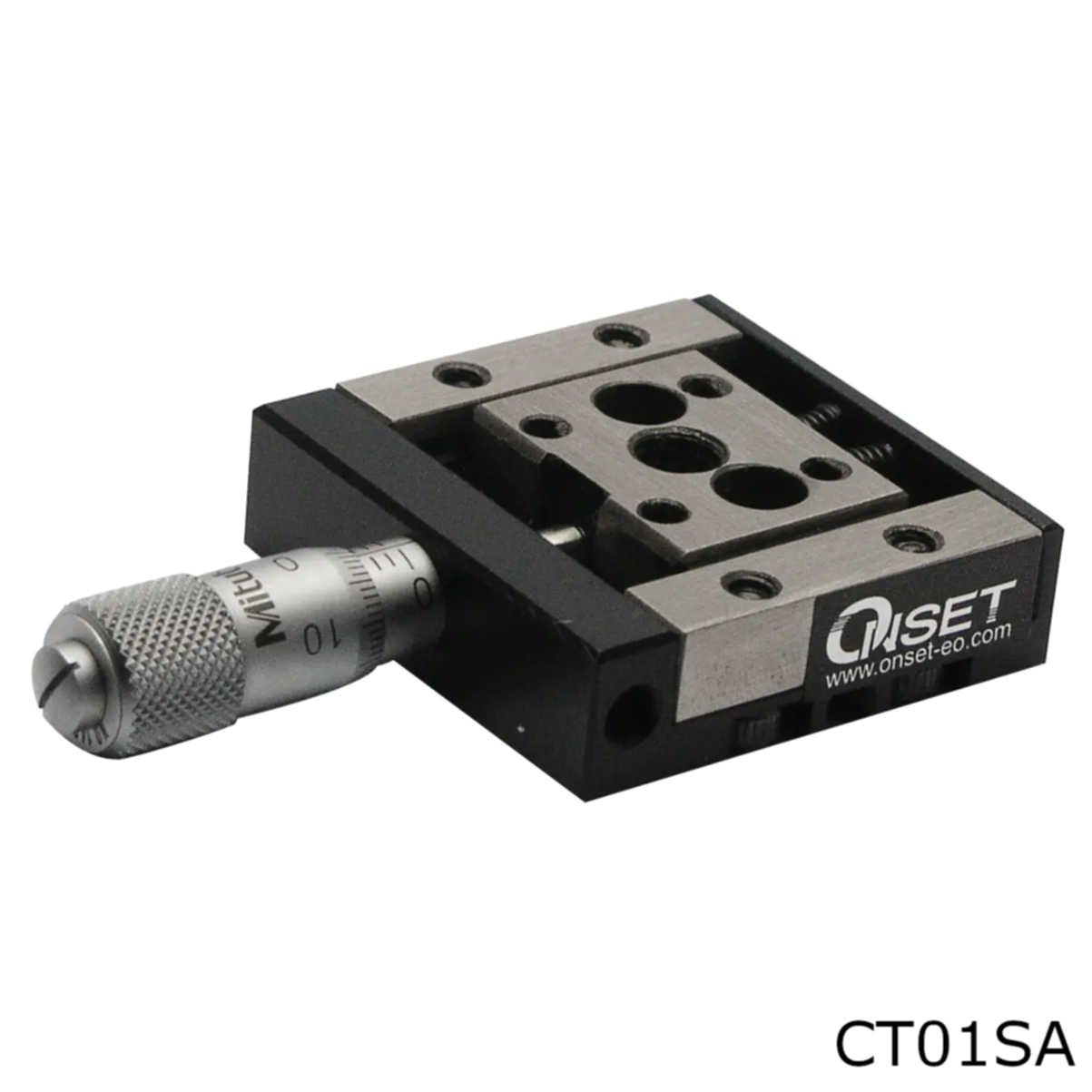

End-Driven Linear Stages
Onset offers a complete line of linear translation stage to build your positioning system.
For precision positioning, the crossed roller bearing design provides high load capacity, high resolution, and accuracy motion with minimum backlash and side play.
- Linear bearing with hardened roller cages in V-shaped guide.
- High load capacity.
- High resolution and accuracy.
CT15A ,CT15AD Linear Stages feature actuator-loaded design to provide high loading capacity, especially on the vertical movement applications.
The CT15AD stage has a differential micrometer with higher resolution than 0.5μm.
CT07A-CT08A
- Ball Bearing Linear Stage
- Precision ball bearing design provides high stability and resolution
Long Travel Range Linear Stages
CT09A series stages feature the ball bearing stracture driven with a threaded rod to provide high stability and long travel range.
The CT09A-L has longer travel range of 200mm.
CT13-series stage feature linear bearings which hold the hardesed guide ways to provide a quick and precision linear motion.
The CT13T-110 has a longer travel range, with a thumbscrew lock to be a limiter in motion.
