X-LRM-DE Series: Miniature, steel, motorized linear stages with built-in controllers and linear encoders
- 100, 150, 200 mm travel
- 15 µm accuracy over 200 mm
- 50 kg load capacity
- Hardened steel construction and recirculating ball bearing guide provide exceptional stiffness and thermal stability
- Integrated linear encoders with 50 nm resolution provide slip/stall detection and position correction
- Built-in controller, daisy chains with other Zaber products
| Model | Description |
|---|---|
| X-LRM100A-DE51 | 100 mm travel, fine resolution |
| X-LRM100B-DE51 | 100 mm travel, medium resolution |
| X-LRM150A-DE51 | 150 mm travel, fine resolution |
| X-LRM150B-DE51 | 150 mm travel, medium resolution |
| X-LRM200A-DE51 | 200 mm travel, fine resolution |
| X-LRM200B-DE51 | 200 mm travel, medium resolution |
X-LRM-E Series: Miniature, steel, motorized linear stages with built-in controllers and motor encoders
- 25, 50, 100, 150, 200 mm travel
- Up to 8 µm accuracy and 50 nm resolution
- 50 kg load capacity
- Hardened steel construction and integrated recirculating ball bearing guide provide exceptional stiffness and thermal stability
- Motor encoder position feedback with slip/stall detection and automatic recovery
- Built-in controller, daisy-chains with other Zaber products
| Model | Description |
|---|---|
| X-LRM025A-E03 | 25 mm travel, fine resolution |
| X-LRM025B-E03 | 25 mm travel, medium resolution |
| X-LRM050A-E03 | 50 mm travel, fine resolution |
| X-LRM050B-E03 | 50 mm travel, medium resolution |
| X-LRM100A-E03 | 100 mm travel, fine resolution |
| X-LRM100B-E03 | 100 mm travel, medium resolution |
| X-LRM150A-E03 | 150 mm travel, fine resolution |
| X-LRM150B-E03 | 150 mm travel, medium resolution |
| X-LRM200A-E03 | 200 mm travel, fine resolution |
| X-LRM200B-E03 | 200 mm travel, medium resolution |

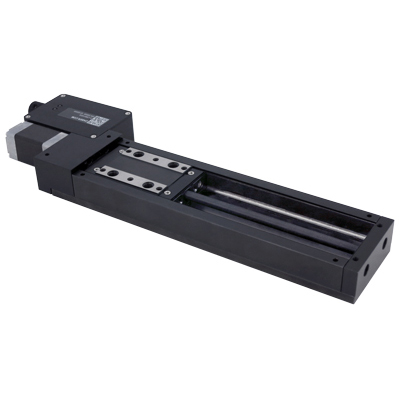

X-LRM Series: Miniature, steel, motorized linear stages with built-in controllers
- 25, 50, 100, 150, 200 mm travel options
- Up to 8 µm accuracy and 50 nm resolution
- 50 kg load capacity
- Hardened steel construction and integrated recirculating ball bearing guide provide exceptional stiffness and thermal stability
- Built-in controller, daisy-chains with other Zaber products
| Model | Description |
|---|---|
| X-LRM025A | 25 mm travel, fine resolution |
| X-LRM025B | 25 mm travel, medium resolution |
| X-LRM050A | 50 mm travel, fine resolution |
| X-LRM050B | 50 mm travel, medium resolution |
| X-LRM100A | 100 mm travel, fine resolution |
| X-LRM100B | 100 mm travel, medium resolution |
| X-LRM150A | 150 mm travel, fine resolution |
| X-LRM150B | 150 mm travel, medium resolution |
| X-LRM200A | 200 mm travel, fine resolution |
| X-LRM200B | 200 mm travel, medium resolution |
LRM-E Series: Miniature, steel motorized linear stages with built-in motor encoders
- 25, 50, 100, 150, 200 mm travel
- Up to 8 µm accuracy and 50 nm resolution
- 50 kg load capacity
- Hardened steel construction and integrated recirculating ball bearing guide provide exceptional stiffness and thermal stability
- Encoder position feedback with slip/stall detection and automatic recovery
- Designed for use with an X-MCC Series stepper motor controller or any 2-phase stepper motor controller
- With AutoDetect, the X-MCC controller configures its settings automatically for the connected peripheral
| Model | Description |
|---|---|
| LRM025A-E03T3A | 25 mm travel, fine resolution |
| LRM025B-E03T3A | 25 mm travel, medium resolution |
| LRM050A-E03T3A | 50 mm travel, fine resolution |
| LRM050B-E03T3A | 50 mm travel, medium resolution |
| LRM100A-E03T3A | 100 mm travel, fine resolution |
| LRM100B-E03T3A | 100 mm travel, medium resolution |
| LRM150A-E03T3A | 150 mm travel, fine resolution |
| LRM150B-E03T3A | 150 mm travel, medium resolution |
| LRM200A-E03T3A | 200 mm travel, fine resolution |
| LRM200B-E03T3A | 200 mm travel, medium resolution |
LRM Series: Miniature, steel motorized linear stages
- 25, 50, 100, 150, 200 mm travel
- Up to 8 µm accuracy and 50 nm resolution
- 50 kg load capacity
- Hardened steel construction and integrated recirculating ball bearing guide provide exceptional stiffness and thermal stability
- Designed for use with an X-MCC Series stepper motor controller or any 2-phase stepper motor controller
- With AutoDetect, the X-MCC controller configures its settings automatically for the connected peripheral
| Model | Description |
|---|---|
| LRM025A-T3A | 25 mm travel, fine resolution |
| LRM025B-T3A | 25 mm travel, medium resolution |
| LRM050A-T3A | 50 mm travel, fine resolution |
| LRM050B-T3A | 50 mm travel, medium resolution |
| LRM100A-T3A | 100 mm travel, fine resolution |
| LRM100B-T3A | 100 mm travel, medium resolution |
| LRM150A-T3A | 150 mm travel, fine resolution |
| LRM150B-T3A | 150 mm travel, medium resolution |
| LRM200A-T3A | 200 mm travel, fine resolution |
| LRM200B-T3A | 200 mm travel, medium resolution |
