Name: LRT Family: High Load, Screw Drive
SKU: 4842
Availability: InStock

Question 1

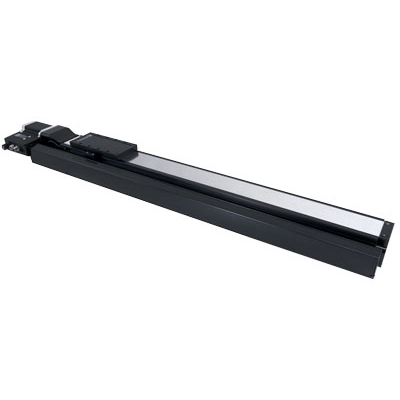

X-LRT-AEC Series: High load, high accuracy linear stages with built-in controllers, linear encoders, dust covers, and optional brake

Accepted Answer

100, 250, 500, 750, 1000, 1500 mm travel
20 µm full travel accuracy
300 kg load capacity
Includes stainless steel dust covers
Ball screw and lead screw configurations
Optional integrated power-off brake for vertical applications
Integrated linear encoders with 50 nm resolution provide slip/stall detection and position correction
Built-in controller; daisy-chains with other Zaber products

ModelDescriptionX-LRT0100AL-AE53CLead-screw driven, 100 mm travel, fine resolution, low speedX-LRT0100BL-AE53CLead-screw driven, 100 mm travel, medium resolution, medium speedX-LRT0100BL-BAE53CLead-screw driven, power-off brake, 100 mm travel, medium resolution, medium speedX-LRT0100DL-AE53CLead-screw driven, 100 mm travel, coarse resolution, high speedX-LRT0100DL-BAE53CLead-screw driven, power-off brake, 100 mm travel, coarse resolution, high speedX-LRT0100HL-AE53CBall-screw driven, 100 mm travel, medium resolution, medium speedX-LRT0100HL-BAE53CBall-screw driven, power-off brake, 100 mm travel, medium resolution, medium speedX-LRT0250AL-AE53CLead-screw driven, 250 mm travel, fine resolution, low speedX-LRT0250BL-AE53CLead-screw driven, 250 mm travel, medium resolution, medium speedX-LRT0250BL-BAE53CLead-screw driven, power-off brake, 250 mm travel, medium resolution, medium speedX-LRT0250DL-AE53CLead-screw driven, 250 mm travel, coarse resolution, high speedX-LRT0250DL-BAE53CLead-screw driven, power-off brake, 250 mm travel, coarse resolution, high speedX-LRT0250HL-AE53CBall-screw driven, 250 mm travel, medium resolution, medium speedX-LRT0250HL-BAE53CBall-screw driven, power-off brake, 250 mm travel, medium resolution, medium speedX-LRT0500AL-AE53CLead-screw driven, 500 mm travel, fine resolution, low speedX-LRT0500BL-AE53CLead-screw driven, 500 mm travel, medium resolution, medium speedX-LRT0500BL-BAE53CLead-screw driven, power-off brake, 500 mm travel, medium resolution, medium speedX-LRT0500DL-AE53CLead-screw driven, 500 mm travel, coarse resolution, high speedX-LRT0500DL-BAE53CLead-screw driven, power-off brake, 500 mm travel, coarse resolution, high speedX-LRT0500HL-AE53CBall-screw driven, 500 mm travel, medium resolution, medium speedX-LRT0500HL-BAE53CBall-screw driven, power-off brake, 500 mm travel, medium resolution, medium speedX-LRT0750AL-AE53CLead-screw driven, 750 mm travel, fine resolution, low speedX-LRT0750BL-AE53CLead-screw driven, 750 mm travel, medium resolution, medium speedX-LRT0750BL-BAE53CLead-screw driven, power-off brake, 750 mm travel, medium resolution, medium speedX-LRT0750DL-AE53CLead-screw driven, 750 mm travel, coarse resolution, high speedX-LRT0750DL-BAE53CLead-screw driven, power-off brake, 750 mm travel, coarse resolution, high speedX-LRT0750HL-AE53CBall-screw driven, 750 mm travel, medium resolution, medium speedX-LRT0750HL-BAE53CBall-screw driven, power-off brake, 750 mm travel, medium resolution, medium speedX-LRT1000AL-AE53CLead-screw driven, 1000 mm travel, fine resolution, low speedX-LRT1000BL-AE53CLead-screw driven, 1000 mm travel, medium resolution, medium speedX-LRT1000BL-BAE53CLead-screw driven, power-off brake, 1000 mm travel, medium resolution, medium speedX-LRT1000DL-AE53CLead-screw driven, 1000 mm travel, coarse resolution, high speedX-LRT1000DL-BAE53CLead-screw driven, power-off brake, 1000 mm travel, coarse resolution, high speedX-LRT1000HL-AE53CBall-screw driven, 1000 mm travel, medium resolution, medium speedX-LRT1000HL-BAE53CBall-screw driven, power-off brake, 1000 mm travel, medium resolution, medium speedX-LRT1500AL-AE53CLead-screw driven, 1500 mm travel, fine resolution, low speedX-LRT1500BL-AE53CLead-screw driven, 1500 mm travel, medium resolution, medium speedX-LRT1500BL-BAE53CLead-screw driven, power-off brake, 1500 mm travel, medium resolution, medium speedX-LRT1500DL-AE53CLead-screw driven, 1500 mm travel, coarse resolution, high speedX-LRT1500DL-BAE53CLead-screw driven, power-off brake, 1500 mm travel, coarse resolution, high speed

Question 2

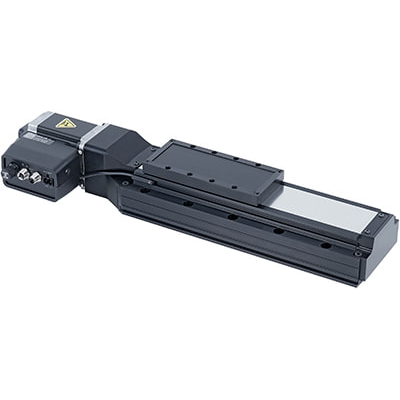

X-LRT-EC Series: High load linear stages with built-in controllers, motor encoders, dust covers, and optional brake

Accepted Answer

100, 250, 500, 750, 1000, 1500 mm travel
Up to 700 mm/s speed and up to 1200 N thrust
500 kg load capacity
High cantilever stiffness
Ball screw and lead screw configurations
Includes stainless steel dust covers
Optional integrated power-off brake for vertical applications
Built-in, 400 CPR, motor encoder provides slip/stall detection and recovery
Built-in controller; daisy-chains with other Zaber products

ModelDescriptionX-LRT0100AL-E08CLead-screw driven, 100 mm travel, fine resolution, low speedX-LRT0100BL-E08CLead-screw driven, 100 mm travel, medium resolution, medium speedX-LRT0100BL-BE08CLead-screw driven, power-off brake, 100 mm travel, medium resolution, medium speedX-LRT0100DL-E08CLead-screw driven, 100 mm travel, coarse resolution, high speedX-LRT0100DL-BE08CLead-screw driven, power-off brake, 100 mm travel, coarse resolution, high speedX-LRT0100HL-E08CBall-screw driven, 100 mm travel, medium resolution, medium speedX-LRT0100HL-BE08CBall-screw driven, power-off brake, 100 mm travel, medium resolution, medium speedX-LRT0250AL-E08CLead-screw driven, 250 mm travel, fine resolution, low speedX-LRT0250BL-E08CLead-screw driven, 250 mm travel, medium resolution, medium speedX-LRT0250BL-BE08CLead-screw driven, power-off brake, 250 mm travel, medium resolution, medium speedX-LRT0250DL-E08CLead-screw driven, 250 mm travel, coarse resolution, high speedX-LRT0250DL-BE08CLead-screw driven, power-off brake, 250 mm travel, coarse resolution, high speedX-LRT0250HL-E08CBall-screw driven, 250 mm travel, medium resolution, medium speedX-LRT0250HL-BE08CBall-screw driven, power-off brake, 250 mm travel, medium resolution, medium speedX-LRT0500AL-E08CLead-screw driven, 500 mm travel, fine resolution, low speedX-LRT0500BL-E08CLead-screw driven, 500 mm travel, medium resolution, medium speedX-LRT0500BL-BE08CLead-screw driven, power-off brake, 500 mm travel, medium resolution, medium speedX-LRT0500DL-E08CLead-screw driven, 500 mm travel, coarse resolution, high speedX-LRT0500DL-BE08CLead-screw driven, power-off brake, 500 mm travel, coarse resolution, high speedX-LRT0500HL-E08CBall-screw driven, 500 mm travel, medium resolution, medium speedX-LRT0500HL-BE08CBall-screw driven, power-off brake, 500 mm travel, medium resolution, medium speedX-LRT0750AL-E08CLead-screw driven, 750 mm travel, fine resolution, low speedX-LRT0750BL-E08CLead-screw driven, 750 mm travel, medium resolution, medium speedX-LRT0750BL-BE08CLead-screw driven, power-off brake, 750 mm travel, medium resolution, medium speedX-LRT0750DL-E08CLead-screw driven, 750 mm travel, coarse resolution, high speedX-LRT0750DL-BE08CLead-screw driven, power-off brake, 750 mm travel, coarse resolution, high speedX-LRT0750HL-E08CBall-screw driven, 750 mm travel, medium resolution, medium speedX-LRT0750HL-BE08CBall-screw driven, power-off brake, 750 mm travel, medium resolution, medium speedX-LRT1000AL-E08CLead-screw driven, 1000 mm travel, fine resolution, low speedX-LRT1000BL-E08CLead-screw driven, 1000 mm travel, medium resolution, medium speedX-LRT1000BL-BE08CLead-screw driven, power-off brake, 1000 mm travel, medium resolution, medium speedX-LRT1000DL-E08CLead-screw driven, 1000 mm travel, coarse resolution, high speedX-LRT1000DL-BE08CLead-screw driven, power-off brake, 1000 mm travel, coarse resolution, high speedX-LRT1000HL-E08CBall-screw driven, 1000 mm travel, medium resolution, medium speedX-LRT1000HL-BE08CBall-screw driven, power-off brake, 1000 mm travel, medium resolution, medium speedX-LRT1500AL-E08CLead-screw driven, 1500 mm travel, fine resolution, low speedX-LRT1500BL-E08CLead-screw driven, 1500 mm travel, medium resolution, medium speedX-LRT1500BL-BE08CLead-screw driven, power-off brake, 1500 mm travel, medium resolution, medium speedX-LRT1500DL-E08CLead-screw driven, 1500 mm travel, coarse resolution, high speedX-LRT1500DL-BE08CLead-screw driven, power-off brake, 1500 mm travel, coarse resolution, high speed

Question 3

X-LRT-C Series: High load, motorized linear stages with built-in controllers and dust covers

Accepted Answer

100, 250, 500, 750, 1000, 1500 mm travel
Up to 700 mm/s speed and up to 1200 N thrust
500 kg load capacity
High cantilever stiffness
Includes stainless steel dust covers
Ball screw and lead screw configurations
Built-in controller; daisy-chains with other Zaber products

ModelDescriptionX-LRT0100AL-CLead-screw driven, 100 mm travel, fine resolution, low speedX-LRT0100BL-CLead-screw driven, 100 mm travel, medium resolution, medium speedX-LRT0100DL-CLead-screw driven, 100 mm travel, coarse resolution, high speedX-LRT0100HL-CBall-screw driven, 100 mm travel, medium resolution, medium speedX-LRT0250AL-CLead-screw driven, 250 mm travel, fine resolution, low speedX-LRT0250BL-CLead-screw driven, 250 mm travel, medium resolution, medium speedX-LRT0250DL-CLead-screw driven, 250 mm travel, coarse resolution, high speedX-LRT0250HL-CBall-screw driven, 250 mm travel, medium resolution, medium speedX-LRT0500AL-CLead-screw driven, 500 mm travel, fine resolution, low speedX-LRT0500BL-CLead-screw driven, 500 mm travel, medium resolution, medium speedX-LRT0500DL-CLead-screw driven, 500 mm travel, coarse resolution, high speedX-LRT0500HL-CBall-screw driven, 500 mm travel, medium resolution, medium speedX-LRT0750AL-CLead-screw driven, 750 mm travel, fine resolution, low speedX-LRT0750BL-CLead-screw driven, 750 mm travel, medium resolution, medium speedX-LRT0750DL-CLead-screw driven, 750 mm travel, coarse resolution, high speedX-LRT0750HL-CBall-screw driven, 750 mm travel, medium resolution, medium speedX-LRT1000AL-CLead-screw driven, 1000 mm travel, fine resolution, low speedX-LRT1000BL-CLead-screw driven, 1000 mm travel, medium resolution, medium speedX-LRT1000DL-CLead-screw driven, 1000 mm travel, coarse resolution, high speedX-LRT1000HL-CBall-screw driven, 1000 mm travel, medium resolution, medium speedX-LRT1500AL-CLead-screw driven, 1500 mm travel, fine resolution, low speedX-LRT1500BL-CLead-screw driven, 1500 mm travel, medium resolution, medium speedX-LRT1500DL-CLead-screw driven, 1500 mm travel, coarse resolution, high speed

Question 4

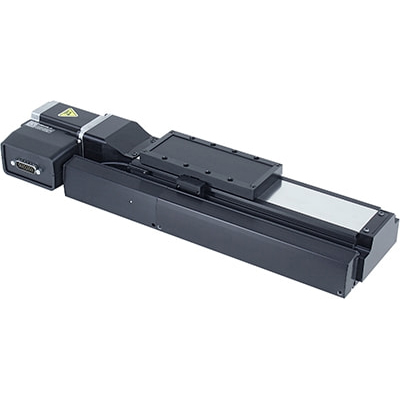

LRT-AEC Series: High load, high accuracy motorized linear stages with built-in linear encoders, dust covers, and optional brake

Accepted Answer

100, 250, 500, 750, 1000, 1500 mm travel
20 µm full travel accuracy
300 kg load capacity
Includes stainless steel dust covers
Ball screw and lead screw configurations
Integrated linear encoders with 50 nm resolution provide slip/stall detection and position correction
Optional integrated power-off brake for vertical applications
Designed for use with an X-MCC Series controller for coordinated motion
With AutoDetect, the X-MCC controller configures its settings automatically for the connected peripheral

ModelDescriptionLRT0100AL-AE53CT10ALead-screw driven, 100 mm travel, fine resolution, low speedLRT0100BL-AE53CT10ALead-screw driven, 100 mm travel, medium resolution, medium speedLRT0100BL-BAE53CT10ALead-screw driven, power-off brake, 100 mm travel, medium resolution, medium speedLRT0100DL-AE53CT10ALead-screw driven, 100 mm travel, coarse resolution, high speedLRT0100DL-BAE53CT10ALead-screw driven, power-off brake, 100 mm travel, coarse resolution, high speedLRT0100HL-AE53CT10ABall-screw driven, 100 mm travel, medium resolution, medium speedLRT0100HL-BAE53CT10ABall-screw driven, power-off brake, 100 mm travel, medium resolution, medium speedLRT0250AL-AE53CT10ALead-screw driven, 250 mm travel, fine resolution, low speedLRT0250BL-AE53CT10ALead-screw driven, 250 mm travel, medium resolution, medium speedLRT0250BL-BAE53CT10ALead-screw driven, power-off brake, 250 mm travel, medium resolution, medium speedLRT0250DL-AE53CT10ALead-screw driven, 250 mm travel, coarse resolution, high speedLRT0250DL-BAE53CT10ALead-screw driven, power-off brake, 250 mm travel, coarse resolution, high speedLRT0250HL-AE53CT10ABall-screw driven, 250 mm travel, medium resolution, medium speedLRT0250HL-BAE53CT10ABall-screw driven, power-off brake, 250 mm travel, medium resolution, medium speedLRT0500AL-AE53CT10ALead-screw driven, 500 mm travel, fine resolution, low speedLRT0500BL-AE53CT10ALead-screw driven, 500 mm travel, medium resolution, medium speedLRT0500BL-BAE53CT10ALead-screw driven, power-off brake, 500 mm travel, medium resolution, medium speedLRT0500DL-AE53CT10ALead-screw driven, 500 mm travel, coarse resolution, high speedLRT0500DL-BAE53CT10ALead-screw driven, power-off brake, 500 mm travel, coarse resolution, high speedLRT0500HL-AE53CT10ABall-screw driven, 500 mm travel, medium resolution, medium speedLRT0500HL-BAE53CT10ABall-screw driven, power-off brake, 500 mm travel, medium resolution, medium speedLRT0750AL-AE53CT10ALead-screw driven, 750 mm travel, fine resolution, low speedLRT0750BL-AE53CT10ALead-screw driven, 750 mm travel, medium resolution, medium speedLRT0750BL-BAE53CT10ALead-screw driven, power-off brake, 750 mm travel, medium resolution, medium speedLRT0750DL-AE53CT10ALead-screw driven, 750 mm travel, coarse resolution, high speedLRT0750DL-BAE53CT10ALead-screw driven, power-off brake, 750 mm travel, coarse resolution, high speedLRT0750HL-AE53CT10ABall-screw driven, 750 mm travel, medium resolution, medium speedLRT0750HL-BAE53CT10ABall-screw driven, power-off brake, 750 mm travel, medium resolution, medium speedLRT1000AL-AE53CT10ALead-screw driven, 1000 mm travel, fine resolution, low speedLRT1000BL-AE53CT10ALead-screw driven, 1000 mm travel, medium resolution, medium speedLRT1000BL-BAE53CT10ALead-screw driven, power-off brake, 1000 mm travel, medium resolution, medium speedLRT1000DL-AE53CT10ALead-screw driven, 1000 mm travel, coarse resolution, high speedLRT1000DL-BAE53CT10ALead-screw driven, power-off brake, 1000 mm travel, coarse resolution, high speedLRT1000HL-AE53CT10ABall-screw driven, 1000 mm travel, medium resolution, medium speedLRT1000HL-BAE53CT10ABall-screw driven, power-off brake, 1000 mm travel, medium resolution, medium speedLRT1500AL-AE53CT10ALead-screw driven, 1500 mm travel, fine resolution, low speedLRT1500BL-AE53CT10ALead-screw driven, 1500 mm travel, medium resolution, medium speedLRT1500BL-BAE53CT10ALead-screw driven, power-off brake, 1500 mm travel, medium resolution, medium speedLRT1500DL-AE53CT10ALead-screw driven, 1500 mm travel, coarse resolution, high speedLRT1500DL-BAE53CT10ALead-screw driven, power-off brake, 1500 mm travel, coarse resolution, high speed

Question 5

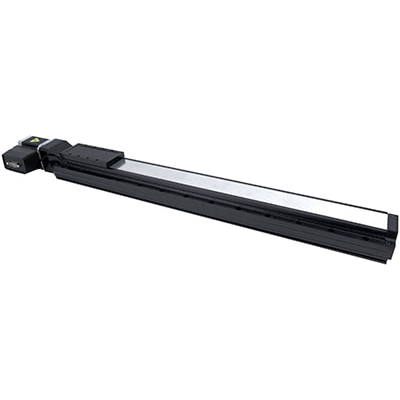

LRT-EC Series: High load motorized linear stages with built-in motor encoders, dust covers, and optional brake

Accepted Answer

100, 250, 500, 750, 1000, 1500 mm travel
Up to 700 mm/s speed and up to 1200 N thrust
500 kg load capacity
Ball screw and lead screw configurations
Includes stainless steel dust covers
High cantilever stiffness
Built-in, 400 CPR, motor encoder provides slip/stall detection and recovery
Optional integrated power-off brake for vertical applications
Designed for use with an X-MCC Series stepper motor controller or any 2-phase stepper motor controller
With AutoDetect, the X-MCC controller configures its settings automatically for the connected peripheral

ModelDescriptionLRT0100AL-E08CT3ALead-screw driven, 100 mm travel, fine resolution, low speedLRT0100BL-E08CT3ALead-screw driven, 100 mm travel, medium resolution, medium speedLRT0100BL-BE08CT10ALead-screw driven, power-off brake, 100 mm travel, medium resolution, medium speedLRT0100DL-E08CT3ALead-screw driven, 100 mm travel, coarse resolution, high speedLRT0100DL-BE08CT10ALead-screw driven, power-off brake, 100 mm travel, coarse resolution, high speedLRT0100HL-E08CT3ABall-screw driven, 100 mm travel, medium resolution, medium speedLRT0100HL-BE08CT10ABall-screw driven, power-off brake, 100 mm travel, medium resolution, medium speedLRT0250AL-E08CT3ALead-screw driven, 250 mm travel, fine resolution, low speedLRT0250BL-E08CT3ALead-screw driven, 250 mm travel, medium resolution, medium speedLRT0250BL-BE08CT10ALead-screw driven, power-off brake, 250 mm travel, medium resolution, medium speedLRT0250DL-E08CT3ALead-screw driven, 250 mm travel, coarse resolution, high speedLRT0250DL-BE08CT10ALead-screw driven, power-off brake, 250 mm travel, coarse resolution, high speedLRT0250HL-E08CT3ABall-screw driven, 250 mm travel, medium resolution, medium speedLRT0250HL-BE08CT10ABall-screw driven, power-off brake, 250 mm travel, medium resolution, medium speedLRT0500AL-E08CT3ALead-screw driven, 500 mm travel, fine resolution, low speedLRT0500BL-E08CT3ALead-screw driven, 500 mm travel, medium resolution, medium speedLRT0500BL-BE08CT10ALead-screw driven, power-off brake, 500 mm travel, medium resolution, medium speedLRT0500DL-E08CT3ALead-screw driven, 500 mm travel, coarse resolution, high speedLRT0500DL-BE08CT10ALead-screw driven, power-off brake, 500 mm travel, coarse resolution, high speedLRT0500HL-E08CT3ABall-screw driven, 500 mm travel, medium resolution, medium speedLRT0500HL-BE08CT10ABall-screw driven, power-off brake, 500 mm travel, medium resolution, medium speedLRT0750AL-E08CT3ALead-screw driven, 750 mm travel, fine resolution, low speedLRT0750BL-E08CT3ALead-screw driven, 750 mm travel, medium resolution, medium speedLRT0750BL-BE08CT10ALead-screw driven, power-off brake, 750 mm travel, medium resolution, medium speedLRT0750DL-E08CT3ALead-screw driven, 750 mm travel, coarse resolution, high speedLRT0750DL-BE08CT10ALead-screw driven, power-off brake, 750 mm travel, coarse resolution, high speedLRT0750HL-E08CT3ABall-screw driven, 750 mm travel, medium resolution, medium speedLRT0750HL-BE08CT10ABall-screw driven, power-off brake, 750 mm travel, medium resolution, medium speedLRT1000AL-E08CT3ALead-screw driven, 1000 mm travel, fine resolution, low speedLRT1000BL-E08CT3ALead-screw driven, 1000 mm travel, medium resolution, medium speedLRT1000BL-BE08CT10ALead-screw driven, power-off brake, 1000 mm travel, medium resolution, medium speedLRT1000DL-E08CT3ALead-screw driven, 1000 mm travel, coarse resolution, high speedLRT1000DL-BE08CT10ALead-screw driven, power-off brake, 1000 mm travel, coarse resolution, high speedLRT1000HL-E08CT3ABall-screw driven, 1000 mm travel, medium resolution, medium speedLRT1000HL-BE08CT10ABall-screw driven, power-off brake, 1000 mm travel, medium resolution, medium speedLRT1500AL-E08CT3ALead-screw driven, 1500 mm travel, fine resolution, low speedLRT1500BL-E08CT3ALead-screw driven, 1500 mm travel, medium resolution, medium speedLRT1500BL-BE08CT10ALead-screw driven, power-off brake, 1500 mm travel, medium resolution, medium speedLRT1500DL-E08CT3ALead-screw driven, 1500 mm travel, coarse resolution, high speedLRT1500DL-BE08CT10ALead-screw driven, power-off brake, 1500 mm travel, coarse resolution, high speed

Question 6

LRT-C Series: High load motorized linear stages with dust covers

Accepted Answer

100, 250, 500, 750, 1000, 1500 mm travel
Up to 700 mm/s speed and up to 1200 N thrust
500 kg load capacity
High cantilever stiffness
Includes stainless steel dust covers
Ball screw and lead screw configurations
Designed for use with an X-MCC Series stepper motor controller or any 2-phase stepper motor controller
With AutoDetect, the X-MCC controller configures its settings automatically for the connected peripheral

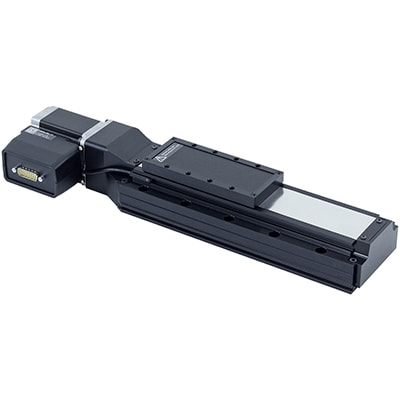

ModelDescriptionLRT0100AL-CT3ALead-screw driven, 100 mm travel, fine resolution, low speedLRT0100BL-CT3ALead-screw driven, 100 mm travel, medium resolution, medium speedLRT0100DL-CT3ALead-screw driven, 100 mm travel, coarse resolution, high speedLRT0100HL-CT3ABall-screw driven, 100 mm travel, medium resolution, medium speedLRT0250AL-CT3ALead-screw driven, 250 mm travel, fine resolution, low speedLRT0250BL-CT3ALead-screw driven, 250 mm travel, medium resolution, medium speedLRT0250DL-CT3ALead-screw driven, 250 mm travel, coarse resolution, high speedLRT0250HL-CT3ABall-screw driven, 250 mm travel, medium resolution, medium speedLRT0500AL-CT3ALead-screw driven, 500 mm travel, fine resolution, low speedLRT0500BL-CT3ALead-screw driven, 500 mm travel, medium resolution, medium speedLRT0500DL-CT3ALead-screw driven, 500 mm travel, coarse resolution, high speedLRT0500HL-CT3ABall-screw driven, 500 mm travel, medium resolution, medium speedLRT0750AL-CT3ALead-screw driven, 750 mm travel, fine resolution, low speedLRT0750BL-CT3ALead-screw driven, 750 mm travel, medium resolution, medium speedLRT0750DL-CT3ALead-screw driven, 750 mm travel, coarse resolution, high speedLRT0750HL-CT3ABall-screw driven, 750 mm travel, medium resolution, medium speedLRT1000AL-CT3ALead-screw driven, 1000 mm travel, fine resolution, low speedLRT1000BL-CT3ALead-screw driven, 1000 mm travel, medium resolution, medium speedLRT1000DL-CT3ALead-screw driven, 1000 mm travel, coarse resolution, high speedLRT1000HL-CT3ABall-screw driven, 1000 mm travel, medium resolution, medium speedLRT1500AL-CT3ALead-screw driven, 1500 mm travel, fine resolution, low speedLRT1500BL-CT3ALead-screw driven, 1500 mm travel, medium resolution, medium speedLRT1500DL-CT3ALead-screw driven, 1500 mm travel, coarse resolution, high speed

Product Series	Controller	Encoder	Motor	Dust Cover
X-LRT-AEC High load, high accuracy linear stages with built-in controllers, linear encoders, and dust covers	√	Linear	Stepper Motor	√
X-LRT-EC High Load, closed-loop stages with built-in stepper motors, motor encoders, controllers, and dust covers	√	Motor/rotary	Stepper Motor	√

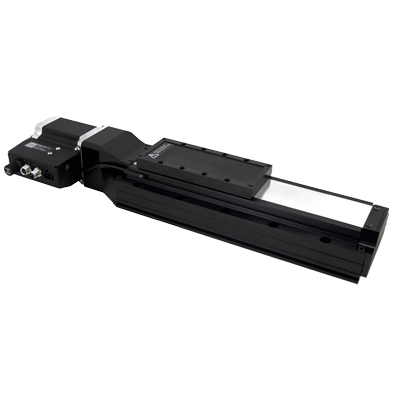

X-LRT-C High load, motorized linear stages with built-in controllers and dust covers	√	–	Stepper Motor	√
LRT-AEC High load, high accuracy motorized linear stages with built-in linear encoders and dust covers	–	Linear	Stepper Motor	√
LRT-EC High load motorized linear stages with built-in motor encoders, dust covers	–	Motor/rotary	Stepper Motor	√
LRT-C High load motorized linear stages with dust covers	–	–	Stepper Motor	√

Model	Description
X-LRT0100AL-AE53C	Lead-screw driven, 100 mm travel, fine resolution, low speed
X-LRT0100BL-AE53C	Lead-screw driven, 100 mm travel, medium resolution, medium speed
X-LRT0100BL-BAE53C	Lead-screw driven, power-off brake, 100 mm travel, medium resolution, medium speed
X-LRT0100DL-AE53C	Lead-screw driven, 100 mm travel, coarse resolution, high speed
X-LRT0100DL-BAE53C	Lead-screw driven, power-off brake, 100 mm travel, coarse resolution, high speed
X-LRT0100HL-AE53C	Ball-screw driven, 100 mm travel, medium resolution, medium speed
X-LRT0100HL-BAE53C	Ball-screw driven, power-off brake, 100 mm travel, medium resolution, medium speed
X-LRT0250AL-AE53C	Lead-screw driven, 250 mm travel, fine resolution, low speed
X-LRT0250BL-AE53C	Lead-screw driven, 250 mm travel, medium resolution, medium speed
X-LRT0250BL-BAE53C	Lead-screw driven, power-off brake, 250 mm travel, medium resolution, medium speed
X-LRT0250DL-AE53C	Lead-screw driven, 250 mm travel, coarse resolution, high speed
X-LRT0250DL-BAE53C	Lead-screw driven, power-off brake, 250 mm travel, coarse resolution, high speed
X-LRT0250HL-AE53C	Ball-screw driven, 250 mm travel, medium resolution, medium speed
X-LRT0250HL-BAE53C	Ball-screw driven, power-off brake, 250 mm travel, medium resolution, medium speed
X-LRT0500AL-AE53C	Lead-screw driven, 500 mm travel, fine resolution, low speed
X-LRT0500BL-AE53C	Lead-screw driven, 500 mm travel, medium resolution, medium speed
X-LRT0500BL-BAE53C	Lead-screw driven, power-off brake, 500 mm travel, medium resolution, medium speed
X-LRT0500DL-AE53C	Lead-screw driven, 500 mm travel, coarse resolution, high speed
X-LRT0500DL-BAE53C	Lead-screw driven, power-off brake, 500 mm travel, coarse resolution, high speed
X-LRT0500HL-AE53C	Ball-screw driven, 500 mm travel, medium resolution, medium speed
X-LRT0500HL-BAE53C	Ball-screw driven, power-off brake, 500 mm travel, medium resolution, medium speed
X-LRT0750AL-AE53C	Lead-screw driven, 750 mm travel, fine resolution, low speed
X-LRT0750BL-AE53C	Lead-screw driven, 750 mm travel, medium resolution, medium speed
X-LRT0750BL-BAE53C	Lead-screw driven, power-off brake, 750 mm travel, medium resolution, medium speed
X-LRT0750DL-AE53C	Lead-screw driven, 750 mm travel, coarse resolution, high speed
X-LRT0750DL-BAE53C	Lead-screw driven, power-off brake, 750 mm travel, coarse resolution, high speed
X-LRT0750HL-AE53C	Ball-screw driven, 750 mm travel, medium resolution, medium speed
X-LRT0750HL-BAE53C	Ball-screw driven, power-off brake, 750 mm travel, medium resolution, medium speed
X-LRT1000AL-AE53C	Lead-screw driven, 1000 mm travel, fine resolution, low speed
X-LRT1000BL-AE53C	Lead-screw driven, 1000 mm travel, medium resolution, medium speed
X-LRT1000BL-BAE53C	Lead-screw driven, power-off brake, 1000 mm travel, medium resolution, medium speed
X-LRT1000DL-AE53C	Lead-screw driven, 1000 mm travel, coarse resolution, high speed
X-LRT1000DL-BAE53C	Lead-screw driven, power-off brake, 1000 mm travel, coarse resolution, high speed
X-LRT1000HL-AE53C	Ball-screw driven, 1000 mm travel, medium resolution, medium speed
X-LRT1000HL-BAE53C	Ball-screw driven, power-off brake, 1000 mm travel, medium resolution, medium speed
X-LRT1500AL-AE53C	Lead-screw driven, 1500 mm travel, fine resolution, low speed
X-LRT1500BL-AE53C	Lead-screw driven, 1500 mm travel, medium resolution, medium speed
X-LRT1500BL-BAE53C	Lead-screw driven, power-off brake, 1500 mm travel, medium resolution, medium speed
X-LRT1500DL-AE53C	Lead-screw driven, 1500 mm travel, coarse resolution, high speed
X-LRT1500DL-BAE53C	Lead-screw driven, power-off brake, 1500 mm travel, coarse resolution, high speed

Model	Description
X-LRT0100AL-E08C	Lead-screw driven, 100 mm travel, fine resolution, low speed
X-LRT0100BL-E08C	Lead-screw driven, 100 mm travel, medium resolution, medium speed
X-LRT0100BL-BE08C	Lead-screw driven, power-off brake, 100 mm travel, medium resolution, medium speed
X-LRT0100DL-E08C	Lead-screw driven, 100 mm travel, coarse resolution, high speed
X-LRT0100DL-BE08C	Lead-screw driven, power-off brake, 100 mm travel, coarse resolution, high speed
X-LRT0100HL-E08C	Ball-screw driven, 100 mm travel, medium resolution, medium speed
X-LRT0100HL-BE08C	Ball-screw driven, power-off brake, 100 mm travel, medium resolution, medium speed
X-LRT0250AL-E08C	Lead-screw driven, 250 mm travel, fine resolution, low speed
X-LRT0250BL-E08C	Lead-screw driven, 250 mm travel, medium resolution, medium speed
X-LRT0250BL-BE08C	Lead-screw driven, power-off brake, 250 mm travel, medium resolution, medium speed
X-LRT0250DL-E08C	Lead-screw driven, 250 mm travel, coarse resolution, high speed
X-LRT0250DL-BE08C	Lead-screw driven, power-off brake, 250 mm travel, coarse resolution, high speed
X-LRT0250HL-E08C	Ball-screw driven, 250 mm travel, medium resolution, medium speed
X-LRT0250HL-BE08C	Ball-screw driven, power-off brake, 250 mm travel, medium resolution, medium speed
X-LRT0500AL-E08C	Lead-screw driven, 500 mm travel, fine resolution, low speed
X-LRT0500BL-E08C	Lead-screw driven, 500 mm travel, medium resolution, medium speed
X-LRT0500BL-BE08C	Lead-screw driven, power-off brake, 500 mm travel, medium resolution, medium speed
X-LRT0500DL-E08C	Lead-screw driven, 500 mm travel, coarse resolution, high speed
X-LRT0500DL-BE08C	Lead-screw driven, power-off brake, 500 mm travel, coarse resolution, high speed
X-LRT0500HL-E08C	Ball-screw driven, 500 mm travel, medium resolution, medium speed
X-LRT0500HL-BE08C	Ball-screw driven, power-off brake, 500 mm travel, medium resolution, medium speed
X-LRT0750AL-E08C	Lead-screw driven, 750 mm travel, fine resolution, low speed
X-LRT0750BL-E08C	Lead-screw driven, 750 mm travel, medium resolution, medium speed
X-LRT0750BL-BE08C	Lead-screw driven, power-off brake, 750 mm travel, medium resolution, medium speed
X-LRT0750DL-E08C	Lead-screw driven, 750 mm travel, coarse resolution, high speed
X-LRT0750DL-BE08C	Lead-screw driven, power-off brake, 750 mm travel, coarse resolution, high speed
X-LRT0750HL-E08C	Ball-screw driven, 750 mm travel, medium resolution, medium speed
X-LRT0750HL-BE08C	Ball-screw driven, power-off brake, 750 mm travel, medium resolution, medium speed
X-LRT1000AL-E08C	Lead-screw driven, 1000 mm travel, fine resolution, low speed
X-LRT1000BL-E08C	Lead-screw driven, 1000 mm travel, medium resolution, medium speed
X-LRT1000BL-BE08C	Lead-screw driven, power-off brake, 1000 mm travel, medium resolution, medium speed
X-LRT1000DL-E08C	Lead-screw driven, 1000 mm travel, coarse resolution, high speed
X-LRT1000DL-BE08C	Lead-screw driven, power-off brake, 1000 mm travel, coarse resolution, high speed
X-LRT1000HL-E08C	Ball-screw driven, 1000 mm travel, medium resolution, medium speed
X-LRT1000HL-BE08C	Ball-screw driven, power-off brake, 1000 mm travel, medium resolution, medium speed
X-LRT1500AL-E08C	Lead-screw driven, 1500 mm travel, fine resolution, low speed
X-LRT1500BL-E08C	Lead-screw driven, 1500 mm travel, medium resolution, medium speed
X-LRT1500BL-BE08C	Lead-screw driven, power-off brake, 1500 mm travel, medium resolution, medium speed
X-LRT1500DL-E08C	Lead-screw driven, 1500 mm travel, coarse resolution, high speed
X-LRT1500DL-BE08C	Lead-screw driven, power-off brake, 1500 mm travel, coarse resolution, high speed

Model	Description
X-LRT0100AL-C	Lead-screw driven, 100 mm travel, fine resolution, low speed
X-LRT0100BL-C	Lead-screw driven, 100 mm travel, medium resolution, medium speed
X-LRT0100DL-C	Lead-screw driven, 100 mm travel, coarse resolution, high speed
X-LRT0100HL-C	Ball-screw driven, 100 mm travel, medium resolution, medium speed
X-LRT0250AL-C	Lead-screw driven, 250 mm travel, fine resolution, low speed
X-LRT0250BL-C	Lead-screw driven, 250 mm travel, medium resolution, medium speed
X-LRT0250DL-C	Lead-screw driven, 250 mm travel, coarse resolution, high speed
X-LRT0250HL-C	Ball-screw driven, 250 mm travel, medium resolution, medium speed
X-LRT0500AL-C	Lead-screw driven, 500 mm travel, fine resolution, low speed
X-LRT0500BL-C	Lead-screw driven, 500 mm travel, medium resolution, medium speed
X-LRT0500DL-C	Lead-screw driven, 500 mm travel, coarse resolution, high speed
X-LRT0500HL-C	Ball-screw driven, 500 mm travel, medium resolution, medium speed
X-LRT0750AL-C	Lead-screw driven, 750 mm travel, fine resolution, low speed
X-LRT0750BL-C	Lead-screw driven, 750 mm travel, medium resolution, medium speed
X-LRT0750DL-C	Lead-screw driven, 750 mm travel, coarse resolution, high speed
X-LRT0750HL-C	Ball-screw driven, 750 mm travel, medium resolution, medium speed
X-LRT1000AL-C	Lead-screw driven, 1000 mm travel, fine resolution, low speed
X-LRT1000BL-C	Lead-screw driven, 1000 mm travel, medium resolution, medium speed
X-LRT1000DL-C	Lead-screw driven, 1000 mm travel, coarse resolution, high speed
X-LRT1000HL-C	Ball-screw driven, 1000 mm travel, medium resolution, medium speed
X-LRT1500AL-C	Lead-screw driven, 1500 mm travel, fine resolution, low speed
X-LRT1500BL-C	Lead-screw driven, 1500 mm travel, medium resolution, medium speed
X-LRT1500DL-C	Lead-screw driven, 1500 mm travel, coarse resolution, high speed

Model	Description
LRT0100AL-AE53CT10A	Lead-screw driven, 100 mm travel, fine resolution, low speed
LRT0100BL-AE53CT10A	Lead-screw driven, 100 mm travel, medium resolution, medium speed
LRT0100BL-BAE53CT10A	Lead-screw driven, power-off brake, 100 mm travel, medium resolution, medium speed
LRT0100DL-AE53CT10A	Lead-screw driven, 100 mm travel, coarse resolution, high speed
LRT0100DL-BAE53CT10A	Lead-screw driven, power-off brake, 100 mm travel, coarse resolution, high speed
LRT0100HL-AE53CT10A	Ball-screw driven, 100 mm travel, medium resolution, medium speed
LRT0100HL-BAE53CT10A	Ball-screw driven, power-off brake, 100 mm travel, medium resolution, medium speed
LRT0250AL-AE53CT10A	Lead-screw driven, 250 mm travel, fine resolution, low speed
LRT0250BL-AE53CT10A	Lead-screw driven, 250 mm travel, medium resolution, medium speed
LRT0250BL-BAE53CT10A	Lead-screw driven, power-off brake, 250 mm travel, medium resolution, medium speed
LRT0250DL-AE53CT10A	Lead-screw driven, 250 mm travel, coarse resolution, high speed
LRT0250DL-BAE53CT10A	Lead-screw driven, power-off brake, 250 mm travel, coarse resolution, high speed
LRT0250HL-AE53CT10A	Ball-screw driven, 250 mm travel, medium resolution, medium speed
LRT0250HL-BAE53CT10A	Ball-screw driven, power-off brake, 250 mm travel, medium resolution, medium speed
LRT0500AL-AE53CT10A	Lead-screw driven, 500 mm travel, fine resolution, low speed
LRT0500BL-AE53CT10A	Lead-screw driven, 500 mm travel, medium resolution, medium speed
LRT0500BL-BAE53CT10A	Lead-screw driven, power-off brake, 500 mm travel, medium resolution, medium speed
LRT0500DL-AE53CT10A	Lead-screw driven, 500 mm travel, coarse resolution, high speed
LRT0500DL-BAE53CT10A	Lead-screw driven, power-off brake, 500 mm travel, coarse resolution, high speed
LRT0500HL-AE53CT10A	Ball-screw driven, 500 mm travel, medium resolution, medium speed
LRT0500HL-BAE53CT10A	Ball-screw driven, power-off brake, 500 mm travel, medium resolution, medium speed
LRT0750AL-AE53CT10A	Lead-screw driven, 750 mm travel, fine resolution, low speed
LRT0750BL-AE53CT10A	Lead-screw driven, 750 mm travel, medium resolution, medium speed
LRT0750BL-BAE53CT10A	Lead-screw driven, power-off brake, 750 mm travel, medium resolution, medium speed
LRT0750DL-AE53CT10A	Lead-screw driven, 750 mm travel, coarse resolution, high speed
LRT0750DL-BAE53CT10A	Lead-screw driven, power-off brake, 750 mm travel, coarse resolution, high speed
LRT0750HL-AE53CT10A	Ball-screw driven, 750 mm travel, medium resolution, medium speed
LRT0750HL-BAE53CT10A	Ball-screw driven, power-off brake, 750 mm travel, medium resolution, medium speed
LRT1000AL-AE53CT10A	Lead-screw driven, 1000 mm travel, fine resolution, low speed
LRT1000BL-AE53CT10A	Lead-screw driven, 1000 mm travel, medium resolution, medium speed
LRT1000BL-BAE53CT10A	Lead-screw driven, power-off brake, 1000 mm travel, medium resolution, medium speed
LRT1000DL-AE53CT10A	Lead-screw driven, 1000 mm travel, coarse resolution, high speed
LRT1000DL-BAE53CT10A	Lead-screw driven, power-off brake, 1000 mm travel, coarse resolution, high speed
LRT1000HL-AE53CT10A	Ball-screw driven, 1000 mm travel, medium resolution, medium speed
LRT1000HL-BAE53CT10A	Ball-screw driven, power-off brake, 1000 mm travel, medium resolution, medium speed
LRT1500AL-AE53CT10A	Lead-screw driven, 1500 mm travel, fine resolution, low speed
LRT1500BL-AE53CT10A	Lead-screw driven, 1500 mm travel, medium resolution, medium speed
LRT1500BL-BAE53CT10A	Lead-screw driven, power-off brake, 1500 mm travel, medium resolution, medium speed
LRT1500DL-AE53CT10A	Lead-screw driven, 1500 mm travel, coarse resolution, high speed
LRT1500DL-BAE53CT10A	Lead-screw driven, power-off brake, 1500 mm travel, coarse resolution, high speed

Model	Description
LRT0100AL-E08CT3A	Lead-screw driven, 100 mm travel, fine resolution, low speed
LRT0100BL-E08CT3A	Lead-screw driven, 100 mm travel, medium resolution, medium speed
LRT0100BL-BE08CT10A	Lead-screw driven, power-off brake, 100 mm travel, medium resolution, medium speed
LRT0100DL-E08CT3A	Lead-screw driven, 100 mm travel, coarse resolution, high speed
LRT0100DL-BE08CT10A	Lead-screw driven, power-off brake, 100 mm travel, coarse resolution, high speed
LRT0100HL-E08CT3A	Ball-screw driven, 100 mm travel, medium resolution, medium speed
LRT0100HL-BE08CT10A	Ball-screw driven, power-off brake, 100 mm travel, medium resolution, medium speed
LRT0250AL-E08CT3A	Lead-screw driven, 250 mm travel, fine resolution, low speed
LRT0250BL-E08CT3A	Lead-screw driven, 250 mm travel, medium resolution, medium speed
LRT0250BL-BE08CT10A	Lead-screw driven, power-off brake, 250 mm travel, medium resolution, medium speed
LRT0250DL-E08CT3A	Lead-screw driven, 250 mm travel, coarse resolution, high speed
LRT0250DL-BE08CT10A	Lead-screw driven, power-off brake, 250 mm travel, coarse resolution, high speed
LRT0250HL-E08CT3A	Ball-screw driven, 250 mm travel, medium resolution, medium speed
LRT0250HL-BE08CT10A	Ball-screw driven, power-off brake, 250 mm travel, medium resolution, medium speed
LRT0500AL-E08CT3A	Lead-screw driven, 500 mm travel, fine resolution, low speed
LRT0500BL-E08CT3A	Lead-screw driven, 500 mm travel, medium resolution, medium speed
LRT0500BL-BE08CT10A	Lead-screw driven, power-off brake, 500 mm travel, medium resolution, medium speed
LRT0500DL-E08CT3A	Lead-screw driven, 500 mm travel, coarse resolution, high speed
LRT0500DL-BE08CT10A	Lead-screw driven, power-off brake, 500 mm travel, coarse resolution, high speed
LRT0500HL-E08CT3A	Ball-screw driven, 500 mm travel, medium resolution, medium speed
LRT0500HL-BE08CT10A	Ball-screw driven, power-off brake, 500 mm travel, medium resolution, medium speed
LRT0750AL-E08CT3A	Lead-screw driven, 750 mm travel, fine resolution, low speed
LRT0750BL-E08CT3A	Lead-screw driven, 750 mm travel, medium resolution, medium speed
LRT0750BL-BE08CT10A	Lead-screw driven, power-off brake, 750 mm travel, medium resolution, medium speed
LRT0750DL-E08CT3A	Lead-screw driven, 750 mm travel, coarse resolution, high speed
LRT0750DL-BE08CT10A	Lead-screw driven, power-off brake, 750 mm travel, coarse resolution, high speed
LRT0750HL-E08CT3A	Ball-screw driven, 750 mm travel, medium resolution, medium speed
LRT0750HL-BE08CT10A	Ball-screw driven, power-off brake, 750 mm travel, medium resolution, medium speed
LRT1000AL-E08CT3A	Lead-screw driven, 1000 mm travel, fine resolution, low speed
LRT1000BL-E08CT3A	Lead-screw driven, 1000 mm travel, medium resolution, medium speed
LRT1000BL-BE08CT10A	Lead-screw driven, power-off brake, 1000 mm travel, medium resolution, medium speed
LRT1000DL-E08CT3A	Lead-screw driven, 1000 mm travel, coarse resolution, high speed
LRT1000DL-BE08CT10A	Lead-screw driven, power-off brake, 1000 mm travel, coarse resolution, high speed
LRT1000HL-E08CT3A	Ball-screw driven, 1000 mm travel, medium resolution, medium speed
LRT1000HL-BE08CT10A	Ball-screw driven, power-off brake, 1000 mm travel, medium resolution, medium speed
LRT1500AL-E08CT3A	Lead-screw driven, 1500 mm travel, fine resolution, low speed
LRT1500BL-E08CT3A	Lead-screw driven, 1500 mm travel, medium resolution, medium speed
LRT1500BL-BE08CT10A	Lead-screw driven, power-off brake, 1500 mm travel, medium resolution, medium speed
LRT1500DL-E08CT3A	Lead-screw driven, 1500 mm travel, coarse resolution, high speed
LRT1500DL-BE08CT10A	Lead-screw driven, power-off brake, 1500 mm travel, coarse resolution, high speed

Model	Description
LRT0100AL-CT3A	Lead-screw driven, 100 mm travel, fine resolution, low speed
LRT0100BL-CT3A	Lead-screw driven, 100 mm travel, medium resolution, medium speed
LRT0100DL-CT3A	Lead-screw driven, 100 mm travel, coarse resolution, high speed
LRT0100HL-CT3A	Ball-screw driven, 100 mm travel, medium resolution, medium speed
LRT0250AL-CT3A	Lead-screw driven, 250 mm travel, fine resolution, low speed
LRT0250BL-CT3A	Lead-screw driven, 250 mm travel, medium resolution, medium speed
LRT0250DL-CT3A	Lead-screw driven, 250 mm travel, coarse resolution, high speed
LRT0250HL-CT3A	Ball-screw driven, 250 mm travel, medium resolution, medium speed
LRT0500AL-CT3A	Lead-screw driven, 500 mm travel, fine resolution, low speed
LRT0500BL-CT3A	Lead-screw driven, 500 mm travel, medium resolution, medium speed
LRT0500DL-CT3A	Lead-screw driven, 500 mm travel, coarse resolution, high speed
LRT0500HL-CT3A	Ball-screw driven, 500 mm travel, medium resolution, medium speed
LRT0750AL-CT3A	Lead-screw driven, 750 mm travel, fine resolution, low speed
LRT0750BL-CT3A	Lead-screw driven, 750 mm travel, medium resolution, medium speed
LRT0750DL-CT3A	Lead-screw driven, 750 mm travel, coarse resolution, high speed
LRT0750HL-CT3A	Ball-screw driven, 750 mm travel, medium resolution, medium speed
LRT1000AL-CT3A	Lead-screw driven, 1000 mm travel, fine resolution, low speed
LRT1000BL-CT3A	Lead-screw driven, 1000 mm travel, medium resolution, medium speed
LRT1000DL-CT3A	Lead-screw driven, 1000 mm travel, coarse resolution, high speed
LRT1000HL-CT3A	Ball-screw driven, 1000 mm travel, medium resolution, medium speed
LRT1500AL-CT3A	Lead-screw driven, 1500 mm travel, fine resolution, low speed
LRT1500BL-CT3A	Lead-screw driven, 1500 mm travel, medium resolution, medium speed
LRT1500DL-CT3A	Lead-screw driven, 1500 mm travel, coarse resolution, high speed

LRT Family: High Load, Screw Drive

Spec

X-LRT-AEC Series: High load, high accuracy linear stages with built-in controllers, linear encoders, dust covers, and optional brake

X-LRT-EC Series: High load linear stages with built-in controllers, motor encoders, dust covers, and optional brake

X-LRT-C Series: High load, motorized linear stages with built-in controllers and dust covers

LRT-AEC Series: High load, high accuracy motorized linear stages with built-in linear encoders, dust covers, and optional brake

LRT-EC Series: High load motorized linear stages with built-in motor encoders, dust covers, and optional brake

LRT-C Series: High load motorized linear stages with dust covers

Related products

AY/AYN Series: Honeycomb table air suspension vibration isolator

AP Series: Pneumatic vibration isolation system

LDA Family : Compact, Linear Motor

RHS Series: Honeycomb optical table
