Spec
| Model | Controller | Encoder | Motor | Vacuum Rating |
|---|---|---|---|---|
| X-NA-E Micro linear actuators with built-in controllers and motor encoders | √ | Motor/rotary | Stepper Motor | – |
| X-NA Micro linear actuators with built-in controllers | √ | – | Stepper Motor | – |
| T-NA Micro linear actuators with built-in controllers | √ | – | Stepper Motor | – |
| NA Electric linear actuators | – | – | Stepper Motor | – |
| X-NA-SV2 High vacuum micro linear actuators with built-in controllers | √ | – | Stepper Motor | High Vacuum (10-6 torr) |
| X-NA-SV1 Low vacuum micro linear actuators with built-in controllers | √ | – | Stepper Motor | Low Vaccum (10-3 torr) |
X-NA-E Series: Micro linear actuators with built-in controllers and motor encoders
- 25 and 50 mm travel
- Up to 30 mm/s speed and up to 25 N thrust
- Hardened ball-tip (removable so you can use the built-in threaded tip or a flat tip)
- Designed to replace standard micrometer heads on manual translation stages
- Built-in, 250 CPR, motor encoder provides slip/stall detection and recovery
- Built-in controller; daisy-chains with other Zaber products
| Model | Description |
|---|---|
| X-NA08A25-E09 | 25 mm travel, plus manual control |
| X-NA08A25-SE09 | 25 mm travel |
| X-NA08A50-E09 | 50 mm travel, plus manual control |
| X-NA08A50-SE09 | 50 mm travel |
X-NA Series: Micro linear actuators with built-in controllers
- 5 and 50 mm travel
- Up to 30 mm/s speed and up to 25 N thrust
- Hardened ball-tip (removable so you can use the built-in threaded tip or a flat tip)
- Designed to replace standard micrometer heads on manual translation stages
- Built-in controller; daisy-chains with other Zaber products
| Model | Description |
|---|---|
| X-NA08A25 | 25 mm travel, plus manual control |
| X-NA08A25-S | 25 mm travel |
| X-NA08A50 | 50 mm travel, plus manual control |
| X-NA08A50-S | 50 mm travel |

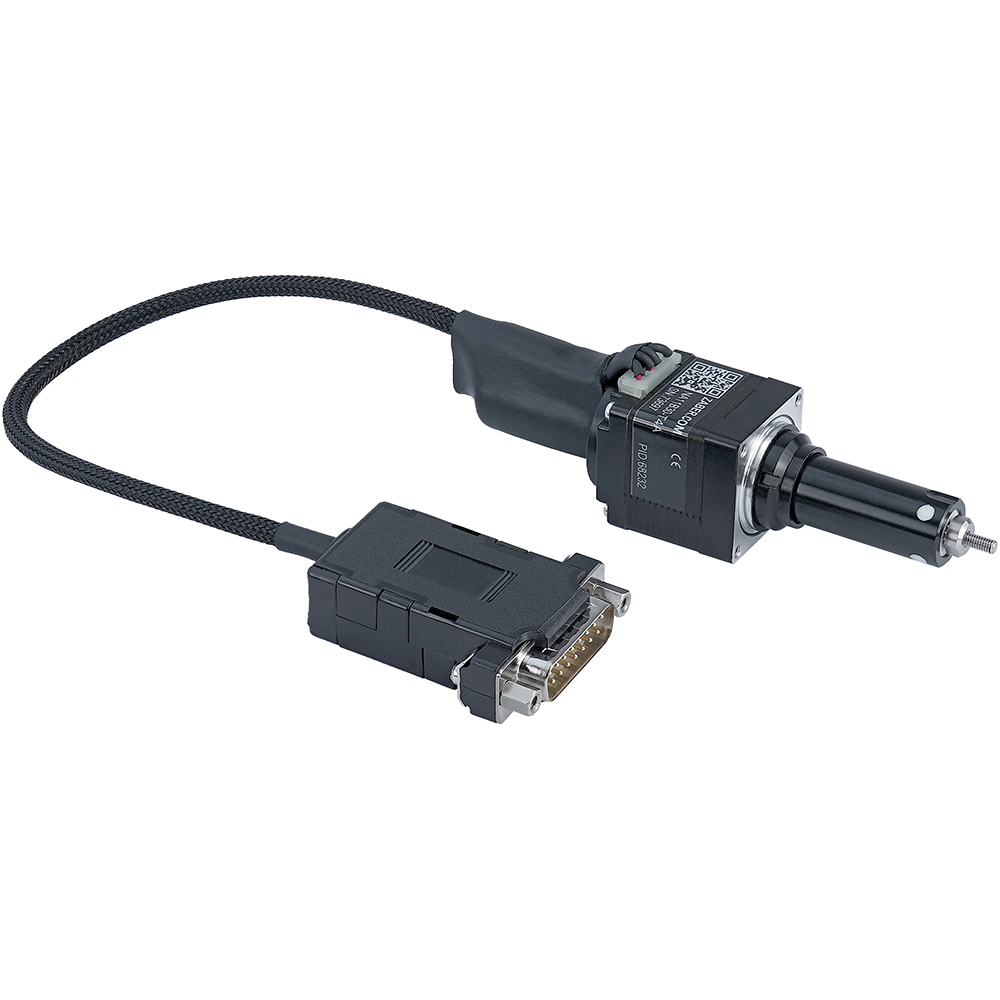

NA Series: Electric linear actuators
- 16, 30, and 60 mm travel
- Threaded tip for multiple mounting options
- Available in several sizes for a variety of thrusts and speeds
- Designed for use with an X-MCC Series stepper motor controller or any 2-phase stepper motor controller
- With AutoDetect, the X-MCC controller configures its settings automatically for the connected peripheral
- Custom versions available
| Model | Description |
|---|---|
| NA08A16-T4A | NEMA size 08, 16 mm travel, 19 N maximum continuous thrust |
| NA08B16-T4A | NEMA size 08, 16 mm travel, 19 N maximum continuous thrust |
| NA08B30-T4A | NEMA size 08, 30 mm travel, 19 N maximum continuous thrust |
| NA11B16-T4A | NEMA size 11, 16 mm travel, 58 N maximum continuous thrust |
| NA11B30-T4A | NEMA size 11, 30 mm travel, 58 N maximum continuous thrust |
| NA11B60-T4A | NEMA size 11, 60 mm travel, 58 N maximum continuous thrust |
| NA14B16-T4A | NEMA size 14, 16 mm travel, 225 N maximum continuous thrust (EOL) |
| NA14B30-T4A | NEMA size 14, 30 mm travel, 225 N maximum continuous thrust |
| NA14B60-T4A | NEMA size 14, 60 mm travel, 225 N maximum continuous thrust |
| NA23C60-T4A | NEMA size 23, 60 mm travel, 700 N maximum continuous thrust |
| NA34C60-T4A | NEMA size 34, 60 mm travel, 1300 N maximum continuous thrust |

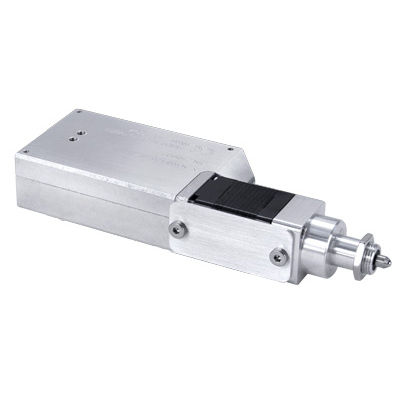

X-NA-SV2 Series: High vacuum micro linear actuators with built-in controllers
- Vacuum compatible to 10-6 Torr
- 25 and 50 mm travel
- Up to 30 mm/s speed and up to 25 N thrust
- Our most compact, precise and robust actuator
- Hardened ball-tip (removable so you can use the built-in threaded tip or a flat tip)
- Built-in controller; daisy chains with other X-series devices inside vacuum chamber
- Designed to replace standard micrometer heads on manual translation stages
| Model | Description |
|---|---|
| X-NA08A25-SV2 | 25 mm travel |
| X-NA08A50-SV2 | 50 mm travel |
X-NA-SV1 Series: Low vacuum micro linear actuators with built-in controllers
- Vacuum compatible to 10-3 Torr
- 25 and 50 mm travel
- Up to 30 mm/s speed and up to 25 N thrust
- Hardened ball-tip (removable so you can use the built-in threaded tip or a flat tip)
- Our most compact, precise and robust actuator
- Designed to replace standard micrometer heads on manual translation stages
- Built-in controller; daisy chains with other X-series devices inside vacuum chamber
| Model | Description |
|---|---|
| X-NA08A25-SV1 | 25 mm travel |
| X-NA08A50-SV1 | 50 mm travel |
