Plate Holders

Name: Plate Holders
SKU: 4285
Availability: InStock

Dual type design: the front side is for flexible sheet plate, while the back side is for thick optics.

◆ Also available for British system.(General products for Metric system)

◆ Custom design is available on request

Model

Clear

Category : Optical Mounts / 光學鏡架 Tags : Mechanical Components, Optical mounts, Opto Mechanics

Specifications

Spec

Plate Holders

Model	Description	Download
DPH01	Holding Size: 100*125 (mm²)

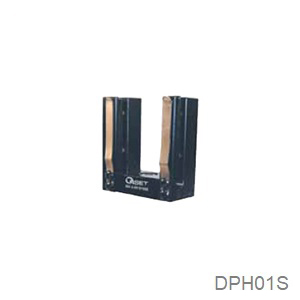

DPH01S	Holding Size: 50*50 (mm²)

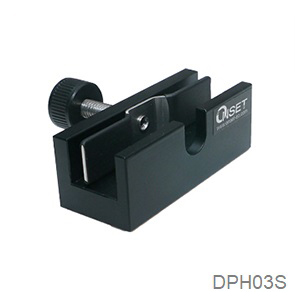

DPH03S	Holding Thickness: 0~10 (mm)
DPH04S	Holding Size: 0-10 (mm)

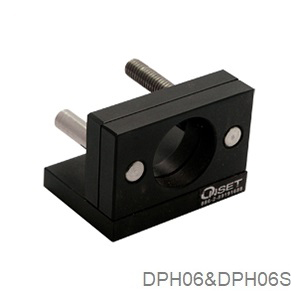

DPH06S	Holding Size: 25*25 (mm²)
DPH06	Holding Size: 50*50 (mm²)

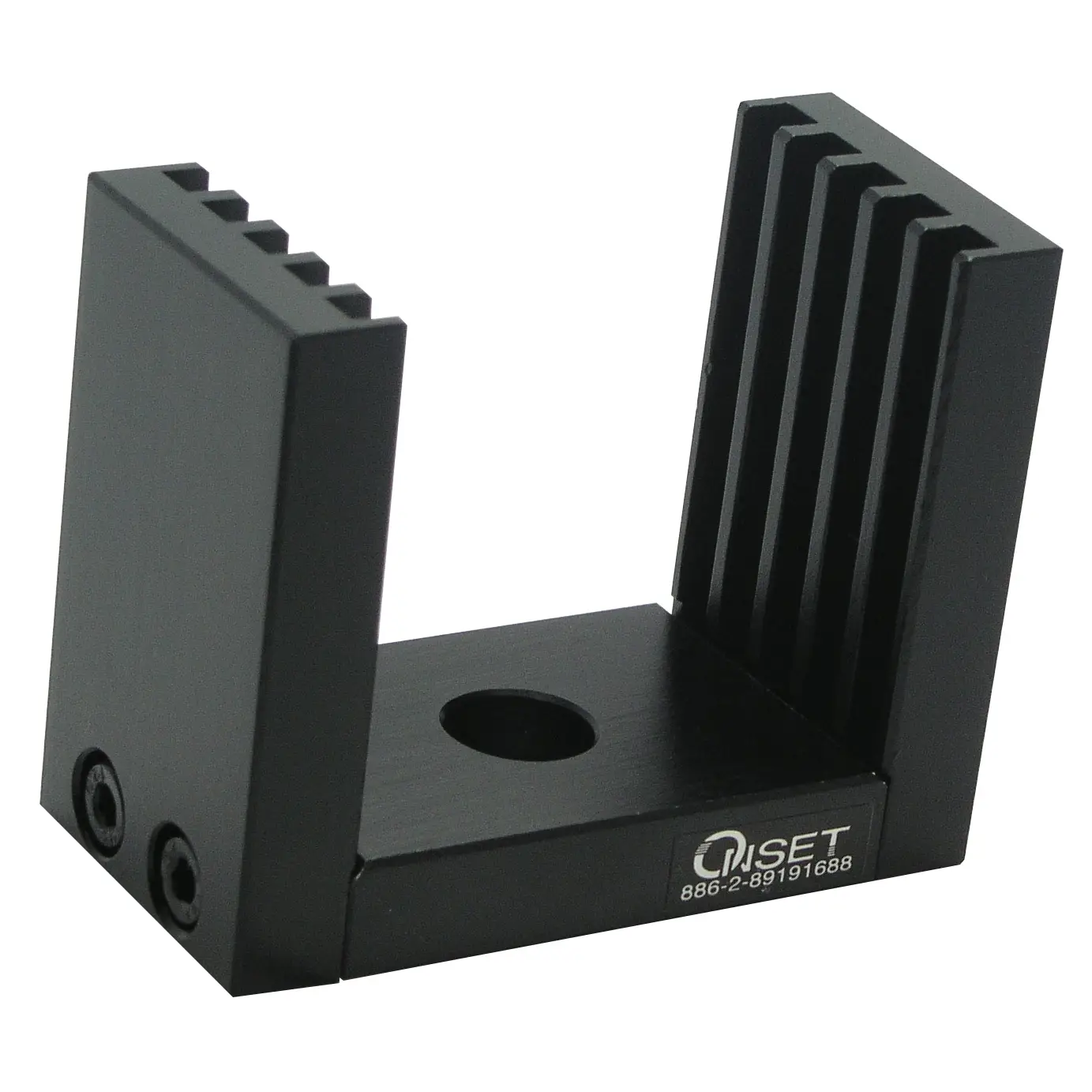

DFQ02	Filter holder for 50 * 50 (mm²), t: 4 (mm), 5 pcs
