Spec
Posts and Holders
EP01N~EP06N – Post and holder (12mm-Dia)
- Spring-loaded design supports the post, even when the locking screw is loosened.
- All post holders are precisely bored, providing full two-line contact, to minimize wobble.
EP02R~EP06R – Rotary Post and Holder (12mm-Dia)
- Spring-loaded design supports the post, even when the locking screw is loosened.
- All post holders are precisely bored, providing full two-line contact, to minimize wobble.
- Precision bearing design provides smooth rotation to arbitrary directions.
EP01~EP06 – Post and holder (20mm-Dia)
- Spring-loaded design supports the post, even when the locking screw is loosened.
- All post holders are precisely bored, providing full two-line contact, to minimize wobb
Rods

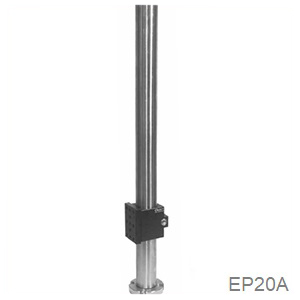

EP20A
- Stainless steel support heavy load with high stability.
- The rod clamp can be positioned at any height with high-precision, long bored interior that minimizes wobbles and chatter.
EB01
- Free rotation to any direction
EB01S
- Free rotation to any direction.
- Beam direction is Fine adjusted by two precision mirror mounts.
| Model | Description | Download |
|---|---|---|
| EP20A | Dia.: Φ 38 mm, Length: 500mm |    |
| EPA20A | (大型支撐桿及微調滑座) | |
| ECAP32 | (粗微調滑座) | |
| EB01 | Beam Steerer | |
| EB01S | Beam Steerer included two mirror mounts | |
Collar and Construction Accessories
COLLARS
Lock to specific post height.
Cross-Post Adaptor
- EC01 and EC01S mount two posts at 90° with respect to each other.
- EC02 can hold two posts at an arbitrary angle with respect to each other.
Universal Clamps
Precision bearing design provides high stability and free rotation to arbitrary angle.
| Model | Description | Download |
|---|---|---|
| EP01C | Collars, Φ12mm | |
| EP02C | Collars, Φ20mm | |
| EP01D | Collars | |
| EC01 | Cross-Post Adaptor | |
| EC01S | Cross-Post Adaptor | |
| EC02 | Cross-Post Adaptor | |
| EC01-1220 | Cross-Post Adaptor | |
| EU01 | Universal Clamp | |
| EU02 | Universal Clamp | |
| EU03 | Universal Clamp | |
