Name: Rotation Stages
SKU: 5920
Availability: InStock

Question 1

Precision Rotary Stage

Accepted Answer

Precision recirculating unit equipped with high-loading roller bearing provides smooth and accurate motion.
Scale marked on the side with a vernier on the body measures the angular position with a resolution of 2’

ModelDescriptionDownloadCR01ATravel Range:360∘ coarse, 20∘ fine, Platform Size:φ82 mm CR03STravel Range:4∘, Platform Size:φ60 mm

Question 2

Rotary Stage

Accepted Answer

ModelDescriptionDownloadCR04CTravel Range:360∘ coarse, Platform Size:φ55 mm CR04C-PTravel Range:360∘ coarse, Platform Size:φ55 mm , w/ micrometer CR04C-TTravel Range: θ=360∘ T=2∘, Platform Size:φ55 mm , w/ added tilt mechanism CR04C-PTTravel Range: θ=360∘ T=2∘, Platform Size:φ55 mm , w/ micrometer & added tilt mechanism CR04DTravel Range:360∘ coarse, Holding Size:φ25 mm CR04D-PTravel Range:360∘ coarse, Holding Size:φ25 mm , w/ micrometer CR04D-TTravel Range:360∘ coarse, Holding Size:φ25 mm, w/ added tilt mechanism CR04D-PTTravel Range:360∘ coarse, Holding Size:φ25 mm, w/ micrometer & added tilt mechanism

Model	Description	Download
CR01A	Travel Range:360∘ coarse, 20∘ fine, Platform Size:φ82 mm
CR03S	Travel Range:4∘, Platform Size:φ60 mm

Model	Description	Download

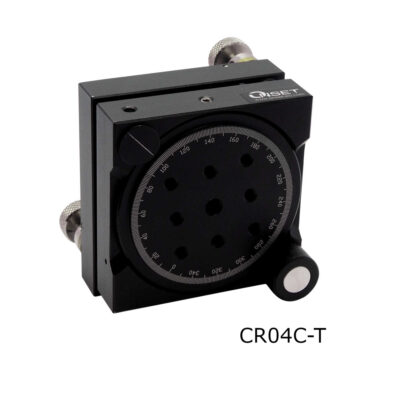

CR04C	Travel Range:360∘ coarse, Platform Size:φ55 mm
CR04C-P	Travel Range:360∘ coarse, Platform Size:φ55 mm , w/ micrometer
CR04C-T	Travel Range: θ=360∘ T=2∘, Platform Size:φ55 mm , w/ added tilt mechanism
CR04C-PT	Travel Range: θ=360∘ T=2∘, Platform Size:φ55 mm , w/ micrometer & added tilt mechanism
CR04D	Travel Range:360∘ coarse, Holding Size:φ25 mm
CR04D-P	Travel Range:360∘ coarse, Holding Size:φ25 mm , w/ micrometer
CR04D-T	Travel Range:360∘ coarse, Holding Size:φ25 mm, w/ added tilt mechanism
CR04D-PT	Travel Range:360∘ coarse, Holding Size:φ25 mm, w/ micrometer & added tilt mechanism

Rotation Stages

Spec

Precision Rotary Stage

Rotary Stage
