Vertical Stages


  • Precision Vertical Linear Stages
  • Lab Jacks

◆  Also available for British system.(General products for Metric system)

◆  Custom design is available on request

Spec

Precision Vertical Linear Stages
ModelDescriptionDownload
CV01ATravel Range:13mm, Platform Size:44×44 mm²
CV02ATravel Range:5mm, Platform Size:50×64 mm²
Lab Jacks

Onset provides precision-driven mechanisms to function lab jacks: Dual-pantograph for CJ01 and CJ03.

ModelDescriptionDownload
CJ01Travel Range:40mm, Platform Size:110×83 mm²

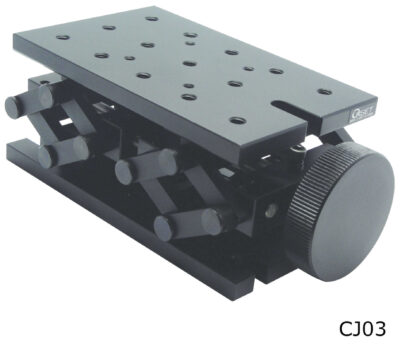

CJ03Travel Range:25mm, Platform Size:130×80 mm²
CJ05Travel Range:75mm, Platform Size:140×90 mm²
