XY Series: XY Systems

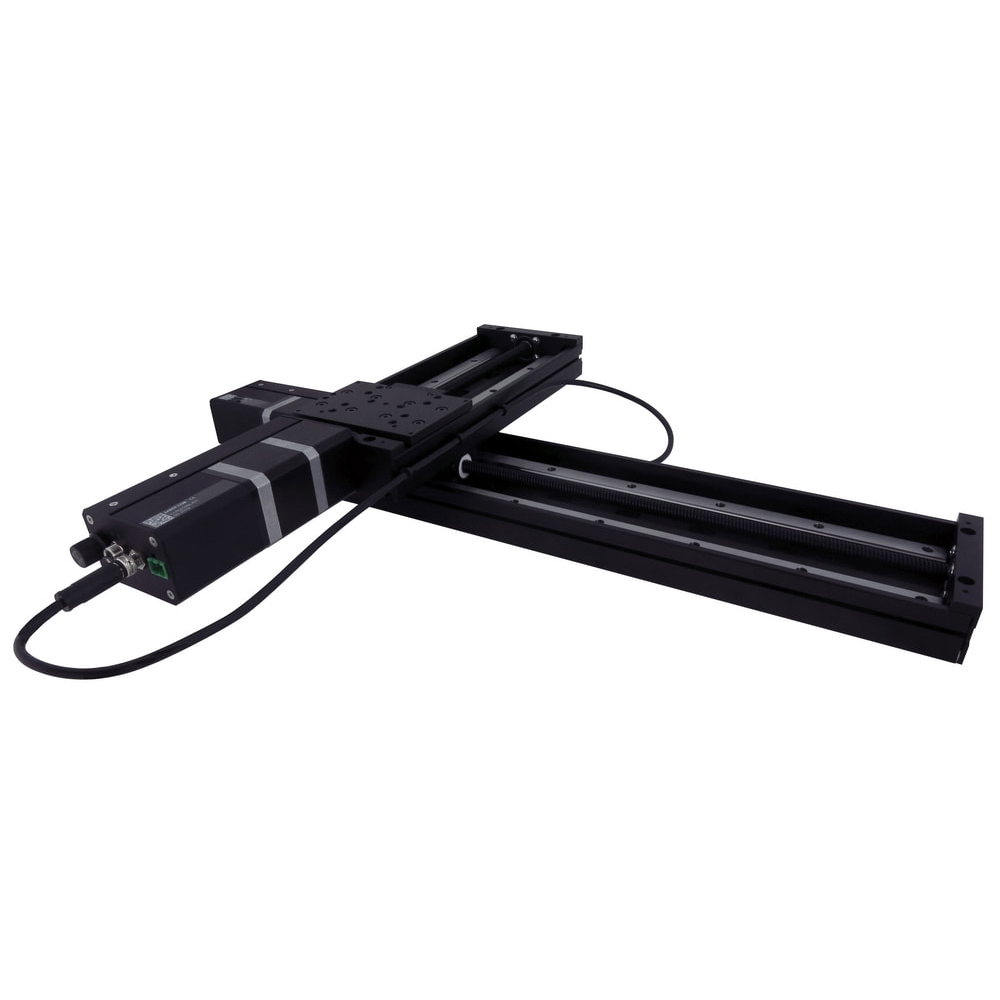

X-LRQ-E Linear Stages:

• 75 to 600 mm travel
• Up to 100 kg max payload
• Up to 840 mm/s and up to 100 N thrust
• Inline and parallel drive configurations
• Requires AB164 angle bracket for Z axis (vertical) mounting
• Requires AP165 adaptor plate for XY systems outfitted with parallel mount drives
• Can be combined directly with other Zaber stages
• Comes with motor encoders

X-LSQ Linear Stages:

• 75 to 600 mm travel
• 50 kg max payload
• Up to 1 m/s speed and 100 N max thrust (vertical axis payload)
• Mounts directly in XY and XYZ
• Can be combined directly with T-LS stages
• Available with motor encoders

X-LRM-E Linear Stages:

• 25 to 200 mm travel
• Up to 50 kg max payload
• Hardened steel construction and integrated recirculating ball bearing guide provide exceptional stiffness and thermal stability
• Up to 8 µm accuracy and 50 nm resolution
• Mounts directly in XY
• Can be combined directly with other Zaber stages
• Comes with motor encoders

X-LSM Miniature Linear Stages:

• 25 to 200 mm travel
• 25 kg load capacity
• 25 N max thrust (vertical axis payload)
• Mounts directly in XY and XYZ
• Our most compact motorized stage with built-in controllers
• Available with motor encoders

X-LRT-C High-load Linear Stages:

• 100, 250, 500, 750, 1000 mm travel
• 500 kg load capacity
• High cantilever stiffness
• Requires AB151 angle bracket for Z axis (vertical) mounting
• Includes stainless steel dust covers
• Can be combined directly with other Zaber stages
• Available with motor encoders
